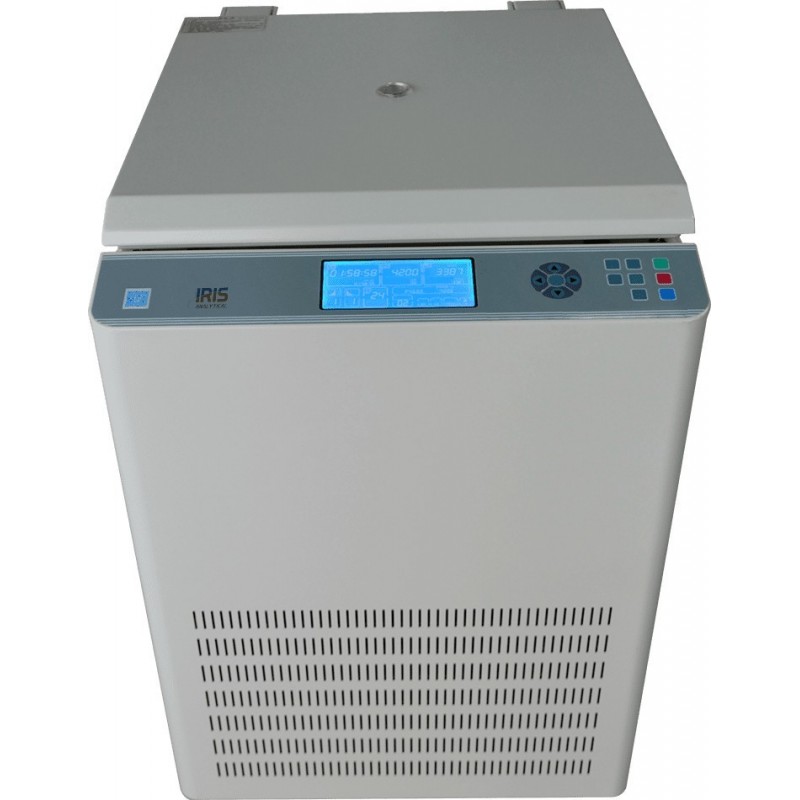

Floor Standing High Speed Refrigerated Centrifuge IFHRC-1100 comes with double electronic door lock and high quality hydraulic rod, food-grade integrated silicone sealing ring features. Suitable for clinical medicine, biochemistry, genetic engineering, immunological applications.
Floor Standing High Speed Refrigerated Centrifuge IFHRC-1100 comes with double electronic door lock and high quality hydraulic rod, food-grade integrated silicone sealing ring features. Suitable for clinical medicine, biochemistry, genetic engineering, immunological applications. Features with touch screen with multi-functional knob combination parameters. Available with 9 profiles for acceleration and for deceleration with high efficiency. For safety we introduced electronic door lock function and, imbalance detection, over-speed protection, inching function, short-spin function. The IFHRC-1000 is sealed and can function at high RPM owing to the ability to reduce the heat produced by higher rotation speeds worked under temperature range -20℃ to 40℃ and accommodates angle rotor.
Accessories
Rotors
|
Rotor |
Rotor capacity |
Max speed |
Max RCF |
|
Horizontal Rotor 1 |
24×0.2ml |
18000rpm |
18824× g |
|
Horizontal Rotor 2 |
24×0.5ml |
18000rpm |
23846× g |
|
Horizontal Rotor 3 |
12×2ml |
18000rpm |
23182× g |
|
Horizontal Rotor 4 |
24×2ml |
15000rpm |
20049× g |
|
Horizontal Rotor 5 |
12×5ml |
16000rpm |
17459× g |
|
Horizontal Rotor 6 |
12×10ml |
12000rpm |
13314× g |
|
Horizontal Rotor 7 |
8x15ml |
12000rpm |
14107× g |
|
Horizontal Rotor 8 |
48x05.ml |
14000rpm |
24104× g |
|
Horizontal Rotor 9 |
36x1.5ml/2.2ml |
15000rpm |
20376× g |
|
Horizontal Rotor 10 |
6x50ml |
11000rpm |
13528× g |
|
Horizontal Rotor 11 |
6x100ml |
10000rpm |
10084× g |
|
Horizontal Rotor 12 |
32x0.2ml |
14000rpm |
13367× g |
|
Angel Rotor 13 |
96 holes x2 |
4000rpm |
1932× g |
Data sheet
Designed digital LCD screen to show various information including running time, speed, RCF
Adopt the pre-cooling function with chamber temperature +4?
Energy efficient AC motor
Set timer up to 1 min to 1 hour 99 min 59 sec
Design with drainage hole and water box to remove condense water
Protective electronic with lock door, electric door with imbalance protection to provide more protection and safety along with automatic balancing without the need for trimming
Provide the system speed safety and protection by overcome speed obstacle by introducing over speed protection
User can set the RCF, time, rotating speed manually
User can changes the parameters during the running process
Available with 9 profile for acceleration and 9 for deceleration, high efficiency
Centrifugal chamber are constructed with stain less steel
Designed with air exhaust temperature and low noise compressor
Designed with automatic identification turn
Turned to use memory function, turned to the service life of the machine will alarm prompt, prevent the security hidden danger
Equipped with run start timing and starts timing modes to set the speed as an optional accessories
Rotors and adaptors are available as an optional accessories
| Model | IFHRC-1100 | IFHRC-1200 |
| Shaking Speed | 18000 rpm | 23000 rpm |
| RCF Speed | 23846×g | 33097×g |
| Capacity | 24×0.2ml /0.5ml /2ml, 12x2ml /5ml/7ml/10ml/2.2ml, 48x0.5ml, 36×1.5ml/2ml, 8×4×0.2ml(PCR special rotor?, 8x15ml, 6x50ml/100ml. | 32x0.2ml, 24×0.2ml /0.5ml /2ml, 12x2ml /5ml/7ml/10ml/2.2ml, 48x0.5ml; 36×1.5ml/2ml, 8×4×0.2ml(PCR special rotor, 8x15ml,6x50ml/100ml/250ml, 96holes×4?ELISA Plate? |
| Temperature Range | -20°C to +40°C | |
| Temperature accuracy | ±2°C | |
| Revolution/rpm | ±100 rpm | |
| Materials | Stainless steel centrifugal chamber | |
| Display | LCD | |
| Optional Rotor/ Adaptor | 12 angle rotor and 1 horizontal rotor | 15 angle rotor and 1 horizontal rotor |
| Time Range | 1 min to 99 h 99 min 59 s | |
| Power Consumption | 2.0 KVA | 2.2 KVA |
| Dimension | 660x500x855 mm | |
| Weight | 69 kg | |
| Electrical Requirement | AC 220V 50Hz | |
| Catalogue No. | 1402850502 | 1402851002 |
