Hydrophilic Nylon membranes are suitable for filtering aqueous solutions and most organic solvents. It is ideal for HPLC, GC or dissolution sample analysis and widely used in most biological preparations, Electric semiconductor, industrial water filtration, chemicals filtration, drinks filtration.

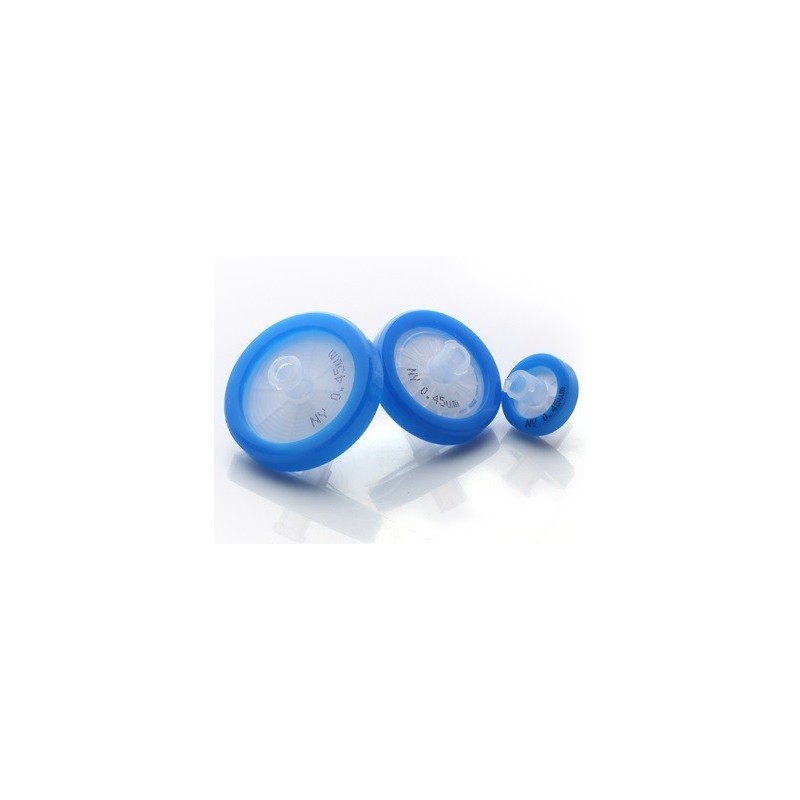

Iris Syringe Filters are used for small volume filtration of liquids, gas and other material-specific applications. They are made of extractable free virgin polypropylene housings with female luer lock and male luer slip fittings.
New sealing ring design makes itself for high operating pressure and faster filtration. They are produced to exceptional quality standards and eliminate common problems such as leaks and filter ‘blow off’. Colour ring helps in identifying membrane type inside easily.
These syringe filters are ideal for applications in pharmaceutical, environmental, biotechnology, food, beverage and agricultural testing laboratories, used in industries like bioscience, pharmacy, microelectronics, chemistry, food & beverage, etc.
Hydrophilic Nylon membranes are suitable for filtering aqueous solutions and most organic solvents. It is ideal for HPLC, GC or dissolution sample analysis and widely used in most biological preparations, Electric semiconductor, industrial water filtration, chemicals filtration, drinks filtration. Nylon is an extremely clean and strong membrane with very low extractable levels and is a good 'workhorse' membrane choice where acidic samples are not involved.
It is designed with disc membrane that guarantees exceptional integrity when filtering some sample. Then through into non-gap sealing, virgin medical PP material is placed to contain all the disc membrane. It has superior performance to prevent leak of sample solvent and can promise membrane area being used in a large filtration area.
Data sheet
Nylon is a very pure hydrophilic membrane with very low levels of extractables
Standard 1µm pre-filter providing increased sample handling capacity
Able to filter solutions at temperatures up to 100?C
Autoclave at 121? at 1 bar for 20 minutes/EO/Gamma
Nylon Syringe Filters are a good choice for most general laboratory filtration, as well as filtration of most HPLC samples
Type | Nylon/PTFE/PES/PVDF/PTFEL/PVDF L | ||
Diameter | 13mm | 25mm | 30mm |
Pore Size | 0.22um, 0.45um | ||
Effective Filtration Area(cm2) | 1.09 | 4.08 | 5.39 |
Maximum Pressure | 87psi (6.0 bar) at 20 ° C | 87psi (6.0 bar) at 20 ° C | 87psi (6.0 bar) at 20 ° C |
Maximum Operating Temp. | 50° C | 50° C | 50° C |
Materials of Construction | Housing: Polypropylene | Housing: Polypropylene | Housing: Polypropylene |
Filtration Media | As specified | ||
Holdup volume (p 1) | <25 | <100 | <200 |
Sample volume (ml) | <10 | <100 | <200 |
Connectors | Inlet: Female Luer Lock Outlet: Male Slip Luer | Inlet: Female Luer Lock Outlet: Male Slip Luer | Inlet: Female Luer Lock Outlet: Male Slip Luer |
Flow Direction | Inlet: Female Luer Lock Outlet: Male Slip Luer | Inlet: Female Luer Lock Outlet: Male Slip Luer | Inlet: Female Luer Lock Outlet: Male Slip Luer |
Sterilisation | Autoclave at 121? at 1 bar for 20 minutes/EO/Gamma | ||
| Model | Pore Size | Diameter | Pack Size |
| IAS13NY022 | Pore:0.22?m | Diameter: 13mm | 100 |
| IAS13NY045 | Pore:0.45?m | Diameter: 13mm | 100 |
| IAS25NY022 | Pore:0.22?m | Diameter: 25mm | 100 |
| IAS25NY045 | Pore:0.45?m | Diameter: 25mm | 100 |
| IAS30NY022 | Pore:0.22?m | Diameter: 30mm | 100 |
| IAS30NY045 | Pore:0.45?m | Diameter: 30mm | 100 |
Hydrophilic Nylon membranes are suitable for filtering aqueous solutions and most organic solvents. It is ideal for HPLC, GC or dissolution sample analysis and widely used in most biological preparations, Electric semiconductor, industrial water filtration, chemicals filtration, drinks filtration.
Iris Hydrophilic Nylon membranes are suitable for filtering aqueous solutions and most organic solvents. It is ideal for HPLC, GC or dissolution sample analysis and widely used in most biological preparations, Electric semiconductor, industrial water filtration, chemicals filtration, drinks filtration.
Iris Hydrophilic Nylon membranes are suitable for filtering aqueous solutions and most organic solvents. It is ideal for HPLC, GC or dissolution sample analysis and widely used in most biological preparations, Electric semiconductor, industrial water filtration, chemicals filtration, drinks filtration.
Hydrophilic Nylon membranes are suitable for filtering aqueous solutions and most organic solvents. It is ideal for HPLC, GC or dissolution sample analysis and widely used in most biological preparations, Electric semiconductor, industrial water filtration, chemicals filtration, drinks filtration.
