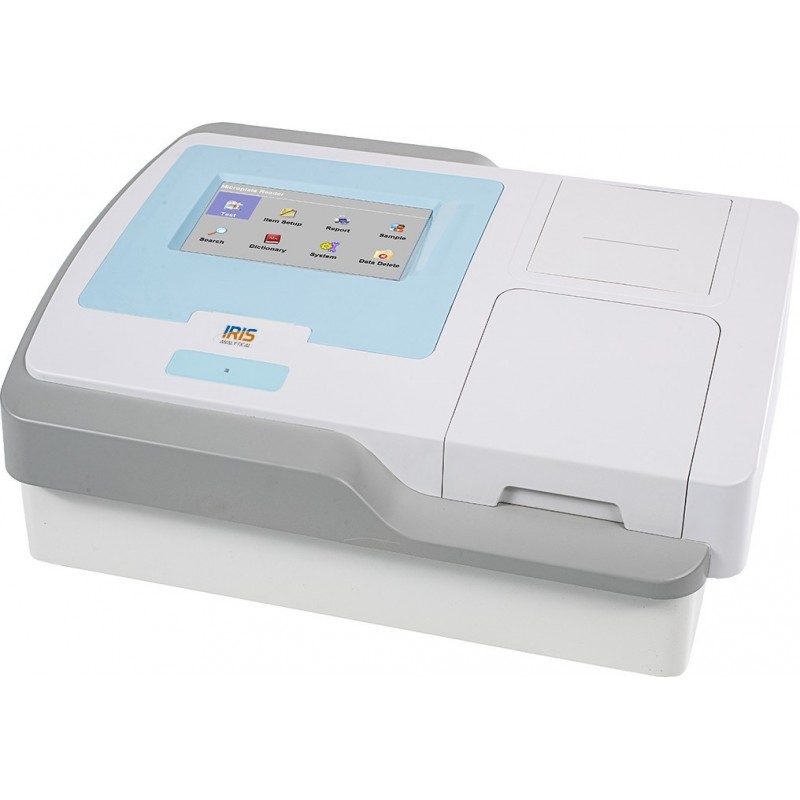

Microplate Reader IMR-520(100V/50Hz)

$3,200.00

Microplate Reader IMR-520 CE & ISO Certified models for detection technology with 8-channel manifolds as standard accessories for use with standard 96, and 48 wells plates.

Quantity

3-4 Weeks

Add to quote

Microplate Reader IMR-520 CE & ISO Certified models for detection technology with 8-channel manifolds as standard accessories for use with standard 96, and 48 wells plates. Covers the full wavelength range 400 to 800 nm and measured as quickly as 6 second per well, which is significantly faster than other current microplate reader methods. Temperature incubation, multiple shaking, well scan and reagent injectors make the IMR-520 the best platform for any clinical, biotechnology research and pharmaceutical laboratory applications. Can stored up to 500 programs and 10,000,000 test records in a single unit. Maintain all important measuring parameters including quality and quantity curve fit, blank substration, endpoint, kinetic calculation and data evolution function. A multi-mode reader has several benefits for laboratories applications ranging from ELISAs to nucleic acid and protein quantitation to cell imaging. Together with multiple microplate services and detection modes into a single, more versatile unit may be an ideal choice especially if you have limited area and perform 12 to 20 assays in a single plates.

Reference 420051001

Data sheet

Model: IMR-520
Wavelength Range: 400 to 800 nm
Optical Path: 8- channel
Accuracy: ±0.008 A
Reproducibility: ≤0.2%
Resolution: 0.001 A
Light Source: Tungsten halogen lamp(8V/50W)
Optical filter: 405,450,492,630 nm and 4 optional
Plate Types: 48 and 96-well plate
Function: Detect single, dual wavelength measurement
Stability: ±0.003 A
Detector: Silicon photodetector
Test Performance: 12 different test in single plate
Display: LCD
Certification: CE and ISO
Storage: 500 test items and 200,000 test data
Interface: 2(USB-A1), 2(USB-B1), RS232, Printer
Dimensions: 475x350x210 mm
Weight: 11. 5 kg
Electrical Requirement: 100V/50Hz
Catalogue No.: 420051001

An 8-channel manifolds is supplied as standard for use with standard 96, and 48 wells
Single or dual wavelength measurements, comprehensive quality and quantity curve fit, blank substration, endpoint, kinetic calculation and data evolution function
Available with multiple optical filters with wavelength of 405 nm, 450 nm, 492 nm, and 630 nm as standard accessories and 4 other optional filters
Build in LCD and LED display with touch screen to set time and speed along with using an advanced monochromatic system
Can perform 12 to 20 assay in a single plate
Triple shaking modes for comprehensive mixing of solution and reproducible outcome
Designed with read time that should not exceed beyond 6 seconds for both the wavelength
Ideal for immune assay, nucleic acid and macromolecules analysis
Used to measure high speed absorbance
Simultaneous dual emission and injectors
Stand-alone instrument
Tungsten halogen lamp light sources along with silicon photoelectric detector
Build in thermal printer as an standard accessories
The interface connection for this series are available with 2(USB-A1), 2(USB-B1), RS232, Printer, DVI, VGA, LAN, USB-A, USB-B, USB-C, AUDIO, RS232 an optional accessories

Model	IMR-510		IMR-520		IMR-530
Wavelength Range	400 to 850 nm		400 to 800 nm
Optical Path	8- channel
Accuracy	±0.008 A
Reproducibility	?0.2%
Resolution	0.001 A
Light Source	Tungsten halogen lamp(8V/50W)
Optical filter	405,450,492,630 nm and 4 optional
Plate Types	48 and 96-well plate
Function	Detect single, dual wavelength measurement
Stability	±0.003 A
Reading range	0 to 4 A
Detector	Silicon photodetector
Shaking	Linear Shaking mode, 3 speeds
Test Performance	12 different test in single plate				20 different test in single plate
Display			LCD		LED
Printer			Thermal printer and external printer
Applications	quantitative or qualitative detection, Cut-off qualitative calculation, curve fit, transformation formula
Other Features
Certification	CE and ISO
Storage	500 test items and 10,000000 test data		500 test items and 200,000 test data		500 test items and 20 million test data
Interface	USB		2(USB-A1), 2(USB-B1), RS232, Printer		DVI, VGA, LAN, USB-A, USB-B, USB-C, AUDIO, RS232
Dimensions	460x350x194 mm		475x350x210 mm		460x350x197 mm
Weight	7 kg		11. 5 kg		8 kg
Electrical Requirement	100V/50Hz	240V/60Hz	100V/50Hz	240V/60Hz	100V/50Hz	240V/60Hz
Catalogue No.	420050501	420050502	420051001	420051002	420051501	420051501

Model	IMR-510		IMR-520		IMR-530
Wavelength Range	400 to 850 nm		400 to 800 nm
Optical Path	8- channel
Accuracy	±0.008 A
Reproducibility	?0.2%
Resolution	0.001 A
Light Source	Tungsten halogen lamp(8V/50W)
Optical filter	405,450,492,630 nm and 4 optional
Plate Types	48 and 96-well plate
Function	Detect single, dual wavelength measurement
Stability	±0.003 A
Reading range	0 to 4 A
Detector	Silicon photodetector
Shaking	Linear Shaking mode, 3 speeds
Test Performance	12 different test in single plate				20 different test in single plate
Display			LCD		LED
Printer			Thermal printer and external printer
Applications	quantitative or qualitative detection, Cut-off qualitative calculation, curve fit, transformation formula
Other Features
Certification	CE and ISO
Storage	500 test items and 10,000000 test data		500 test items and 200,000 test data		500 test items and 20 million test data
Interface	USB		2(USB-A1), 2(USB-B1), RS232, Printer		DVI, VGA, LAN, USB-A, USB-B, USB-C, AUDIO, RS232
Dimensions	460x350x194 mm		475x350x210 mm		460x350x197 mm
Weight	7 kg		11. 5 kg		8 kg
Electrical Requirement	100V/50Hz	240V/60Hz	100V/50Hz	240V/60Hz	100V/50Hz	240V/60Hz
Catalogue No.	420050501	420050502	420051001	420051002	420051501	420051501
