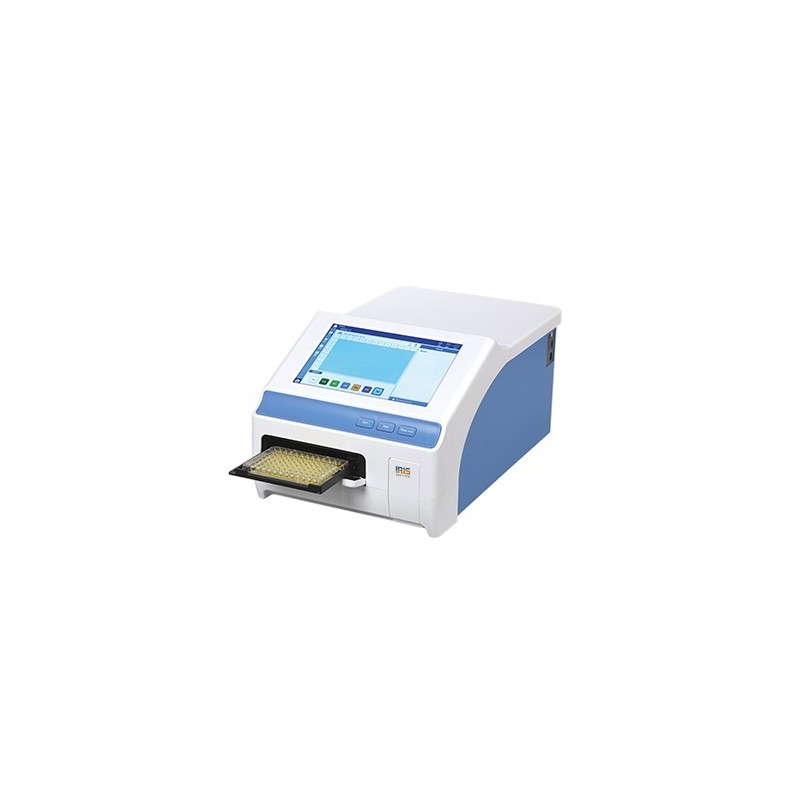

Microplate Reader IMR-2000important components and powerful microplate ELISA readerwith standard accessories 96, and 384 wells plates. Covers the full wavelength range 200 to 1000 nm and measured as quickly as 6 second per well, which is significantly faster than other current microplate reader methods anddifferent liquid lines can be used allowing flexible configurations including 3 washer of 2.5L washing bottle and 1 pcs 2.5L waste bottle different wash solutions .
Temperature incubation, multiple shaking, well scan and reagent injectors make the IMR-2000 the best platform for screening of photometric research and clinical applications. Can stored up to 16G or less 10,000 test records in a single unit.Maintain all important measuring parameters including quality and quantity curve fit, blank substration, endpoint, kinetic calculation and data evolution function. A multi-mode reader has several benefits for laboratories applications ranging from ELISAs to nucleic acid and protein quantitation to cell imaging. Together with multiple microplate services and detection modes into a single, more versatile unit may be an ideal choice especially if you have limited area.
Accessories
-
ReaderIt-II Software
-
Printer
-
Printer Paper
4201505-04
Data sheet
- Model
- IMR-2000
- Wavelength Range
- 200 to 1000 nm
- Accuracy
- ±2 nm
- Light Source
- Quartz-halogen lamp
- Optical filter
- 405,450,492,630 nm
- Detector
- 2 silicon photoelectric detector
- Display
- 10 inch touch screen
- Linearity @450nm
- 0 to 2.5 Abs，±2% (96 well plates)
- Accuracy @450nm
- 1.0% + 0.005 Abs (0 to 2.0 Abs)；2.0% [2.0 to 2.5 Abs)
- Dimensions
- 300×500×290 mm
- Weight
- 15 kg
- Electrical Requirement
- DC24V, 6.5A
- Catalogue No.
- 4201505-04
- An 8-channel manifolds is supplied as standard for use with standard 96, and 384 wells
- Up to different liquid lines can be used allowing flexible configurations including 3 washer of 2.5L washing bottle and 1 pcs 2.5L waste bottle different wash solutions
- Single or dual wavelength measurements, comprehensive quality and quantity curve fit, blank substration, endpoint, kinetic calculation and data evolution function
- Available with multiple optical filters with wavelength of 405 nm, 450 nm, 492 nm, and 630 nm as standard accessories
- Build in 10-inch display with touch screen to set time and speed along with using an advanced monochromatic system
- Triple shaking modes for comprehensive mixing of solution and reproducible outcome
- Designed with read time that should not exceed beyond 6 seconds for both the wavelength
- Ideal for immune assay, nucleic acid and macromolecules analysis
- Used to measure high speed absorbance
- Simultaneous dual emission and injectors
- Stand-alone instrument
- Quartz-halogen lamp light sources along with 2 silicon photoelectric detector, 1 for measurement, 2 for reference
- The interface connection for this model are available with 3 USB ports, for PC, printer and USB-disk as an optional accessories
- Designed with comprehensive powerful APP software, PC software ReaderIt-II to review and analyse the data as an optional accessories
Model | IMR-2000 |
Wavelength | 200 to 1000 nm |
Bottle | 3 pcs 2.5L washing bottle, 1pcs 2.5L waste bottle |
Light source | Quartz-halogen lamp |
Optical filter | 405,450,492,630 nm |
Accuracy | ±2 nm |
Repetition | ±0.2 nm |
Display | 10 inch touch screen |
Read-out range | 0 to 4 OD |
Wavelength selection | Monochromator |
Half-bandwidth of filters | <2.5 nm |
Detector | 2 silicon photoelectric detector |
Test speed | 10s with 96-well (fast mode); 30s with 96-well (accurate mode) |
Shaking | Linear; 3 options for speed |
Linearity @450nm | 0 to 2.5 Abs?±2% (96 well plates) |
Accuracy @450nm | 1.0% + 0.005 Abs (0 to 2.0 Abs)?2.0% [2.0 to 2.5 Abs) |
Precision @450nm | CV < 0.5% accurate model?CV < 1.0% fast mode |
Incubator | Ambient + 5°C to 45°C |
Storage | 16G, >10,000 test records stored |
Ports | 3 USB ports, for PC, printer and USB-disk |
Analysis software | Reader-II |
Interface | Integrated software or PC control software |
Dimensions | 300×500×290 mm |
Weight | 15 kg |
Electrical Requirement | DC24V, 6.5A |
Catalogue No. | 4201505-04 |
| Model | IMR-2000 |
| Wavelength | 200 to 1000 nm |
| Bottle | 3 pcs 2.5L washing bottle, 1pcs 2.5L waste bottle |
| Light source | Quartz-halogen lamp |
| Optical filter | 405,450,492,630 nm |
| Accuracy | ±2 nm |
| Repetition | ±0.2 nm |
| Display | 10 inch touch screen |
| Read-out range | 0 to 4 OD |
| Wavelength selection | Monochromator |
| Half-bandwidth of filters | <2.5 nm |
| Detector | 2 silicon photoelectric detector |
| Test speed | 10s with 96-well (fast mode); 30s with 96-well (accurate mode) |
| Shaking | Linear; 3 options for speed |
| Linearity @450nm | 0 to 2.5 Abs?±2% (96 well plates) |
| Accuracy @450nm | 1.0% + 0.005 Abs (0 to 2.0 Abs)?2.0% [2.0 to 2.5 Abs) |
| Precision @450nm | CV < 0.5% accurate model?CV < 1.0% fast mode |
| Incubator | Ambient + 5°C to 45°C |
| Storage | 16G, >10,000 test records stored |
| Ports | 3 USB ports, for PC, printer and USB-disk |
| Analysis software | Reader-II |
| Interface | Integrated software or PC control software |
| Dimensions | 300×500×290 mm |
| Weight | 15 kg |
| Electrical Requirement | DC24V, 6.5A |
| Catalogue No. | 4201505-04 |
Download Catalog
