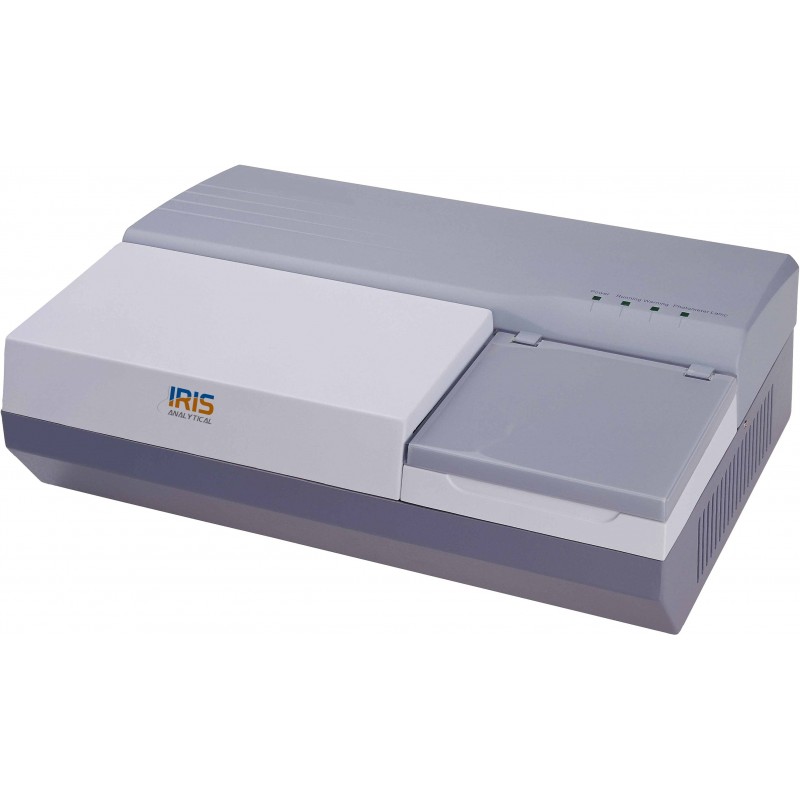

Microplate Reader IMR-4000is asingle mode microplate readers are used for detection technology with 8-channel manifolds as standard accessories for use with standard 96 wells plates.
Covers the absorbance range 0 - 4.000Abs with bandwidth <8nm and measured quickly, which is significantly faster than other current microplate reader methods. End Point, fixed time, Kinetic make the IMR-4000 the best platform for any clinical, biotechnology research and pharmaceutical laboratory applications. Can stored up to 100 programs and 100,000 test records in a single unit.Maintain all important measuring parameters including ABS, Cut-Off, Single Standard, Curve, Multi- Percent Log, Linear, Exponential, Power, 4PL Regression. A multi-mode reader has several benefits for laboratories applications ranging from ELISAs to nucleic acid and protein quantitation to cell imaging. Together with multiple microplate services and detection modes into a single, more versatile unit may be an ideal choice especially if you have limited area and performed 12 assays in a single plate.
420250501
Data sheet
- Model
- IMR-4000
- Absorbance Range
- 0 - 4.000Abs
- Optical Path
- 8-channel
- Accuracy
- ±0.5% or ±0.005Abs
- Resolution
- 0.001Abs (displayed),0.0001Abs(calculated)
- Light Source
- Halogen lamp, 8V/20W
- Optical filter
- 405, 450, 492, 630nm, (4 other filer are optional)
- Plate Types
- Standard with 96-well or other kind of microplate and strip
- Function
- End Point, fixed time, Kinetic
- Storage
- More than 100 programs, up to 100,000 test results
- Interface
- RS-232, USB
- Dimensions
- 454×295×146 mm
- Weight
- 7Kg
- Electrical Requirement
- AC110V/50Hz
- Catalogue No.
- 420250501
- Useful function are End Point, fixed time, Kinetic, single or dual wavelength measurement
- Storage capabilities More than 100 programs, up to 100,000 sample result
- Build in digital display with rotating display facilities
- The plate washer is available in a 8-channel version
- Available with multiple optical filters including of wavelength 405 nm, 450 nm, 492 nm, and 630 nm as standard accessories and 4 other optional filters
- Halogen lamp, 8V/20W light sources
- Professional XP software available for analysis
- Fully automatic instruments
- Automatic sampling test
- Automatic switch door
- Visualization of panel and panel data
- Good stability and good repeatability, assure accurate results
- Maintenance free with long lasting mode
Model | IMR-4000 | |
Absorbance Range | 0 - 4.000Abs | |
Test Performance | 12 different test in single plate | |
Optical Path | 8-channel | |
Accuracy | ±0.5% or ±0.005Abs | |
Resolution | 0.001Abs (displayed),0.0001Abs(calculated)
| |
Light Source | Halogen lamp, 8V/20W | |
Band width | <8nm | |
Optical filter | 405, 450, 492, 630nm, (4 other filer are optional)
| |
Plate Types | Standard with 96-well or other kind of microplate and strip | |
Function | End Point, fixed time, Kinetic | |
Reading Speed | 5 seconds for 96 well plate (single wavelength)
| |
Printer | All printers compatible with Windows
| |
Shaking | Shaking time and speed adjustable | |
Applications | ABS, Cut-Off, Single Standard, Curve, Multi-Percent, Percent Log, Linear, Exponential, Power, 4PL Regression | |
Storage | More than 100 programs, up to 100,000 test results | |
Interface | RS-232, USB | |
Dimensions | 454×295×146(mm | |
Weight | 7Kg | |
Electrical Requirement | AC110V/50Hz | 220V/60Hz |
Catalogue No. | 420250501 | 420250502 |
| Model | IMR-4000 | |
| Absorbance Range | 0 - 4.000Abs | |
| Test Performance | 12 different test in single plate | |
| Optical Path | 8-channel | |
| Accuracy | ±0.5% or ±0.005Abs | |
| Resolution | 0.001Abs (displayed),0.0001Abs(calculated)
| |
| Light Source | Halogen lamp, 8V/20W | |
| Band width | <8nm | |
| Optical filter | 405, 450, 492, 630nm, (4 other filer are optional)
| |
| Plate Types | Standard with 96-well or other kind of microplate and strip | |
| Function | End Point, fixed time, Kinetic | |
| Reading Speed | 5 seconds for 96 well plate (single wavelength)
| |
| Printer | All printers compatible with Windows
| |
| Shaking | Shaking time and speed adjustable | |
| Applications | ABS, Cut-Off, Single Standard, Curve, Multi-Percent, Percent Log, Linear, Exponential, Power, 4PL Regression | |
| Storage | More than 100 programs, up to 100,000 test results | |
| Interface | RS-232, USB | |
| Dimensions | 454×295×146(mm | |
| Weight | 7Kg | |
| Electrical Requirement | AC110V/50Hz | 220V/60Hz |
| Catalogue No. | 420250501 | 420250502 |
Download Catalog
Microplate Reader IMR-4000is asingle mode microplate readers are used for detection technology with 8-channel manifolds as standard accessories for use with standard 96 wells plates.
