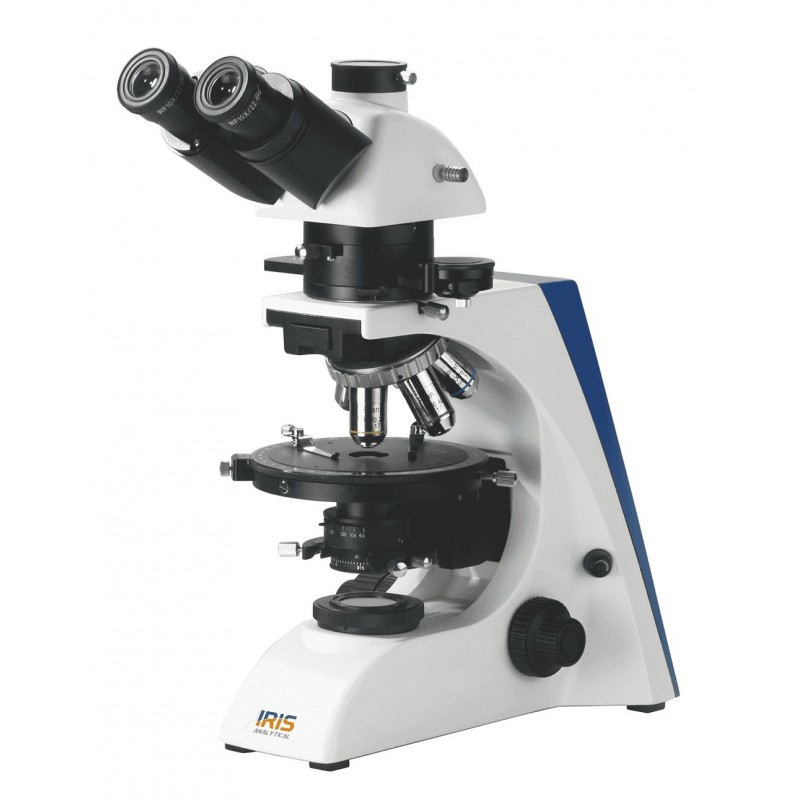

Polarizing Microscope IMP-1204 equipped with a high degree of sensitivity and best suited for anisotropic (mineral) specimens such as geology, minerals, metallurgy, university teaching laboratories, and other sectors. Built-in bertrand lens, polarizer and analyzer, 360° rotatable round stage, filter, condenser, etc. The binocular viewing head with wild field eyepieces and has excellent infinite strain free plan achromatic:4X/0.10-12.1mm and LWD infinite strain free plan achromatic: 5X/0.13(S)-23 mm, objectives, and each eye tube has interpupillary adjustment. This series is capable of providing strong images with a broad field of view, the multipurpose and perfect for basic studies of samples properties. Come with 5W LED lights, allowing samples to be illuminated for a more comprehensive field of view. Accomplished with the help of particular devices known as retardation plates and optical compensators. First order retardation plate is used in optical path differences ranging from a fraction of a wavelength up to several wavelengths. This flexible and multipurpose tool is known by different names, comprising a red plate, red-one plate, lambda (λ) plate, gypsum plate, selenite plate, sensitive violet, or simply a color tint plate and quartz wedge plate is a simple, semi-quantitative optical compensator used to examine optical path differences in a wide range of samples by the quartz wedge. Built in a crystalline block of quartz provide parallel or perpendicular optical axis to the edge of the birefringent crystal.
Sample Images
Data sheet
| Model | IMP-1201 | IMP-1202 | IMP-1203 | IMP-1204 | IMP-1205 | IMP-1206 |
| Type | Polarizing Microscope | |||||
| Viewing Head | Binocular Head, inclined at 30°, 360° Rotatable, Interpupillary Distance: 48-76mm(optional: Binocular Head, inclined at 30°, 360° Rotatable, Interpupillary Distance: 48-76mm) | |||||
| Optical System | Infinite | |||||
| Focusing | Coaxial Coarse & Fine Adjustment, Range 25mm, Fine Stroke 0.2mm, Fine Division 0.002mm | |||||
| Eyepiece | WF10×/22mm,WF10×/22 mm (Reticule 0.1mm) | WF10×/20 mm,WF10×/20 mm (Reticule 0.1mm) | WF10×/22mm,WF10×/22 mm (Reticule 0.1mm) | WF10×/20 mm,WF10×/20 mm (Reticule 0.1mm) | ||
| Nosepiece | Backward Quintuple | |||||
| Objective | Infinite Strain Free Plan Achromatic:4×/0.10,12.1mm 10×/0.25,4.64mm 20×/0.40(S),2.41mm 40×/0.66(S),65mm 60×/0.80 (S),0.33mm (optional:100×/1.25 (S, Oil),0.12mm) | LWD Infinite Strain Free Plan Achromatic: 5×/0.13(S),24.23mm, 10×/0.25 (S),8.48mm,20×/0.40 (S),8.35mm,50×/70 (S),.95mm (optional:100×/0.90 (S, Dry).1.1mm) | Infinite Strain Free Plan Achromatic:4×/0.10,12.1mm 10×/0.25,4.64mm 20×/0.40(S),2.41mm 40×/0.66(S),65mm 60×/0.80 (S),0.33mm (optional:100×/1.25 (S, Oil),0.12mm) | LWD Infinite Strain Free Plan Achromatic: 5×/0.13 (S),24.23mm 10×/0.25 (S),8.48mm 20×/0.40 (S),8.35mm 50×/0.70 (S),.95mm (optional:100×/0.90 (S, Dry).1.1mm) | Infinite Strain Free Plan Achromatic:4×/0.10,12.1mm 10×/0.25,4.64mm 20×/0.40(S),2.41mm 40×/0.66(S),65mm 60×/0.80 (S),0.33mm (optional:100×/1.25 (S, Oil),0.12mm) | |
| Stage | Revolving Round Stage of l length 156mm, Rotatable 360°, Center Adjustable, Division 1°, Vernier Division 6 (optional: Attachable Mechanical Stage Polarizing Attached Mechanical Stage with X-Y movement) | |||||
| Light Source | 5W LED lamp (Optional:6V/30W Halogen Koehler Illumination) Transmitted and reflected | 5W LED lamp (Optional:6V/30W Halogen Koehler Illumination) Transmitted | 5W LED lamp (Optional:6V/30W Halogen Koehler Illumination) reflected | |||
| Polarizing Unit | Scale, Rotatable 360 lockable | - | Scale, Rotatable 360 lockable | - | Scale, Rotatable 360 lockable | |
| Analyzing Unit | rotatable 360°, module type lockable | |||||
| Optical Compensator | gypsum ? Slip(First Class Red), 1/4? Slip, Quartz Wedge (?- ?Class) | |||||
| Lens | Bertrand Lens | |||||
| Filter | Blue(optional:Amber,Green,Neutral) | |||||
| Condenser | N.A.0.9/0.13 swing out condenser | - | N.A.0.9/0.13 swing out condenser | - | N.A.0.9/0.13 swing out condenser | |
| Certification |
|
|
|
|
|
|
| Optional Accessories | C-mount and filters | |||||
| Packing Dimension | 565×310×410mm | 750×360×450mm | 750×360×450 mm | 565×310×410mm | 750×360×450mm | 750×360×450 mm |
| Packing Weight | GW-12.5 kg NW-10 kg | GW-15 kg NW-11 kg | GW-16 kg NW-12 kg | GW-12.5 kg NW-10 kg | GW-15 kg NW-11 kg | GW-16 kg NW-12 kg |
| Electrical Requirement |
|
|
|
|
|
|
| Catalogue No. | 440220-05-04 | 440220-10-04 | 440220-15-04 | 440220-20-04 | 440220-25-04 | 440220-30-04 |
