Basic Automatic Polarimeter IAP-110 is designed for use in many applications that require measurement of optical rotation and best suited for optical rotation, sugar degree in pharmaceutical, chemical, food and research applications. Designed with 589.44 nm, 5-inch LCD light source and includes polarimeter tubes of 100 mm and 200 mm, and a spare sodium lamp, with sample transmittance up to 10 %, and 1% range.Better-quality usability with the use of touch screen display. Achieve a high measurement accuracy of up to ± (0.01 and measuring valuex 0.05%) °C. Automatically prints out Optical rotation, sugar degree.
Basic Automatic C total repeatability and glass tubes: 100 and 200 mm, 15mm diameter.Polarimeter IAP-110 is ideal for measurement of rotation of polarization plane and best suited for optical rotation with accuracy up to ±0.01°C, and ≤0.01°
Data sheet
Designed with photoelectric test and microcomputer control
Suitable for optical rotation and sugar degree application
CE certified
Designed with 5-inch LCD display
Capabilities to store of three times results and design to calculate average values
Integrated with polarimeter tubes of 100 mm and 200 mm
Support RS232 interface
Technical Specifications
Model | IAP-110 | IAP-120 |
Wavelength | 589.44 nm | |
Accuracy | ±(0.01+measuring value x 0.05%)°C | |
Repeatability | ?0.01°C | ?0.002°C |
Measurement Range | ±45°C(Optical rotation) | ±45°(optical rotation)±120° |
Measurement Modes | Optical rotation | Optical rotation, sugar degree |
Source | LED | |
Display | 5-inch LCD | |
Test Tube | 100 mm or 200 mm (regular) | |
Minimum Indicating Value | 0.002°C(optical rotation) | 0.001°C(optical rotation)0.01° |
Sample Transmittance | 10% | 1% |
Certifications | CE | |
Interface | RS232 | |
Power Consumption |
|
|
Dimension | 730×480×470 mm | |
Weight | 33 kg | |
Electrical Requirement |
|
|
Catalogue No. | 4600505-04 | 4600510-04 |
| Model | IAP-110 | IAP-120 |
| Wavelength | 589.44 nm | |
| Accuracy | ±(0.01+measuring value x 0.05%)°C | |
| Repeatability | ?0.01°C | ?0.002°C |
| Measurement Range | ±45°C(Optical rotation) | ±45°(optical rotation)±120° |
| Measurement Modes | Optical rotation | Optical rotation, sugar degree |
| Source | LED | |
| Display | 5-inch LCD | |
| Test Tube | 100 mm or 200 mm (regular) | |
| Minimum Indicating Value | 0.002°C(optical rotation) | 0.001°C(optical rotation)0.01° |
| Sample Transmittance | 10% | 1% |
| Certifications | CE | |
| Interface | RS232 | |
| Dimension | 730×480×470 mm | |
| Weight | 33 kg | |
| Electrical Requirement | - | - |
| Catalogue No. | 4600505-04 | 4600510-04 |
Semi-Automatic Refractometer ISAR-1200 used in the manufacturing center and production line seeking to maintain a high level of quality and adherence to stringent quality procedures, allow accurate reading of data
Precision Automatic Polarimeter IAP-360 is designed for use in many applications that require measurement of optical rotation and best suited for custom optical rotation, specific rotation, sugar degree and concentration.
Precision Automatic Polarimeter IAP-390 is designed for use in many applications that require measurement of optical rotation and best suited for custom optical rotation, specific rotation, sugar degree and concentration.
Automatic Refractometer IAR-2220 is used to reduce differences value inmeasuring databetween user with excellent accuracy and readout value it can used to measure refractive index and brix value of sample at different temperature.
Semi-Automatic Refractometer ISAR-1100 used in the manufacturing center and production line seeking to maintain a high level of quality and adherence to stringent quality procedures, allow accurate reading of data
Basic Automatic Polarimeter IAP-120 is designed for use in many applications that require measurement of optical rotation and best suited for optical rotation, sugar degree in pharmaceutical, chemical, food and research applications.
Automatic Refractometer IAR-1100is a benchtop automatic refractrometer measure refractive index and brix value of sample at different temperature. The intensity of reflected light is determined by CCD scanner and resulting

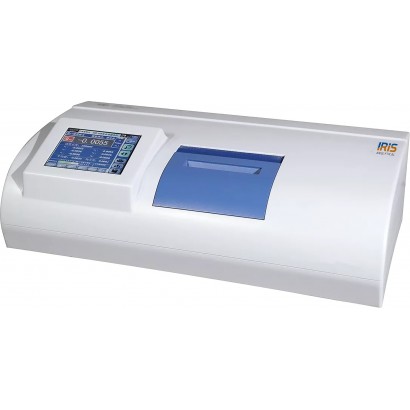

Precision Automatic Polarimeter IAP-380 is designed for use in many applications that require measurement of optical rotation and best suited for custom optical rotation, specific rotation, sugar degree and concentration.
