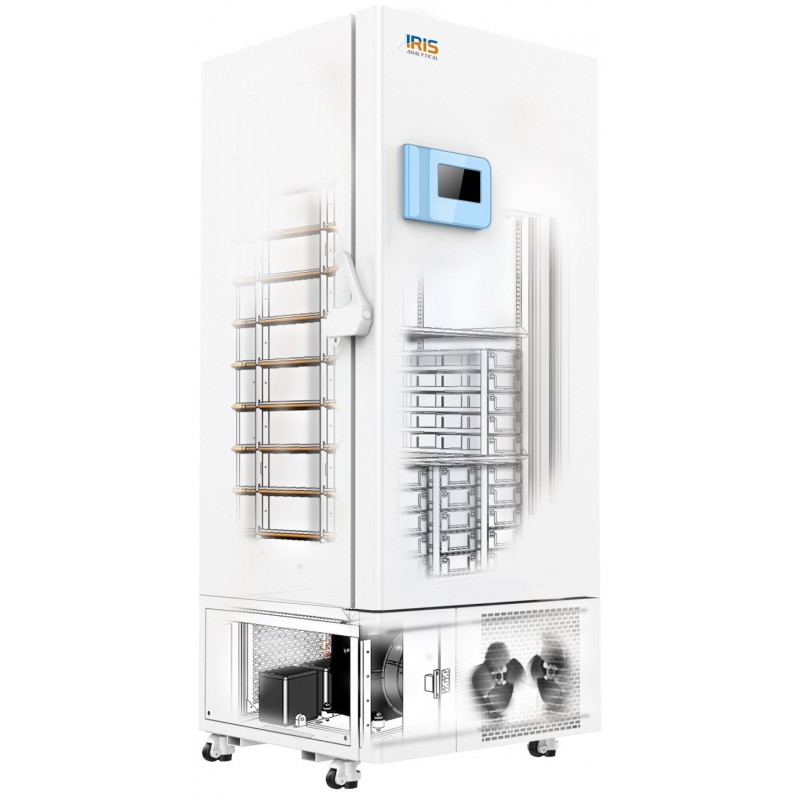

Ultra-Low Upright Freezers -86℃ IUUF-2490 design with cascade refrigeration system that uses two kinds of refrigerants having different boiling points, which run through their own independent freezing cycle and are joined by a heat exchanger. Features with filter for easy cleaning and single hand openable, Gasket heating, leveling caster, etc. Available with maximum capacity up to 490 L with temperature range of -50 to-86°C.
Optional Accessories
Data sheet
| Model | IUUF-2390 | IUUF-2490 | IUUF-2650 |
| Capacity | 390 L | 490 L | 650 L |
| Temperature Range | -50 to-86 | ||
| Materials | Outer: White plastic coated galvanised steel; inner: stainless steel | ||
| Alarms | High condenser temperature alarm, power failure, temperature sensor, low battery, high and low temperature alarm, door open alarm | ||
| Type | Upright | ||
| Display | Touch screen | ||
| Refrigerant | Non HCFC | ||
| Shelves | 3 | ||
| Casters | 4 | ||
| Certification | CE | ||
| Power Consumption | 1300 W | ||
| Internal Dimension | 909 x 797 x 1990 mm | 589 x 637 x 1310 mm | 780 x 637 x 1310 mm |
| External Dimension | 589 x 505 x 1310 mm | 900 x 929 x 1990 mm | 1091 x 929 x 1990 mm |
| Weight | 283 kg | 325 kg | 354 kg |
| Electrical Requirement | AC220 / 50Hz | ||
| Catalogue No. | 500650502 | 500651002 | 500651502 |
Chest Type Medical Freezers -25℃ ICMF-108 is a horizontal box-shaped freezer with a lid on the top. Compatible with CFC-free polyurethane foam technology and insulating door for better effect of thermal insulation. Available in 3 different mass with maximum capacities about 508 L.
Double Door Medical Refrigerator 2 to 20°C IUMR-2656D with dual-layer opening and 10 shelves for easy observation and storage of samples. The IUMR-2000D comes with the same design and features as IUMR-1000 having double doors instead
Ultra-Low Upright Freezers -86℃ IUUF-4230 are same as IUUF-3000, the only difference in there temperature work under -60°C to -85°C and -40°C to -85°C. The available capacity is 688 L, with temperature range of -60°C to -85°C by offering excellent temperature uniformity and stability.
Ultra-Low Chest Freezers -86℃ IUCF-2015C design for large amount of freezer storage, the available maximum capacity is 485 L with temperature range of -40°C to -85°C by offering excellent temperature uniformity and stability.
Low-Temperature Upright Freezers -60℃ ILUF-1050 design for storage of product at low temperature, the available capacity 50 L with a temperature range of -25°C to -60°C by offering excellent temperature uniformity and stability.
Upright Deep Freezers -40℃ IUDF-260 is well organized single door low-temperature freezer as they contain shelves and draws, letting foods to be quickly sorted. The maximum capacitates up to 263L with a temperature range of -30°C to -40°C.
Chest Type Medical Freezers -25℃ ICMF-108 is a horizontal box-shaped freezer with a lid on the top. Compatible with CFC-free polyurethane foam technology and insulating door for better effect of thermal insulation. Available in 3 different mass with maximum capacities about 508 L.
Low-Temperature Chest Freezers -60℃ ILCF-1150 available with maximum capacity up to 150 L with a password protection system to prevent unwanted access.
Blood Bank Refrigerator IUBR-1005 used to store blood platelet, biological reagent, and chemical products in hospitals, blood banks, R&D applications. Can record the 2 temperature range including 20 to 24°C and 2 to 40°C
Ultra-Low Upright Freezers -86℃ IUUF-4220D design withdual system: one for breaks down, the other system for continue working to get temperature -80°C. The available capacity 588 L with temperature range of -40°C to -85°C by offering excellent temperature uniformity and stability.
Ultra-Low Chest Freezers -86℃ IUCF-1050 use the best and reliable refrigeration technology and have been designed to occupy less floor space and provide available maximum capacities are: 50 L with temperature range of -40°C to -85°C by offering excellent temperature uniformity and stability.
Ultra-Low Upright Freezers -86℃ IUUF-3300 provide benefits to go beyond what you can see and comprise with design essentials that guarantee best performance of our products. The available capacity is 340 L with temperature range of -40°C to -85°C by offering excellent temperature uniformity and stability
Upright Deep Freezers -40℃ IUDF-232 is well organized single door low-temperature freezer as they contain shelves and draws, letting foods to be quickly sorted. The maximum capacitates up to 322 L with a temperature range of -30°C to -40°C.
Chest Type Medical Freezers -25℃ ICMF-158 is a horizontal box-shaped freezer with a lid on the top. Compatible with CFC-free polyurethane foam technology and insulating door for better effect of thermal insulation. Available in 3 different mass with maximum capacities about 358 L.
Ultra-Low Upright Freezers -86℃ IUUF-3000 suitable for blood stations, hospitals, health and epidemic prevention system, scientific research institutes, biological engineering,
Blood Bank Refrigerator IUBR-3588 is designed with the unique needs of the blood bank environment in mind and safely store types of blood with high-quality large chamber temperature uniformity and quick recovery with a heavy-duty, air-cooled refrigeration system and AT up to 16 to 32°C, ant 5 to 35°C.
Ultra-Low Upright Freezers -86℃ IUUF-2490 design with cascade refrigeration system that uses two kinds of refrigerants having different boiling points, which run through their own independent freezing cycle and are joined by a heat
