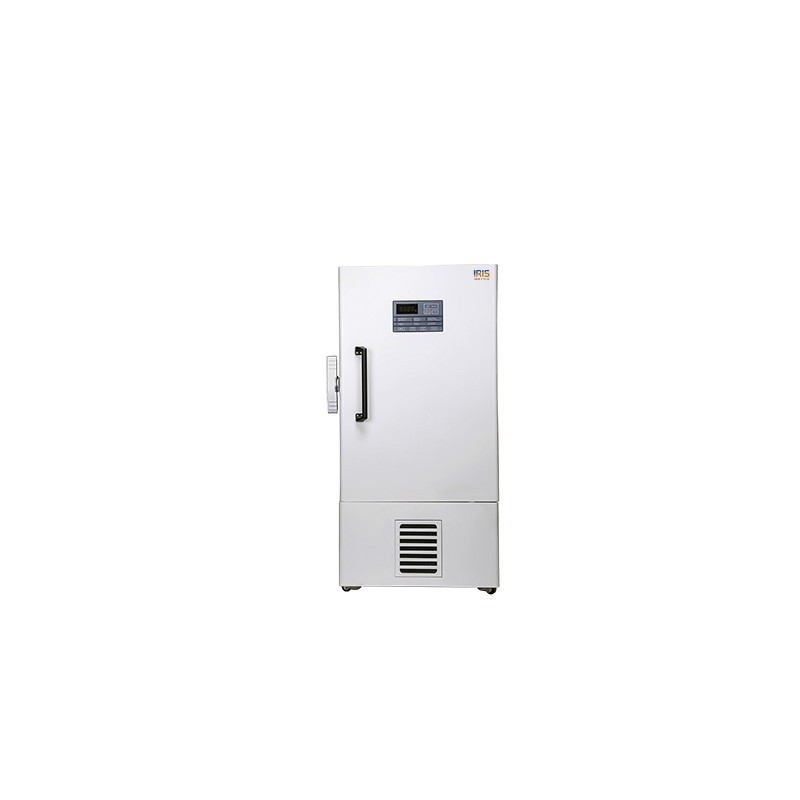

Ultra-Low Upright Freezers -86℃ IUUF-4200 are same as IUUF-3000, the only difference in there temperature work under -60°C to -85°C and -40°C to -85°C. The available capacity is 338 L, with temperature range of -60°C to -85°C by offering excellent temperature uniformity and stability.
Ultra-Low Upright Freezers -86℃ IUUF-4200 are same as IUUF-3000, the only difference in there temperature work under -60°C to -85°C and -40°C to -85°C. The available capacity is 338 L, with temperature range of -60°C to -85°C by offering excellent temperature uniformity and stability.
Build-in inner door to avoid more cooling leaking out, and provide more stable inside temperature performance and complete temperature alarm system featuring. Used to stores vaccines, blood plasma, and many other biological products. Features with cooling fan for instrument safety, durability and endurance purpose. The range of upright biomedical freezers storage products will permit you to choose the perfect match to meet your requirements through cost and energy saving.
Optional Accessories
Data sheet
| Model | IUUF-4200 | IUUF-4210 | IUUF-4220 | IUUF-4230 | IUUF-4240 | IUUF-4250 |
| Capacity | 338 L | 408 L | 588 L | 688 L | 728 L | 838 L |
| Temperature Range | -60 to -86? | |||||
| Materials | Inner : Stainless steel; Outer: Color sprayed steel | |||||
| Alarms | High and low temeprature alarms, power failure, Abnormal voltage,Sensor error, Filter screen check ,Thermostat failure,Low battery,Condenser clean,High ambient temperature, | |||||
| Cooling | Direct Cooling | |||||
| Class | N | |||||
| Type | Upright | |||||
| Condenser | Copper tube and finned | |||||
| Sensor | PTC | |||||
| Refrigerant | HC | HC | HC | R508 & R404 | HC | HC |
| Evaporator | Submerged coil evaporator | |||||
| Defrosting | Manual | |||||
| Shelves | Stainless steel shelf/3 | |||||
| Casters | 4 | |||||
| Compressor | SECOP/2 | |||||
| Temperature controller | Microprocessor | |||||
| Ambient Temperature | 10 to 32? | |||||
| Certification | ISO.CE | |||||
| Power Consumption | 870 W | 845W | 815W | 808W | 935W | 890W |
| Internal Dimension | 488×607×1140 mm | 606×575×1180 mm | 606×738×1310 mm | 990×607×1140 mm | 963×558×1350 mm | 894×718×1310 mm |
| External Dimension | 854×1072×1907 mm | 872×940×1945.5 mm | 872×1100×1994.5 mm | 1354×1072×1907 mm | 1248×970×1994 mm | 1160×1085×1994.5 mm |
| Net Weight | 190 kg | 215 kg | 249 kg | 260 kg | 320 kg | 275 kg |
| Gross Weight | 220 kg | 245 kg | 275 kg | 290 kg | 350 kg | 305 kg |
| Electrical Requirement | 220V/50Hz | |||||
| Catalogue No. | 500750502 | 500751002 | 500751502 | 500752002 | 500752502 | 500753002 |
