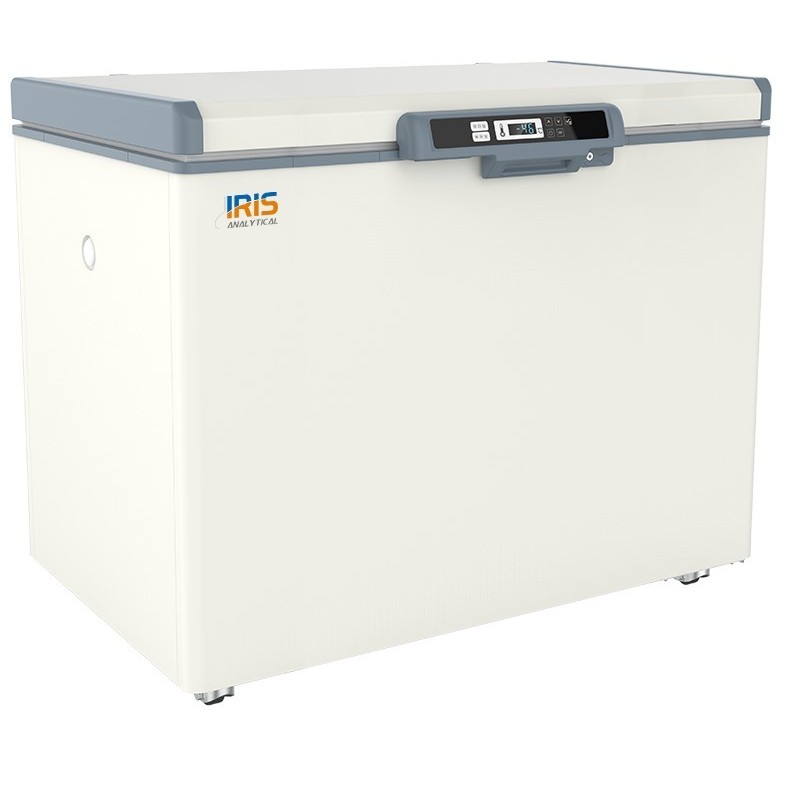

Low-Temperature Chest Freezers -60℃ ILCF-1270 available with maximum capacity up to 270 L with a password protection system to prevent unwanted access.
Equipped with two-layer heat insulating foamed door and the insulation design of the outer door system with multiple patents can prevent loss of refrigerating capacity in an effective way. Six sides of the cabinet are made from high-performance vacuum insulation material, improving thermal insulation performance to a large extent.
Data sheet
Low-Temperature Chest Freezers -60? ILCF-1270 available with maximum capacity up to 270 L with a password protection system to prevent unwanted access.
Equipped with two-layer heat insulating foamed door and the insulation design of the outer door system with multiple patents can prevent loss of refrigerating capacity in an effective way. Six sides of the cabinet are made from high-performance vacuum insulation material, improving thermal insulation performance to a large extent.
| Model | ILCF-1150 | ILCF-1270 | ILCF-1360 |
| Capacity | 150 L | 270 L | 360 L |
| Temperature Range | -30 to-60? | ||
| Materials | Outer : SPCC epoxy coating, inner: stainless-steel | ||
| Alarms | High/Low temperature, Power failure. Sensor error | ||
| Cooling | Direct cooling | ||
| Class | N | ||
| Type | Chest Type | ||
| Display | LED | ||
| Refrigerant | Mixture Gas | ||
| Defrosting | Manual | ||
| Controller | Microprocessor | ||
| Casters | 4?2 caster with brake) | ||
| Compressor | 1 pc | ||
| Ambient Temperature | 16 to 32? | ||
| Certification |
|
|
|
| Power Consumption | 5.5 KW | - | 5 KW |
| Internal Dimension | 585x465x651 mm | 1019x465x651 mm | 1308x465x651 mm |
| External Dimension | 811x775x929 mm | 1245x775x929 mm | 1534x775x929 mm |
| Net Weight | 67 kg | 80 kg | 103 kg |
| Gross Weight | 74 kg | 87.5 kg | 111 kg |
| Electrical Requirement | 220V/50 Hz | ||
| Catalogue No. | 500550502 | 500551002 | 500551502 |
