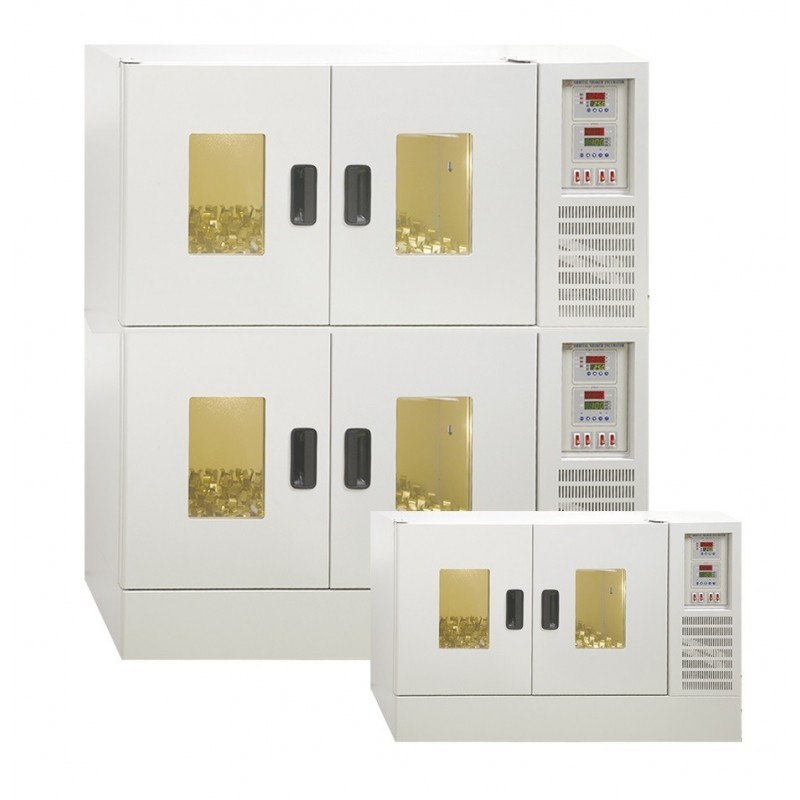

Double Door Shaking Incubator DS-1300D, 110V/60Hz

$6,963.00

The Iris Incubator Shaker DS-1300D is suitable for cell culturing, cell aeration, and solubility studies. In addition to offering stable temperature conditions, the Iris incubator shakers use an orbital agitation at variable speeds to affect the growth of cell cultures.

Quantity
2 - 3 weeks
Share

The Iris Incubator Shaker DS-1300D is suitable for cell culturing, cell aeration, and solubility studies. In addition to offering stable temperature conditions, the Iris incubator shakers use an orbital agitation at variable speeds to affect the growth of cell cultures.

The DS-1300D incubator shaker is suitable for applications in modern laboratories, research centres and production facilities. It offers a large shaking capacity with a small footprint and also many features allowing straightforward, safe handling of product.

•    Inside material is SUS304 and outside body is powder painting
•    The compressor will be delayed to start working if power cut and with timer for defrost. Using environmental protection cold-media R134a.
•    Three-point bearing transmission is adopted suitable for heavy loads and continuous duty.
•    Internal light provide clear chamber visibility
•    Tempered Safety Glass Window for operation view
•    Uses brushless AC motor for long durability and stable performance of the shaking system.
•    Touch Screen panel
•    With safety switch to stop shaking when opening door
•    Each machine operates independently if required .
•    Overheat and over low protector, built-in circulating fan for temperature stability.

DS-1300D

Data sheet

Timer
999 h / 999 min / 999 sec
Catalogue No.
5404005-1
Electrical Requirements
110V/60Hz
Net Weight (kg)
200 kg
External Dimensions (WxDxH) mm
1380 x 690 x 890 mm
Shelf ( Adjustable)
1 (Adjustable)
Illumination
Fluorescent Lamp 20 W
Heater
1200W each chamber
Shaking Methods
Orbital
Shaker Power Unit
Brushless motor
Shaker Controller
Microprocessor Digital LED
Temperature Display
LED 2-screen digital display actual and setting temperature
Temperature Controller
Touch Control; Digital Display with PID automatic regulation
Temperature Setting
Digital
Temperature Fluctuation (℃)
±1℃ (at 38℃)
Temperature Uniformity (℃)
±1℃ (at 38℃)
Temperature Stability (℃)
±1℃ (at 38℃)
Temperature Accuracy (℃)
±0.1℃ (38℃)
Temperature Range (℃)
Ambient+5℃~70℃
Capacity (liters)
300 liters
Platform Size (mm)
900 x 500 mm
Vibration Style
Orbital
Display and Control
LED Digital Display / On-Touch Control
Model
DS-1300D
Shaking Throw (mm)
50mm
Shaking Width (mm)
50mm
Speed Accuracy (rpm)
±1rpm (at 150rpm)
Speed Fluctuation (rpm)
±1rpm (at 150rpm)
Speed Setting
Digital
Speed Controller
Microprocessor Controlled Digital
Speed Display
Digital
Shaking Plate
900 x 500 mm
Inside Dimension (WxDxH) mm
1000 x 600 x 500 mm

    Inside material is SUS304 and outside body is powder painting
    The compressor will be delayed to start working if power cut and with timer for defrost. Using environmental protection cold-media R134a.
    Three-point bearing transmission is adopted suitable for heavy loads and continuous duty.
    Internal light provide clear chamber visibility
    Tempered Safety Glass Window for operation view
    Uses brushless AC motor for long durability and stable performance of the shaking system.
    Touch Screen panel
    With safety switch to stop shaking when opening door
    Each machine operates independently if required .
    Overheat and over low protector, built-in circulating fan for temperature stability.

Model

DS-1300D

DS-1300RD

Temperature Range (?)

Ambient+5?~70?

0?~70?

Temperature Accuracy (?)

±0.1?

Temperature Control

PID

Temperature Display

LED

Shaking Speed (rpm)

20~250 r.p.m

Shaking Width (mm)

50 mm

Timer

999 h / 999 min / 999 sec

Heater

1200 W

Illumination

Fluorescent lamp 20W

Refrigerator

N/A

1/3 HP

Volume

300 L

Shaking Plate Size (mm)

900 x 500 mm

Inside Dimension (WxDxH) (mm)

1000 x 600 x 500 mm

Outside Dimension (WxDxH) (mm)

1380 x 690 x 890 mm

Shelf

1(Adjustable)

Weight (kg)

200kg

280kg

Gross Weight (kg)





Shipping Weight (kg)





Shipping Dimensions (WxDxH) mm





Electrical Requirements

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

Catalogue No.

54040051

54040052

54040101

54040102

Model

DS-1300D

DS-1300RD

Temperature Range (?)

Ambient+5?~70?

0?~70?

Temperature Accuracy (?)

±0.1?

Temperature Control

PID

Temperature Display

LED

Shaking Speed (rpm)

20~250 r.p.m

Shaking Width (mm)

50 mm

Timer

999 h / 999 min / 999 sec

Heater (W)

1200 W

Illumination

Fluorescent lamp 20W

Refrigerator

N/A

1/3 HP

Volume

300 L

Shaking Plate Size (mm)

900 x 500 mm

Inside Dimension (WxDxH) mm

1000 x 600 x 500 mm

Ouside Dimension (WxDxH) mm

1380 x 690 x 890 mm

Shelf

1(Adjustable)

Net Weight (kg)

200kg

280kg

Gross Weight (kg)





Shipping Weight (kg)





Shipping Dimensions (WxDxH) (mm)





Electrical Requirements

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

Catalogue No.

54040051

54040052

54040101

54040102

Flask Capacity:

Flask Clamp

125ml

250ml

500ml

1000ml

2000ml

3000ml

4000ml

5000ml

DS-1300D(RD)

66

50

32

18

10

10

3

3

Model Image Name Product Detail Availability Price Action
54010A01 Stainless steel clamp for 50ml Erlenmeyer flask Stainless steel clamp for 50ml Erlenmeyer flask

Stainless steel clamp for 50ml Erlenmeyer flask

Price On Request
54010A02 Stainless steel clamp for 125ml Erlenmeyer flask Stainless steel clamp for 125ml Erlenmeyer flask

Stainless steel clamp for 125ml Erlenmeyer flask

Price On Request
54010A03 Stainless steel clamp for 250ml Erlenmeyer flask Stainless steel clamp for 250ml Erlenmeyer flask

Stainless steel clamp for 250ml Erlenmeyer flask

Price On Request
54010A04 Stainless steel clamp for 500ml Erlenmeyer flask Stainless steel clamp for 500ml Erlenmeyer flask

Stainless steel clamp for 500ml Erlenmeyer flask

Price On Request
54010A05 Stainless steel clamp for 1000ml Erlenmeyer flask Stainless steel clamp for 1000ml Erlenmeyer flask

Stainless steel clamp for 1000ml Erlenmeyer flask

Price On Request
54010A06 Stainless steel clamp for 2000ml Erlenmeyer flask Stainless steel clamp for 2000ml Erlenmeyer flask

Stainless steel clamp for 2000ml Erlenmeyer flask

Price On Request
54010A07 Stainless steel clamp for 3000ml Erlenmeyer flask Stainless steel clamp for 3000ml Erlenmeyer flask

Stainless steel clamp for 3000ml Erlenmeyer flask

Price On Request
54010A08 Stainless steel clamp for 4000ml Erlenmeyer flask Stainless steel clamp for 4000ml Erlenmeyer flask

Stainless steel clamp for 4000ml Erlenmeyer flask

Price On Request
54010A09 Stainless steel clamp for 5000ml Erlenmeyer flask Stainless steel clamp for 5000ml Erlenmeyer flask

Stainless steel clamp for 5000ml Erlenmeyer flask

Price On Request
54012A01 Shaker Platform with clamps 280x230mm Shaker Platform with clamps 280x230mm

Platform with clamps 280mm x 230mm, suitable for waterbath shakers and all other type of shakers

Price On Request
54012A04 Shaker Platform with clamps 380x280mm Shaker Platform with clamps 380x280mm

Platform with clamps 380mm x 280mm, suitable for TS-1420 benchtop shaking incubator

Price On Request
54012A05 Shaker Platform with clamps 380x280mm Shaker Platform with clamps 380x280mm

Platform with clamps 380mm x 280mm, suitable for TS-1420 benchtop shaking incubator

Price On Request
54013A01 Test Tube Rack 210mm x 90mm Test Tube Rack 210mm x 90mm

Test Tube Rack 210mm x 90mm with holes ∅ 30mm and ∅ 16mm

Price On Request
54013A02 Test Tube Rack 340mm x 90mm with holes ∅ 16mm Test Tube Rack 340mm x 90mm with holes ∅ 16mm

Test Tube Rack 340mm x 90mm with holes ∅ 16mm

Price On Request
54014A01 Non-Slip Mat Non-Slip Mat

Non-Slip Mat

Price On Request
54014A02 Non-Slip Mat for 96 well plate Non-Slip Mat for 96 well plate

Non-Slip Mat for 96 well plate

Price On Request
