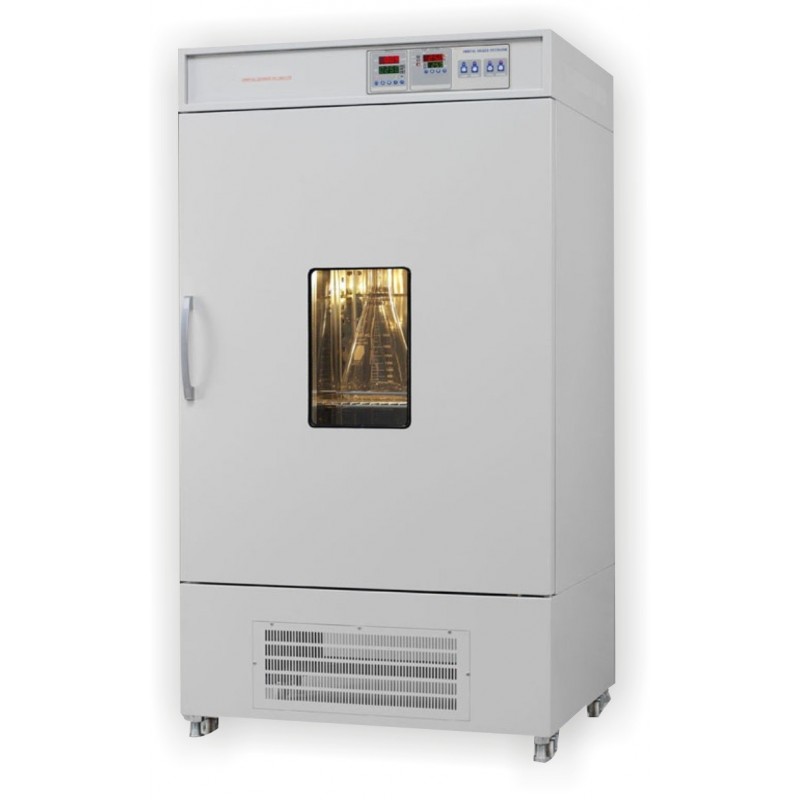

Large Capacity Upright Shaking Incubator LS-3500D, 110V/60Hz
$9,642.00
The Large Capacity Upright Shaking Incubator LS-3500D is suitable for cell culturing, cell aeration, and solubility studies. In addition to offering stable temperature conditions, the Iris incubator shakers use an orbital agitation at variable speeds to affect the growth of cell cultures.
The Iris Large Capacity Upright Shaking Incubator LS-3500D is suitable for cell culturing, cell aeration, and solubility studies. In addition to offering stable temperature conditions, the Iris incubator shakers use an orbital agitation at variable speeds to affect the growth of cell cultures.
The LS-3500D Large Capacity Upright Shaking Incubator is suitable for applications in modern laboratories, research centres and production facilities. It offers a large shaking capacity with a small footprint and also many features allowing straightforward, safe handling of product.
• Inside material is SUS304 and outside body is powder painting
• The compressor will be delayed to start working if power cut and with timer for defrost. Using environmental protection cold-media R134a.
• Three-point bearing transmission is adopted suitable for heavy loads and continuous duty.
• Internal light provide clear chamber visibility
• Tempered Safety Glass Window for operation view
• Uses brushless AC motor for long durability and stable performance of the shaking system.
• Touch Screen panel
• With safety switch to stop shaking when opening door
• Each machine operates independently if required .
• Overheat and over low protector, built-in circulating fan for temperature stability.
LS-3500D
Data sheet
- Timer
- 999 h / 999 min / 999 sec
- Catalogue No.
- 5405015-1
- Electrical Requirements
- 110V/60Hz
- Net Weight (kg)
- 280 kg
- External Dimensions (WxDxH) mm
- 940 x 800 x 1840 mm
- Shelf ( Adjustable)
- 2
- Illumination
- Fluorescent Lamp 20 W
- Heater
- 1600W
- Shaking Methods
- Orbital
- Shaker Power Unit
- Brushless motor
- Shaker Controller
- Microprocessor Digital LED
- Temperature Display
- LED 2-screen digital display actual and setting temperature
- Temperature Controller
- Micro-computer PID temperature controller
- Temperature Setting
- Digital
- Temperature Fluctuation （℃）
- ±1℃ (at 38℃)
- Temperature Uniformity (℃)
- ±1℃ (at 38℃)
- Temperature Stability (℃)
- ±1℃ (at 38℃)
- Temperature Accuracy (℃)
- ±0.1℃ (38℃)
- Temperature Range (℃)
- Ambient+5℃~70℃
- Capacity (liters)
- 560 liters
- Platform Size (mm)
- 740 x 480 mm
- Vibration Style
- Orbital
- Display and Control
- LED Digital Display / On-Touch Control
- Model
- LS-3500D
- Shaking Throw (mm)
- 50mm
- Shaking Width (mm)
- 50mm
- Speed Accuracy (rpm)
- ±1rpm (at 150rpm)
- Speed Fluctuation (rpm)
- ±1rpm (at 150rpm)
- Speed Setting
- Digital
- Speed Controller
- Microprocessor Controlled Digital
- Speed Display
- Digital
- Shaking Plate
- 740 x 480 mm
- Inside Dimension (WxDxH) mm
- 860 x 600 x 1100 mm
- Platform
- Double
Inside material is SUS304 and outside body is powder painting
The compressor will be delayed to start working if power cut and with timer for defrost. Using environmental protection cold-media R134a.
Three-point bearing transmission is adopted suitable for heavy loads and continuous duty.
Internal light provide clear chamber visibility
Tempered Safety Glass Window for operation view
Uses brushless AC motor for long durability and stable performance of the shaking system.
Touch Screen panel
With safety switch to stop shaking when opening door
Each machine operates independently if required .
Overheat and over low protector, built-in circulating fan for temperature stability.
Model | LS-3500 | LS-3500R | LS-3500D | LS-3500RD | LS-3800 | LS-3800D | LS-3800R | LS-3800RD | ||||||||
Platform | Single | Double | Single | Double | ||||||||||||
Platform | Ambient +5?~70? | 0?~70? | Ambient +5?~70? | 0?~70? | Ambient +5?~70? | 0?~70? | Ambient +5?~70? | 0?~70? | ||||||||
Platform | Single | Double | Single | Double | ||||||||||||
| Temperature Range (?) | (D) Ambient + 5?~70? / (RD) 0?~70? | |||||||||||||||
| Temperature Accuracy | ±0.1? | |||||||||||||||
| Temperature Control | Micro-computer PID temperature controller | |||||||||||||||
| Temperature Display | LED 2-screen digital display actual and setting temperature | |||||||||||||||
Shaking Speed | 20~250 r.p.m | 20~150 r.p.m | 20~250 r.p.m | 20~150 r.p.m | ||||||||||||
Shaking Width | 50 mm | |||||||||||||||
Timer | 999 h / 999 min / 999 sec | |||||||||||||||
Heater | 1600 W | |||||||||||||||
Illumination | Fluorescent lamp 20W | |||||||||||||||
SHELF ( Adjustable) | 2 | 1 | 2 | 1 | ||||||||||||
Volume (L) | 560 L | 560 L | 834L | 834L | ||||||||||||
Refrigerator | N/A | 1/3 HP | N/A | 1/2 HP | ||||||||||||
Shaking Plate Size mm | 740 x 480 mm | 960 x 600 mm | ||||||||||||||
Inside Dimension (WxDxH) mm | 860 x 600 x 1100 mm | 1100 x 690 x 1100 mm | ||||||||||||||
Outside Dimension (WxDxH) | 940 x 800 x 1840 mm | 1190 x 920 x 1840 mm | ||||||||||||||
Weight (kg) | 280kg | 300kg | ||||||||||||||
Electrical Requirements | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz |
Catalogue No. | 54050051 | 54050052 | 54050101 | 54050102 | 54050151 | 54050152 | 54050201 | 54050202 | 54050251 | 54050252 | 54050301 | 54050302 | 54050351 | 54050352 | 54050401 | 54050402 |
| Model | LS-3500 | LS-3500R | LS-3500D | LS-3500RD | LS-3800 | LS-3800D | LS-3800R | LS-3800RD | ||||||||
| Platform | Single | Double | Single | Double | ||||||||||||
| Temperature Range (?) | Ambient +5?~70? | 0?~70? | Ambient +5?~70? | 0?~70? | Ambient +5?~70? | 0?~70? | Ambient +5?~70? | 0?~70? | ||||||||
| Platform | Single | Double | Single | Double | ||||||||||||
| Temperature Accuracy (?) | ±0.1? | |||||||||||||||
| Temperature Control | Micro-computer PID temperaturecontroller | |||||||||||||||
| Temperature Display | LED 2-screen digital display actual and settingtemperature | |||||||||||||||
| Shaking Speed | 20~250 r.p.m | 20~150 r.p.m | 20~250 r.p.m | 20~150 r.p.m | ||||||||||||
| ShakingWidth | 50 mm | |||||||||||||||
| Timer | 999 h / 999 min / 999 sec | |||||||||||||||
| Heater | 1600 W | |||||||||||||||
| Illumination | Fluorescent lamp 20W | |||||||||||||||
| SHELF ( Adjustable) | 2 | 1 | 2 | 1 | ||||||||||||
| Volume | 560 L | 560 L | 834L | 834L | ||||||||||||
| Refrigerator | N/A | 1/3 HP | N/A | 1/2 HP | ||||||||||||
| Shaking PlateSize | 740 x 480 mm | 960 x 600 mm | ||||||||||||||
| Inside Dimension (WxDxH) | 860 x 600 x 1100 mm | 1100 x 690 x 1100 mm | ||||||||||||||
| Outside Dimension (WxDxH) | 940 x 800 x 1840 mm | 1190 x 920 x 1840 mm | ||||||||||||||
| Weight(Approx.) | 280kg | 300kg | ||||||||||||||
| Electrical Requirements | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz |
| Catalogue No. | 5405005-1 | 5405005-2 | 5405010-1 | 5405010-2 | 5405015-1 | 5405015-2 | 5405020-1 | 54050202 | 54050251 | 54050252 | 54050301 | 54050302 | 54050351 | 54050352 | 54050401 | 54050402 |
Flask Capacity:
| Flask Clamp | 125ml | 250ml | 500ml | 1000ml | 2000ml | 3000ml | 4000ml | 5000ml |
| LS-3500(R)D(RD) | 48 | 40 | 24 | 12 | 9 | 6 | 6 | 4 |
| LS-3500(R)D(RD) | 96 | 60 | 40 | 24 | - | - | - | - |
| LS-3800(R)D(RD) | 78 | 50 | 36 | 18 | 10 | 10 | 8 | 8 |
| LS-3800(R)D(RD) | 156 | 100 | 72 | 36 | - | - | - | - |
