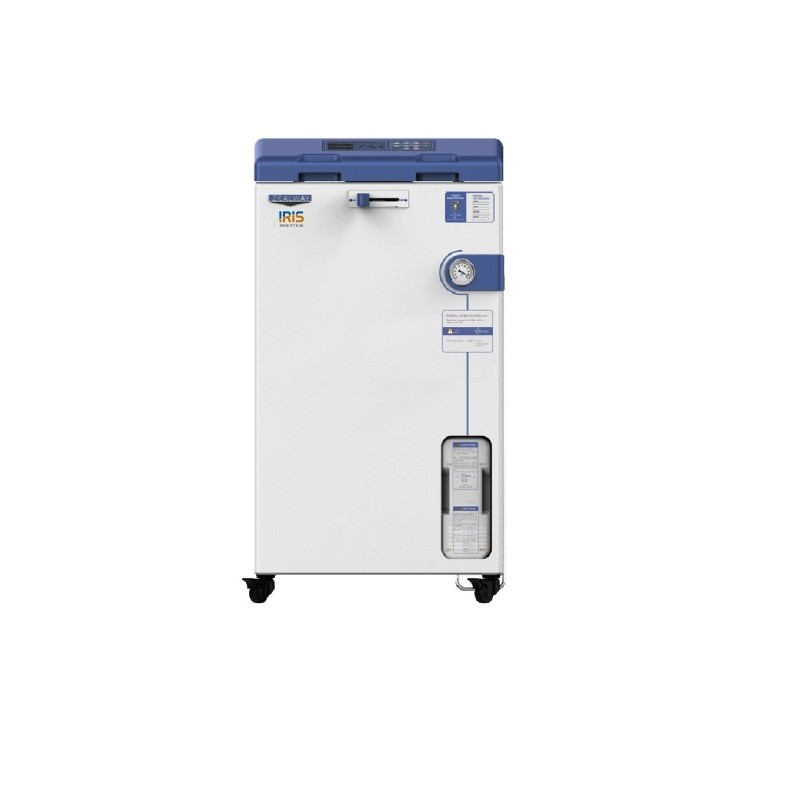

Vertical Autoclave/Steam sterilizers IVA-2600WC are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply. Equipped with an effective air-cooling system for liquid sterilisation. This speeds cooling time by up to 40% compared to standard models. The Iris Vertical Autoclaves are available in 110 liters, chamber capacity. All are built with castor wheels as standard making them easy to move.
The IVA-2600WC is widely used for sterilisation applications in laboratory, hospitals, and clinics as well as for industrial sterilisation applications in biotechnology and pharmaceutical industries. Comes with sterilization cycle including Solid cycle, Liquid cycle, Liquid with warming cycle, Agar cycle, Solid with drying (for WC model),Medical waste cycle, Customized cycle.
Data sheet
Model | IVA-2200 | IVA-2200C | IVA-2200WC | IVA-2400 | IVA-2400C | IVA-2400WC | IVA-2600 | IVA-2600C | IVA-2600WC |
Capacity | 60 L | 85 L | 110 L | ||||||
Chamber Capacity | 400x505 mm | 400x700 mm | 400x895 mm | ||||||
Materials | SUS 304 | ||||||||
Sterilization Cycle | Solid cycle, Liquid cycle, Liquid with warming cycle, Agar cycle, Solid with drying (for WC model),Medical waste cycle, Customized cycle | ||||||||
Temperature Accuracy | 0.1? | ||||||||
Melting Temperature | 60 to 100? | ||||||||
Melting Time | 1 to 6000 minutes | ||||||||
Operating Pressure | 0.27Mpa | ||||||||
Maximum Pressure | 0.35Mpa | ||||||||
Steel Basket | 2x(360x200) | 2x(360x280) | 3x(360x250) | ||||||
Sterilization Tem | 105-138? | ||||||||
Sterilization Time Range | 1 to 6000 minutes | ||||||||
Drying Temp | 80 to 140? | ||||||||
Drying Time Range | 1 to 300 minutes | ||||||||
Working Temperature | 5 to 45? | ||||||||
Humidity | 10 to 85% | ||||||||
Certification | - | - | - | - | - | - | - | - | - |
Power Consumption | 2900 W | 4600 W | 4600 W | ||||||
Dimension | 660x644x980 mm | 660x831x980 mm | 660x644x980 mm | 660x831x980 mm | 660x644x1180 mm | 660x831x1180 mm | |||
Electrical Requirement | 220V,16A, 50/60HZ | 220V,32A?50/60HZ | 220V,32A?50/60HZ | ||||||
Catalogue No. | 580450502 | 580451002 | 580451502 | 580452002 | 580452502 | 580453002 | 580453502 | 580454002 | 580454502 |
