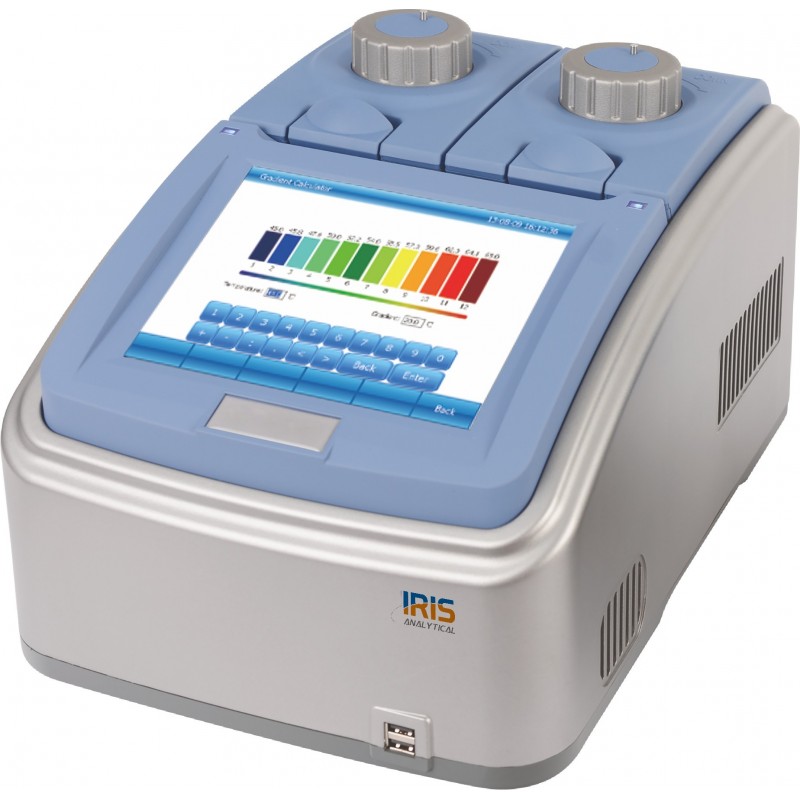

Dual Block Thermal Cyclers ITCM-4020D accommodates 60×0.5 ml, this block is completely independently of each other and without interference Fabricated with anodizing technology that have prompt heating conducting and adequate corrosion resistance property.
Dual Block Thermal Cyclers ITCM-4020D has been used in PCR applications in research and development, food science, pharmaceuticals, life science, animal diagnostics, and analytical laboratories. Features with customized Marlow Peltier heating units and form 4 circuits to control 4 temperature zones with vibrant touch LCD display and maximum ramping rate 5 ℃/s.
Dual Block Thermal Cyclers ITCM-4020D accommodates 60×0.5 ml, this block is completely independently of each other and without interference Fabricated with anodizing technology that have prompt heating conducting and adequate corrosion resistance property.
Data sheet
| Model | ITCM-4005D | ITCM-4010D | ITCM-4015D | ITCM-4020D | ITCM-4025D | ITCM-4030D | ITCM-4035D | ITCM-4040D | ITCM-4045D | ITCM-4050D | ||||||
| Capacity | 96×0.2 ml | 60×0.5 ml | 2×48×0.2 ml | 48×0.2 ml + 30×0.5 ml | 384 well, In-situ Plate | |||||||||||
| Display | LCD, 8 inch, 800×600 pixels | |||||||||||||||
| Temperature Range | 0 to 100? | |||||||||||||||
| Number of Program | 10000 +(USB FLASH) | |||||||||||||||
| Uniformity | ? ± 0.2? | |||||||||||||||
| Accuracy | ? ± 0.1? | |||||||||||||||
| Resolution | 0.1? | |||||||||||||||
| Number of Cycle | 100 | |||||||||||||||
| Number of Step | 30 | |||||||||||||||
| Holding Temperature | 4? | |||||||||||||||
| Temperature Control | BlockTube | |||||||||||||||
| Heating Rate | 5?/s | |||||||||||||||
| Cooling Rate | 4?/s | |||||||||||||||
| Ramping Rate Adjustable | 0.1 to 5? | |||||||||||||||
| Gradient Temp. Range | - | 30 to 100? | - | 30 to 100? | - | 30 to 100? | - | 30 to 100? | - | 30 to 100? | ||||||
| Gradient Uniformity | - | ?±0.2? | - | ?±0.2? | - | ?±0.2? | - | ?±0.2? | - | ?±0.2? | ||||||
| Gradient Accuracy | - | ?±0.2? | - | ?±0.2? | - | ?±0.2? | - | ?±0.2? | - | ?±0.2? | ||||||
| Gradient Spread | - | 1 to 30? | - | 1 to 30? | - | 1 to 30? | - | 1 to 30? | - | 1 to 30? | ||||||
| Hot Lid Height Adjustable | Step less Adjustable | |||||||||||||||
| Hot Lid Temperature | 30 to 110? | |||||||||||||||
| Connectivity | USB 2.0, LAN | |||||||||||||||
| Temp Increment/Decrement | 0.1 to 10.0? | |||||||||||||||
| Increase/Decrease in Time | 1 Sec to 600 Sec | |||||||||||||||
| Power consumption | 600 W | |||||||||||||||
| Overall Dimensions | 390×270×255 mm | |||||||||||||||
| Net Weight | 9 kg | |||||||||||||||
| Electrical Requirements | 264 V AC , 47 to 63 Hz | |||||||||||||||
| Catalogue No. | 620300503 | 620301003 | 620301503 | 620302003 | 620302503 | 620303003 | 620303503 | 620304003 | 620304503 | 620305003 | ||||||
