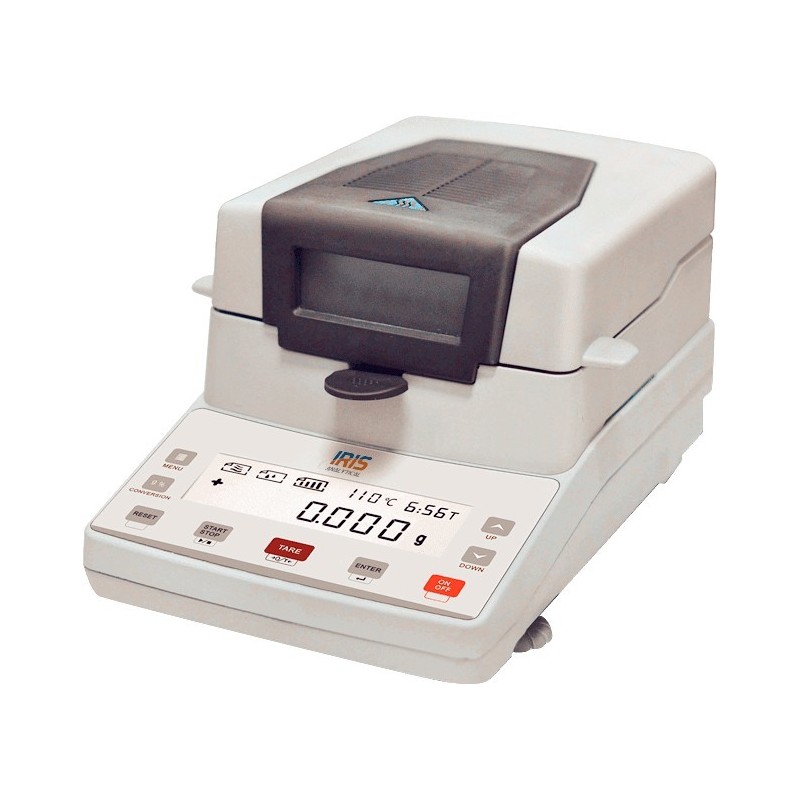

Moisture Balance IBMH-1300 measures moisture content with increased precision and efficiency with halogen-infrared heat source features, PT100 sensor to ensure process repeatability and wide data storage capacity along with LCD to display time, temperature and weighing results all at a time.
Moisture Balance IBMH-1300 measures moisture content with increased precision and efficiency with halogen-infrared heat source features, PT100 sensor to ensure process repeatability and wide data storage capacity along with LCD to display time, temperature and weighing results all at a time. Application area including biology, food, agriculture, pharmacy, textile, dye and research industries to resolve moisture content in a product. A single 400 W halogen lamp heats samples at 1 °C selectable rises. Equipped with color keys to enable quick recognition. Temperature range 5 to 35℃ and have capacity to weigh up to about 110 g with readability 5 mg, 2 mg , and 1 mg.
Iris moisture balance is perfect for measuring moisture in most products including grains, pharmaceuticals, soils, sludge and chemicals. The amount of moisture in a product can greatly affect perceived quality. This measurement is key in quality control process of material as it qualifies quality or purity of a product.
There are different types of heating elements to be considered: ceramic, halogen and quartz elements. Each element offers heating properties so you should consider your application before choosing the appropriate one. Our tech support team can help you to select the relevant model.
Data sheet
Food:
Pulp/Paper:
Chemicals:
Pharmaceuticals:
Model | IBMH-1100 | IBMH-1200 | IBMH-1300 | ||||
Capacity | 110 g | ||||||
Moisture Range | 0.00 to 100 % | ||||||
Operating Temperature | 5 to 35? | ||||||
Temperature Range | 40 to 199? | ||||||
Dry Residual | 100 to 0.00 % | ||||||
Resolution | 5 mg | 2 mg | 1 mg | ||||
Moisture Readability | 0.10% | 0.04% | 0.01% | ||||
Dry Residual Readability | 0.10% | 0.04% | 0.01% | ||||
Display | Backlight LCD | ||||||
Heat Source | 1-Halogen Lamp | ||||||
Pan Dimension | 90 mm diameter | ||||||
Sensor | PT-100 | ||||||
Temperature Step | 1? | ||||||
Auto stop | 0.1 to 9.9% within 1 minute | ||||||
ATRO | 100 to 999 % | ||||||
ATRO | 0 to 999 % | ||||||
No. of Storage Data | 15 | ||||||
Certification | CE certified | ||||||
Time Range | 1 to 99 min by 1 sec step | ||||||
Power Consumption | 400 W | ||||||
Dimension | 490×360×350 mm | ||||||
Weight | 7.5 kg | ||||||
Electrical Requirement of Balance | 115V/50Hz | 220V/50Hz, | 115V/50Hz | 220V/50Hz, | 115V/50Hz | 220V/50Hz, | |
Catalogue No. | 6801400501 | 6801400502 | 6801401001 | 6801401002 | 6801401501 | 6801401502 | |
| Model | IBMH-1100 | IBMH-1200 | IBMH-1300 | ||||
| Capacity | 110 g | ||||||
| Moisture Range | 0.00 to 100 % | ||||||
| Operating Temperature | 5 to 35? | ||||||
| Temperature Range | 40 to 199? | ||||||
| Dry Residual | 100 to 0.00 % | ||||||
| Resolution | 5 mg | 2 mg | 1 mg | ||||
| Moisture Readability | 0.10% | 0.04% | 0.01% | ||||
| Dry Residual Readability | 0.10% | 0.04% | 0.01% | ||||
| Display | Backlight LCD | ||||||
| Heat Source | 1-Halogen Lamp | ||||||
| Pan Dimension | 90 mm diameter | ||||||
| Sensor | PT-100 | ||||||
| Temperature Step | 1? | ||||||
| Auto stop | 0.1 to 9.9% within 1 minute | ||||||
| ATRO | 100 to 999 % | ||||||
| ATRO | 0 to 999 % | ||||||
| No. of Storage Data | 15 | ||||||
| Certification | CE certified | ||||||
| Time Range | 1 to 99 min by 1 sec step | ||||||
| Power Consumption | 400 W | ||||||
| Dimension | 490×360×350 mm | ||||||
| Weight | 7.5 kg | ||||||
| Electrical Requirement of Balance | 115V/50Hz | 220V/50Hz, | 115V/50Hz | 220V/50Hz, | 115V/50Hz | 220V/50Hz, | |
| Catalogue No. | 6801400501 | 6801400502 | 6801401001 | 6801401002 | 6801401501 | 6801401502 | |
