Microcentrifuge IBMC-5100 design with interchangeable rotors for procedure with 1.5 ml microtubes and 0.5 ml PCR strip tubes with adjustable timing and RPM during operation anytime, as well as to check centrifugal force without stopping the machine.
The IBMC-5100 use in different applications PCR laboratories, clinical research and molecular biology and general cell culture applications. For safety we introduced electronic door lock. Available different accessories which can accommodate 18×0.5ml, 12×1.5ml multiple tube strips.
Accessories
140700502
Data sheet
- Catalogue No.
- 140700502
- Electrical Requirements
- AC 220±22V 50/60Hz 3A
- Power
- 150 W
- Gross Weight (kg)
- 12 kg
- Net Weight (kg)
- 10 kg
- External Dimemsions (HxLxW) mm
- 415×370×315 mm
- Timer
- 1 to 99 min
- Rotor
- R1: 12×1.5ml; 16000rpm/17800×g, R2: 24×1.5ml; 14000rpm/18757×g
- Capacity
- 24×1.5ml
- Max RCF
- 18757×g
- Speed Range (rpm)
- 16000rpm
- Model
- IBMC-5100
- Product Type
- Micro centrifuge
-
Energy efficient AC brushless regulating motor
-
Available with 10 profile for acceleration and 10 for deceleration, high efficiency
-
40 groups of program storage space, users can program and adjust freely
-
Protective electronic with lock door, electric door with imbalance protection to provide more protection and safety along with automatic balancing without the need for trimming
-
Designed digital LED screen to show various information including running time, speed, RCF
-
Available 15 memory slots for your personal settings
-
Eco friendly with high efficiency refrigerating system, able to maintain temperature under 0? during maximum RPM
-
Centrifugal chamber are constructed with stain less steel
-
Designed with air exhaust temperature and low noise compressor
-
Small foot print and easy handling
Model | IBMC-5100 | IBMC-5160 | IBMC-5170 | IBMC-5160R |
Capacity | 24×1.5ml | 10/12×5ml | 10×5ml | 10/12×5ml |
Max RCF | 18757×g | 18757×g | 19515×g | 18757×g |
Speed Range | 16000rpm | 16500rpm | 17000rpm | 16000rpm |
Noise | < 60dB?A) | ? 65dB?A? | ||
Rotor Diameter | 160 mm | 200 mm | 200 mm | 160 mm |
Temperature Range | - | -20? to 40? | ||
Revolutions/min | ±20 rpm | |||
Temperature Accuracy | - | ±1.0? | ||
Timer | 1 to 99 min | |||
Power Consumption | 150 W | 250 W | 250 W | 400 W |
Internal Dimension | 315×270×240 mm | 315×270×240 mm | 315×270×240 mm | 510X280X270 mm |
External Dimension | 415×370×315 mm | 380×350×300 mm | 380×350×300 | 610X380X370 mm |
Net Weight | 10kg | 11kg | 11kg | 40 kg |
Gross Weight | 12kg | 13kg | 15kg | 45 kg |
Electrical Requirement | AC 220±22V 50/60Hz 3A | AC 220±22V 50/60Hz 10A | ||
Catalogue No. | 140700502 | 140701002 | 140701502 | 140702002 |
| Model | IBMC-5100 | IBMC-5160 | IBMC-5170 | IBMC-5160R |
| Capacity | 24×1.5ml | 10/12×5ml | 10×5ml | 10/12×5ml |
| Max RCF | 18757×g | 18757×g | 19515×g | 18757×g |
| Speed Range | 16000rpm | 16500rpm | 17000rpm | 16000rpm |
| Noise | < 60dB?A) | ? 65dB?A? | ||
| Rotor | R1: 12×1.5ml; 16000rpm/17800×g, R2: 24×1.5ml; 14000rpm/18757×g | Angle R1:12/16×1.5/2.2ml; 16500rpm/18360×g Angle R2: 10/12×5ml; 15000rpm/15940×g Angle R3:24×1.5/2.2ml; 14000rpm/18757×g | Angle R1: 12×1.5/2.2ml; 17000rpm/19515×g Angle R2: 10x5ml; 15000rpm/15940xg
| Angle R1: 12/16×1.5/2.2ml; 16000rpm/17800×g Angle R2: 18×0.5ml; 15000rpm/14080×g Angle R3: 10/12×5ml; 15000rpm/15940×g Angle R4: 24×1.5/2.2ml; 14000rpm/18757×g
|
| Rotor Diameter | 160 mm | 200 mm | 200 mm | 160 mm |
| Temperature Range | - | -20? to 40? | ||
| Revolutions/min | ±20 rpm | |||
| Temperature Accuracy | - | ±1.0? | ||
| Timer | 1 to 99 min | |||
| Power Consumption | 150 W | 250 W | 250 W | 400 W |
| Internal Dimension | 315×270×240 mm | 315×270×240 mm | 315×270×240 mm | 510X280X270 mm |
| External Dimension | 415×370×315 mm | 380×350×300 mm | 380×350×300 | 610X380X370 mm |
| Net Weight | 10kg | 11kg | 11kg | 40 kg |
| Gross Weight | 12kg | 13kg | 15kg | 45 kg |
| Electrical Requirement | AC 220±22V 50/60Hz 3A | AC 220±22V 50/60Hz 10A | ||
| Catalogue No. | 140700502 | 140701002 | 140701502 | 140702002 |
| Model | Image | Name | Product Detail | Availability | Price | Action |
| 140700502 |
|

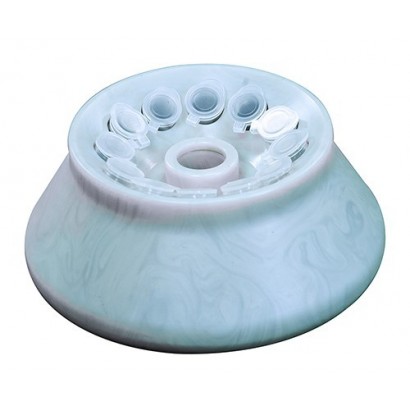

Angle Rotor 1 |
12×1.5ml; 16000rpm/17800×g |
3-4 Weeks |
Price On Request |
|
| 140700502 |
|

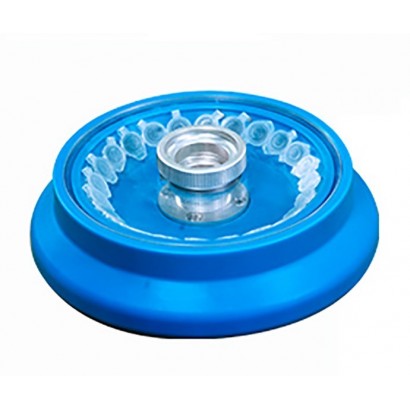

Angle Rotor 2 |
24×1.5ml; 14000rpm/18757×g |
3-4 Weeks |
Price On Request |
|
