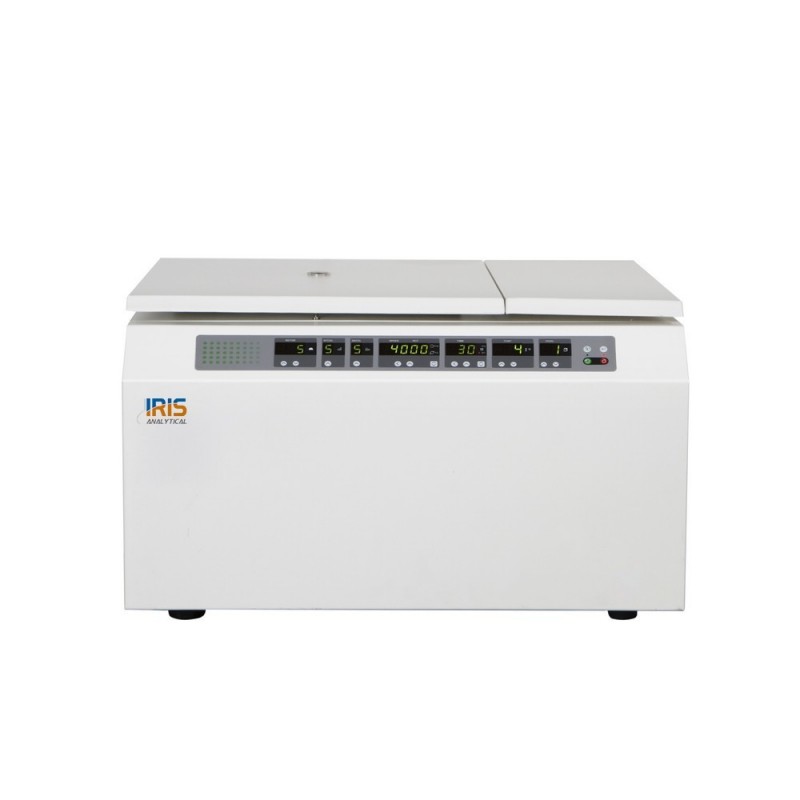

Benchtop Low Speed Refrigerated Centrifuge IBRLC-1850 is a refrigerated centrifuge with touch display for gentle acceleration and deceleration. Equipped with compressors, CFC-free refrigerants, refrigerating or heating double loop, which make the machine heat and cool fast and have low noise as well as small vibration high precision.
Benchtop Low Speed Refrigerated Centrifuge IBRLC-1850 is a refrigerated centrifuge with touch display for gentle acceleration and deceleration. Equipped with compressors, CFC-free refrigerants, refrigerating or heating double loop, which make the machine heat and cool fast and have low noise as well as small vibration high precision. The IBRLC-1000is sealed and can function at low RPM owing to the ability to reduce the heat produced by higher rotation speeds worked under temperature range -20℃ to 40℃. Accommodates angle, swing rotor and swing-out ELISA plate rotor as these motor capable of accommodating a great number of tubes at once. Suitable for used in radio-immunity, biochemistry, blood products, environmental protection and other research and manufacturing institutions.
Rotors
|
Rotor |
Capacity |
Max Speed |
Max RCF |
||
|
NO. 1 Swing-out Rotor |
4x100ml, 4x50ml
|
5000 rpm |
4650Xg |
||
|
NO. 2 Swing-out Rotor
|
8x50ml, 8x100ml, 24x15ml, 32x15ml |
4000 rpm |
2980Xg |
||
|
NO. 3 Swing-out Rotor
|
4x250ml (with a wind cover) |
5000 rpm |
5200Xg |
||
|
Adaptor |
4x50 ml, 8x50 ml(Round bottom), 4x100 ml,36x10ml, 40x7 ml, Blood collection tube |
||||
|
|
48x7mlBlood collectiontube, 64x7ml Blood collection tube |
4000 rpm |
3100Xg |
||
|
NO. 4 Swing-out ELISA plate Rotor
|
2x2x96 holes |
4000rpm |
1970Xg |
||
|
NO.5 Swing-out Rotor |
Round hang cup |
4x500ml
|
4000 rpm |
3400Xg |
|
|
Adaptor
|
4x250ml, 12x50ml, 36x15ml, 76x7ml Blood collection tube
|
||||
|
Square hang basket
|
16x50ml, 40x15ml,80x7ml Blood collection tube, 112x7ml Blood collection tube, 100x1.5ml
|
||||
|
Hang cup
|
148x5ml Radio-immunity tube, 96x7ml Blood collection tube |
||||
|
ELISA plate rack
|
4x2x96 holes |
||||
|
NO. 6 Angle Rotor |
4x750ml
|
4000 rpm |
3500Xg |
||
|
Adaptor
|
8x100ml, 16x50ml, 40x15ml, 96x7ml Blood collection tube, 148x5ml Radio-immunity tube |
||||
|
NO. 7 Swing-out Rotor
|
6x250ml
|
4000 rpm |
3580Xg |
||
|
Adaptor
|
60x7ml Blood collection tube, 42x10ml, 24x15ml, 6x50ml, 12x50ml(Round bottom), 6x100ml |
||||
|
NO. 8 Angle Rotor(IBRLC-1850)
|
12x15ml |
6000 rpm |
5120Xg |
||
Data sheet
| Model | IBRLC-1250 | IBRLC-1450 | IBRLC-1650 | IBRLC-1850 |
| Capacity | 4x250ml | 4x750ml(4000rpm) | 8x100ml (4000 rpm) | 4x750ml(4000rpm) |
| Max RCF | 5200 Xg | 5200 Xg | 5120 Xg | 5200 Xg |
| Speed Range | 5000 rpm | 5000 rpm | 6000 rpm | 6000 rpm |
| Noise | ?60 dB?A? | |||
| Temperature Range | -20? to 40? | |||
| Revolutions/min | ±10 rpm | |||
| Temperature Accuracy | ±1? | |||
| Timer | 1 to 99H, 59 min/inching | |||
| Dimension | 550x700x420 mm | 600x750x420 mm | 640x560x390 mm | 600x750x420 mm |
| Weight | 90 kg | 90 kg | 80 kg | 90 kg |
| Electrical Requirement | AC 220V 50HZ 15A | |||
| Catalogue No. | 1401100502 | 1401101002 | 1401101502 | 1401102002 |
