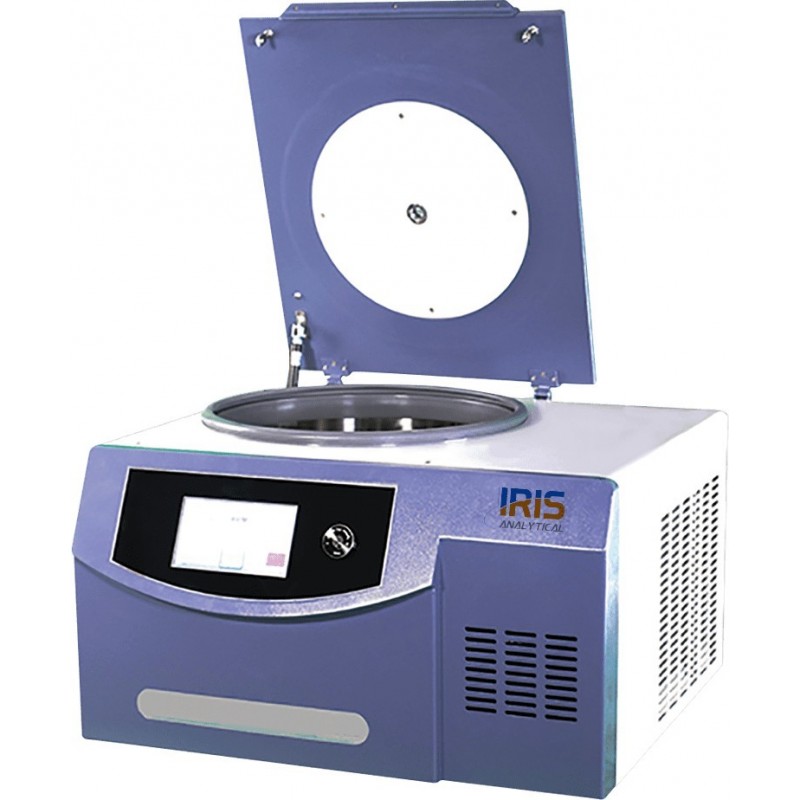

Benchtop Low Speed Refrigerated Centrifuge IBRLC-2400 compact and small footprint refrigerated centrifuge with maximum capacity of 4×750ml. Designed with lock function, self-diagnostic function, and Automatic identification system for magnetic rotor, automatic matching of corresponding rotor program, preventing misoperation and ensuring centrifugal safety. Suitable for clinical medicine, biochemistry, genetic engineering, immunological applications. Features with 7-inch touch screen with multi-functional knob combination parameters.
The IBRLC-2400 is sealed and can function at low RPM owing to the ability to reduce the heat produced by higher rotation speeds worked under temperature range -20℃ to 40℃. Accommodates angle, swing rotor and swing out rotor with multi-pipe frame as these motor capable of accommodating a great number of tubes at once. Available with 15 profiles for acceleration and for deceleration with high efficiency.
Rotors
|
Rotor |
Capacity
|
Max Speed |
Max RCF |
|
|
Angle rotor 1 |
6×50 ml, 12×10 ml
|
6500 rpm |
5190×g |
|
|
Swing out Rotor with Multi-Pipe Frame 2
|
4×50ml, 4×100ml, 8×50ml, 8×100ml, 16×10/15ml, 24×10/15ml, 32×10/15ml (option) |
4000 rpm |
2810×g |
|
|
Swing out rotor
|
Rotor 3 |
4×250ml, 72×5/7ml （blood tube） |
4000 rpm |
3500×g |
|
Rotor 4
|
4×500/750ml, 96×5/7ml （blood tube), 120×5/7ml Hanging cup |
4000 rpm |
3580×g |
|
|
Rotor 5
|
2×2×96 holes Enzyme plate |
4000 rpm |
2300×g |
|
|
Rotor 6
|
4×2×96 holes Enzyme rotor |
4000 rpm |
3550×g |
|
Data sheet
| Model | IBRLC-2400 |
| Capacity | 4×750ml |
| Max RCF | 5190×g |
| Speed Range | 6500 rpm |
| Noise | ?58dB?A? |
| Rotor Diameter | 430 mm |
| Temperature Range | -20? to 40? |
| Revolutions/min | ±10 rpm |
| Temperature Accuracy | ±1.0? |
| Timer | 1min to 99h, 59min, 59s |
| Power Consumption | 1500 W |
| Dimension | 670×700×450 mm |
| Packing Dimension | 747×777×544 mm |
| Net Weight | 106 kg |
| Electrical Requirement | AC 220±22V 50Hz 15A |
| Catalogue No. | 1401150502 |
