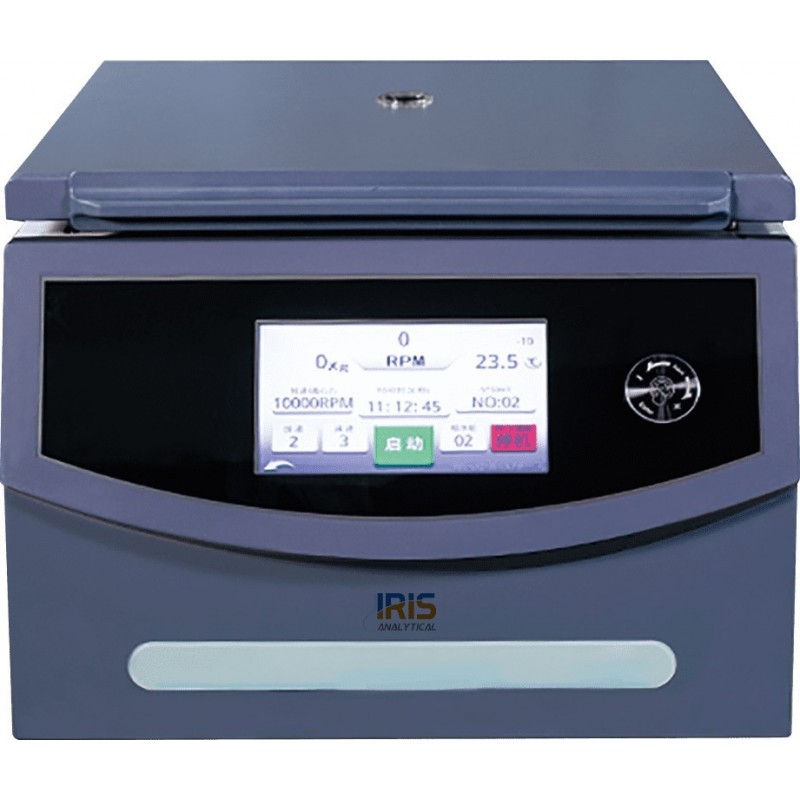

Benchtop High Speed Centrifuge IBHC-5250 small footprint and compact centrifuge of capacity from 6×50ml to 4×750ml with maximum speed ranging 21000 rpm. Designed with lock function, self-diagnostic function, and Automatic identification system for magnetic rotor, automatic matching of corresponding rotor program, preventing misoperation and ensuring centrifugal safety. Suitable for clinical medicine, biochemistry, genetic engineering, immunological applications. Features with touch screen with multi-functional knob combination parameters. Available with 15 profiles for acceleration and for deceleration with high efficiency. For safety we introduced electronic door lock function and, imbalance detection, over-speed protection, inching function, short-spin function. Storages up to 99 program groups, 99 use records programming space and accommodates angle, swing out rotor, Elisa plate Rotor, and Enzyme plate; Square Hanging Basket. Suitable for clinical medicine, biochemistry, genetic engineering, immunological applications.
Rotors
|
Model |
IBHC-5050 |
IBHC-5150 |
IBHC-5250 |
IBHC-5350 |
|
Rotor |
Angle Rotor 1: 12×5ml; 16500rpm; 15720×g Angle Rotor 2:24×1.5/2.2ml; 15000rpm; 20625×g Angle Rotor 3:4×8×0.2ml PCR; 14000rpm; 14395×g |
Angle Rotor 1:12×1.5/2.2ml; 18500rpm; 23110×g Angle Rotor 2:24×1.5/2.2ml; 15000rpm; 20625×g Angle Rotor 3:12×5ml; 16000rpm; 17888×g Angle Rotor 4:12×10ml; 14000rpm; 17635×g Angle Rotor 5:6×50ml(Sharp/Round type);13000rpm; 17760×g Angle Rotor 6:12×15(Sharp type); 12000rpm; 15775×g Angle Rotor 7:4×100ml; 12000rpm; 16175×g Swing out Rotor 8:8×50ml(Sharp type); 4000rpm; 2680×g Elisa plate Rotor 9: 2×2×96 hole; 4000rpm; 2300×g Elisa plate Rotor 10:4×50ml+16×15ml; 4000rpm; 2810×g |
Angle Rotor 1:16×1.5/2.2ml; 20000rpm; 30185×g Angle Rotor 2:36×1.5/2.2ml; 14000rpm; 19280×g Angle Rotor 3:12×5ml; 18000rpm; 22640×g Angle Rotor 4:12×15ml(Sharp Type); 12000rpm; 15775×g Angle Rotor 5:6×50ml (Sharp/Round type); 14000rpm; 20598×g Angle Rotor 6:6×100ml; 12000rpm; 17918×g Swing-out rotor With Multi-Pipe 7: 4×50ml; 4×100ml; 8×50ml; 8×100ml; 16×10/15ml; 24×10/15ml; 32×10/15ml; 48×5/7ml(blood Tube);48×5/7ml(blood Tube); 4000rpm; 2810×g Swing out Rotor 8:4×250ml; 4000rpm;3500×g Swing out Rotor 9:2×2×96 hole Elisa Plate; 4000rpm; 1900×g |
Angle Rotor 1:12×1.5/2.2ml; 21000rpm; 29780×g Angle Rotor 2:12×5ml; 18000rpm; 22640×g Angle Rotor 3:24×1.5/2.2ml;16000rpm; 23470×g Angle Rotor 4:12×10ml;15000rpm; 20250×g Angle Rotor 5:48×1.5/2.2ml; 14000rpm; 20488×g Angle Rotor 6:4×100ml;14000rpm;22020×g Angle Rotor 7:6×50ml Sharp/round Bottom; 14000rpm; 20598×g Angle Rotor 8:12×15 Sharp bottom; 12000rpm;15775×g Angle Rotor 9:8×8×0.2ml;14000rpm;16434×g Swing-out rotor 10:4×500/750ml; adaptor：28×50ml Sharp Bottom;adaptor：56×15ml Sharp bottom: 4200rpm; 3950×g Swing-out rotor 11:4×2×96 holes Enzyme plate; Square Hanging Basket; 4200rpm; 3910×g |
Data sheet
| Model | IBHC-5050 | IBHC-5150 | IBHC-5250 | IBHC-5350 |
| Capacity | 12×5ml | 4×100ml | 4×250ml | 4×750ml |
| Max RCF | 20625×g | 23110×g | 30185×g | 29780×g |
| Speed Range | 16500 rpm | 18500 rpm | 20000 rpm | 21000 rpm |
| Noise | ?62dB?A? | ?60dB?A) | ||
| ;Rotor Diameter | 200 mm | 320 mm | 380 mm | 430 mm |
| Revolutions/min | ±10 rpm | |||
| Timer | 1min to 99h, 59min, 59s | |||
| Power Consumption | 500 W | 550 W | 750 W | 1200 W |
| Dimension | 335×270×245 mm | 515×400×330 mm | 540×430×395 mm | 560×460×390 mm |
| Packing Dimension | 412×347×332 mm | 570×450×390 mm | 627×502×442 mm | 637×537×484 mm |
| Net Weight | 15 kg | 35 kg | 45 kg | 58 kg |
| Electrical Requirement | AC 220±22V 50Hz 15A | |||
| Catalogue No. | 1401600502 | 1401601002 | 1401601502 | 1401602002 |
