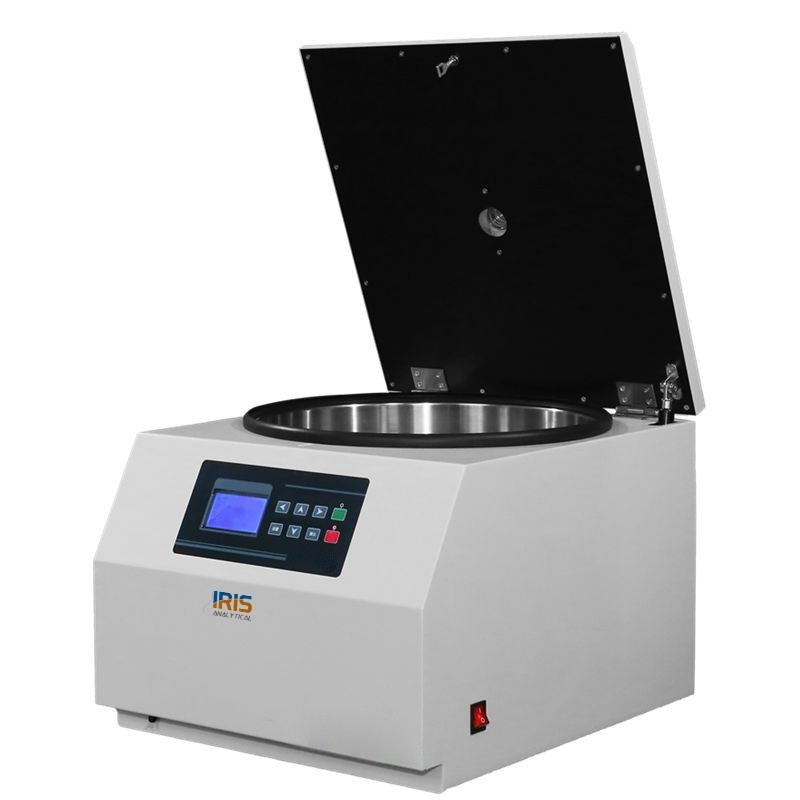

Low Speed Centrifuges IBLC-2300 accommodates angle, swing rotor and swing-out ELISA plate rotor as these motor capable of accommodating a great number of tubes at once. Suitable for clinical medicine, radio-immunity, biochemistry, food hygiene, environmental protection and other research areas. Available with 9 profiles for acceleration and for deceleration with high efficiency. Features with digital LCD screen to show various parameters including running time, speed, RCF.
Rotors
|
Rotor |
Capacity |
Max Speed |
Max RCF |
||
|
NO. 1 Swing-out Rotor |
4x100ml, 4x50ml
|
5000 rpm |
4650Xg |
||
|
NO. 2 Swing-out Rotor
|
8x50ml, 8x100ml, 24x15ml, 32x15ml |
4000 rpm |
|
||
|
NO. 3 Swing-out Rotor
|
4x250ml (with a wind cover) |
4000 rpm |
3100Xg |
||
|
Adaptor |
4x50 ml, 8x50 ml(Round bottom), 4x100 ml,36x10ml, 40x7 ml, Blood collection tube |
||||
|
Special hang rack |
48x7 ml Blood collection tube, 64x7 ml Blood collection tube, 8x50 ml |
||||
|
NO. 4 Swing-out ELISA plate Rotor
|
2x2x96 holes |
4000rpm |
1970Xg |
||
|
NO.5 Swing-out Rotor |
Round hang cup |
4x500ml
|
4000 rpm |
3400Xg |
|
|
Adaptor
|
4x250ml, 12x50ml, 36x15ml, 76x7ml Blood collection tube
|
||||
|
Square hang basket
|
16x50ml, 40x15ml,80x7ml Blood collection tube, 112x7ml Blood collection tube, 100x1.5ml
|
||||
|
Hang cup
|
148x5ml Radio-immunity tube, 96x7ml Blood collection tube |
||||
|
ELISA plate rack
|
4x2x96 holes |
||||
|
NO. 6 Angle Rotor(IBLC-1300) |
12x15ml |
|
6000 rpm |
5120Xg |
|
Data sheet
| Model | IBLC-2100 | IBLC-2200 | IBLC-2300 |
| Capacity | 4X250ml(4000rpm) | 4x500ml(4000rpm) | |
| Max RCF | 4650Xg | 5200Xg | |
| Speed Range | 5000 rpm | 5000 rpm | 6000 rpm |
| Noise | ?60dB?A? | ||
| Revolutions/min | ±20 rpm | ||
| Motor | frequency conversion motor | ||
| Timer | 1 to 99 min
| ||
| Dimension | 550x450x365 mm | 550x450x365 mm | |
| Weight | 40 kg | 53 kg | |
| Electrical Requirement | AC 220V 50HZ 10A | ||
| Catalogue No. | 140950502 | 140951002 | 140951502 |
