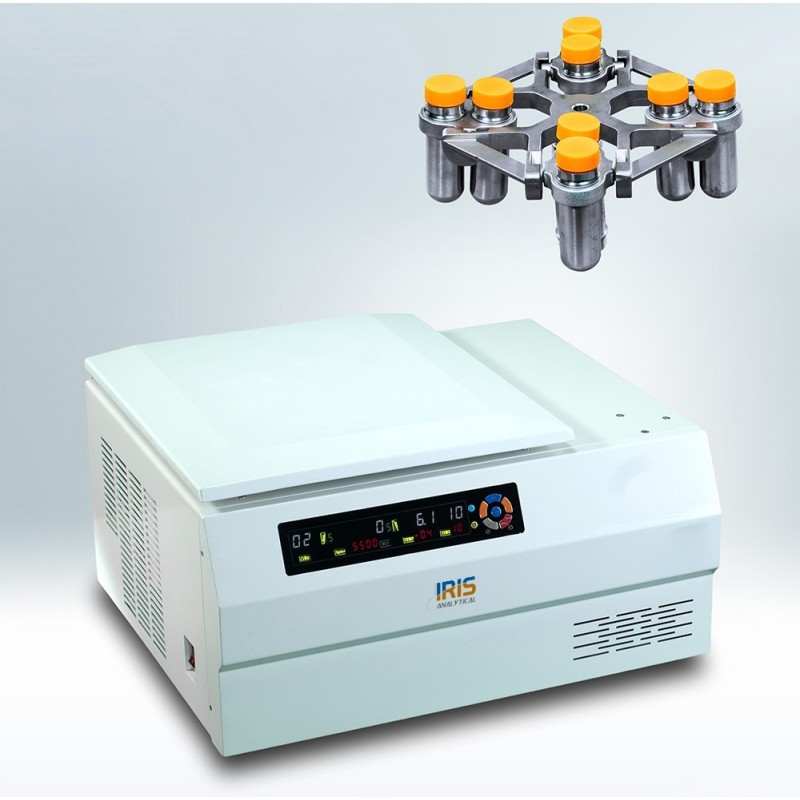

Benchtop Low Speed Refrigerated Centrifuge IBRLC-4206 featured with LED touch screen with multi-functional knob combination parameters.It is sealed and can function at low RPM owing to the ability to reduce the heat produced by higher rotation speeds worked under temperature range -20℃ to 40℃. Accommodates angle, as these motor capable of accommodating a great number of tubes at once. Available with 10 profiles for acceleration and for deceleration with high efficiency. Additionally, it comes with AC brushless converter motor, equipped with multiple types of rotor and adaptors, applicable to radioactive immunology, clinical medicine, biochemistry, pharmaceutics, isolation and purification of blood samples.
Rotors
1401251002
Data sheet
- Catalogue No.
- 1401251002
- Electrical Requirements
- AC 220±22V 50Hz 10A
- Power
- 800 W
- Shipping Dimensions (HxLxW) mm
- 680×760×465 mm
- Gross Weight (kg)
- 85 kg
- Net Weight (kg)
- 70 kg
- External Dimemsions (HxLxW) mm
- 580×660×365 mm
- Timer
- 1 to 99min
- Temperature Accuracy (℃ )
- ±2.0℃
- Temperature Range (℃ )
- -20℃ to 40℃
- Speed Control Accuracy
- ±20 rpm
- Capacity
- 4×250ml
- Max RCF
- 5190×g
- Speed Range (rpm)
- 6500rpm
- Model
- IBRLC-4206
- Energy AC efficient brushless regulating motor
- Available with 10 profile for acceleration and 10 for deceleration, high efficiency
- New high torque frequency conversion driving motor
- Allow automatic identification system for magnetic rotor, automatic matching of corresponding rotor program, preventing misoperation and ensuring centrifugal safety
- E lectronic door lock, full steel door cover protection, superior to industrial standards and Password lock function
- Microprocessor controlled
- Protective electronic with lock door, electric door with imbalance protection to provide more protection and safety along with automatic balancing without the need for trimming
- Designed digital LED screen with multi-functional knob combination
- Eco friendly with high efficiency refrigerating system, able to maintain temperature under 0? during maximum RPM
- Centrifugal chamber are constructed with stain less steel
- Designed with air exhaust temperature and low noise compressor
- CFC-free refrigerants, refrigerating/heating double loop
- Small foot print and easy handling
| Model | IBRLC-4204 | IBRLC-4206 | IBRLC-4205 |
| Capacity | 4×250ml | 4×250ml | 4×750ml |
| Max RCF | 4390×g | 5190×g | 5310×g |
| Speed Range | 5000rpm | 6500rpm | 5500rpm |
| Noise | ? 65dB?A? | ||
| Rotor Diameter | 380 mm | 420 mm | |
| Temperature Range | -20? to 40? | ||
| Revolutions/min | ±20 rpm | ||
| Temperature Accuracy | ±2.0? | ||
| Timer | 1 to 99min | ||
| Power Consumption | 750 W | 800 W | 1500 W |
| Dimension | 550×650×365 mm | 580×660×365 mm | 645×700×445 mm |
| Packing Dimension | 680×760×465 mm | 680×760×465 mm | 745×800×545 mm |
| Net Weight | 70 kg | 95 kg | |
| Gross Weight | 85 kg | 115 kg | |
| Electrical Requirement | AC 220±22V 50Hz 10A | ||
| Catalogue No. | 1401250502 | 1401251002 | 1401251502 |
