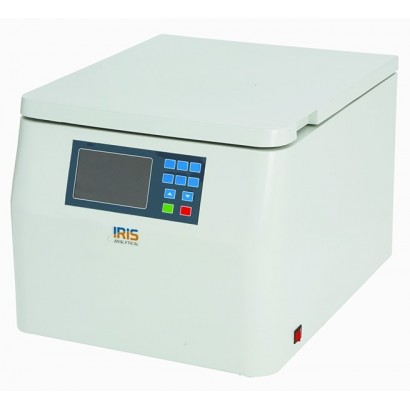

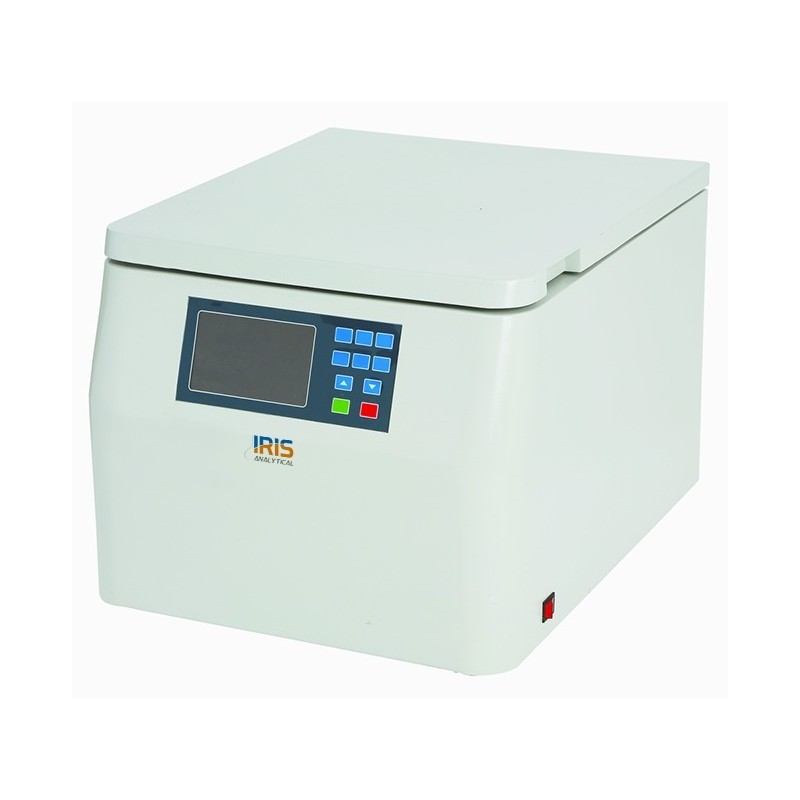

Benchtop Large Capacity Refrigerated Centrifuge IBLC-1080R(AC110/50Hz)
$11,108.00
Benchtop Large Capacity Refrigerated Centrifuge IBLC-1080R compiled with microcomputer allow for instant rotor identification, which robotically converts the rotational speed to the relevant RCF checking the user from setting a speed above the capabilities of the installed rotor along with R404a compressor unit and are convenient for a wide range of applications.
Benchtop Large Capacity Refrigerated Centrifuge IBLC-1080R compiled with microcomputer allow for instant rotor identification, which robotically converts the rotational speed to the relevant RCF checking the user from setting a speed above the capabilities of the installed rotor along with R404a compressor unit and are convenient for a wide range of applications.
Features with LCD/LED touch screen with multi-functional knob combination parameters. Accommodates different rotor and adaptors, as these motor capable of accommodating a great number of tubes at once. Available with 10 profiles for acceleration and for deceleration with high efficiency. Additionally, it comes with DC brushless converter motor.
Accessories
Rotors
|
Rotors and adaptor |
Capacity |
|
Rotor 1 |
50ml×6;5800rpm;3760×g |
|
Rotor 2 |
500ml×4;4000rpm;3040×g |
|
Rotor 3 |
96mlx8;4000rpm;2200×g |
|
Rotor 4 |
750ml×4;4000rpm;3780×g |
|
Rotor 5 |
250ml×6;4200rpm;3500×g |
|
Rotor 6 |
250ml×4;4300rpm;3582×g |
1401301001
Data sheet
- Catalogue No.
- 1401301001
- Electrical Requirements
- AC110/50Hz, 5A
- Shipping Dimensions (HxLxW) mm
- 880x780x620 mm
- Net Weight (kg)
- 75 kg
- External Dimemsions (HxLxW) mm
- 725x660x440 mm
- Timer
- 1 to 99 min
- Temperature Accuracy (℃ )
- ±1℃
- Temperature Range (℃ )
- -20 to +40℃
- Speed Control Accuracy
- ± 30 rpm
- Capacity
- 750mlx4
- Max RPM
- 5060xg
- Speed Range (rpm)
- 5800 rpm
- Model
- IBLC-1080R
- Energy DC efficient brushless regulating motor
- Available with 10 profile for acceleration and 10 for deceleration, high efficiency
- Allow automatic identification system for magnetic rotor, automatic matching of corresponding rotor program, preventing misoperation and ensuring centrifugal safety
- Electronic door lock, full steel door cover protection, superior to industrial standards and Password lock function
- Microprocessor controlled
- Protective electronic with lock door, electric door with imbalance protection to provide more protection and safety along with automatic balancing without the need for trimming
- Designed digital LCD, LED screen with multi-functional knob combination
- Eco friendly with high efficiency refrigerating system, able to maintain temperature under 0? during maximum RPM
- Centrifugal chamber are constructed with stain less steel
- Designed with air exhaust temperature and low noise compressor
- CFC-free refrigerants, refrigerating/heating double loop
| Model | IBLC-1080 | IBLC-1080R | ||
| Capacity | 750mlx4 | 750mlx4 | ||
| Max RCF | 5060xg | 5060xg | ||
| Speed Range | 5800 rpm | 5800 rpm | ||
| Noise | <65dB(A) | |||
| Temperature Range | - | -20 to +40? | ||
| Revolutions/min | ± 30 rpm | |||
| Temperature Accuracy | - | ±1? | ||
| Timer | 1 to 99 min | |||
| Dimension | 545x660x490mm | 725x660x440 mm | ||
| Packing Dimension | 670x780x630 mm | 880x780x620 mm | ||
| Weight | 72 kg | 75 kg | ||
| Electrical Requirement | AC110/50Hz, 5A | 220V/60Hz 5A | AC110/50Hz, 5A | 220V/60Hz 5A |
| Catalogue No. | 1401300501 | 1401300502 | 1401301001 | 1401301002 |
| Model | Image | Name | Product Detail | Availability | Price | Action |
| 1401300501 |
|
Angle Rotor 1 |
50ml×6;5800rpm;3760×g |
3-4 Weeks |
Price On Request |
|
| 1401300501 |
|
Swing Rotor 2 |
500ml×4;4000rpm;3040×g |
3-4 Weeks |
Price On Request |
|
| 1401300501 |
|
Swing Rotor 3 |
96mlx8;4000rpm;2200×g |
3-4 Weeks |
Price On Request |
|
| 1401300501 |
|
Swing Rotor 4 |
750ml×4;4000rpm;3780×g |
3-4 Weeks |
Price On Request |
|
| 1401300501 |
|
Swing Rotor 5 |
250ml×6;4200rpm;3500×g |
3-4 Weeks |
Price On Request |
|
| 1401300501 |
|
Swing Rotor 6 |
250ml×4;4300rpm;3582×g |
3-4 Weeks |
Price On Request |
|
Download Catalog
