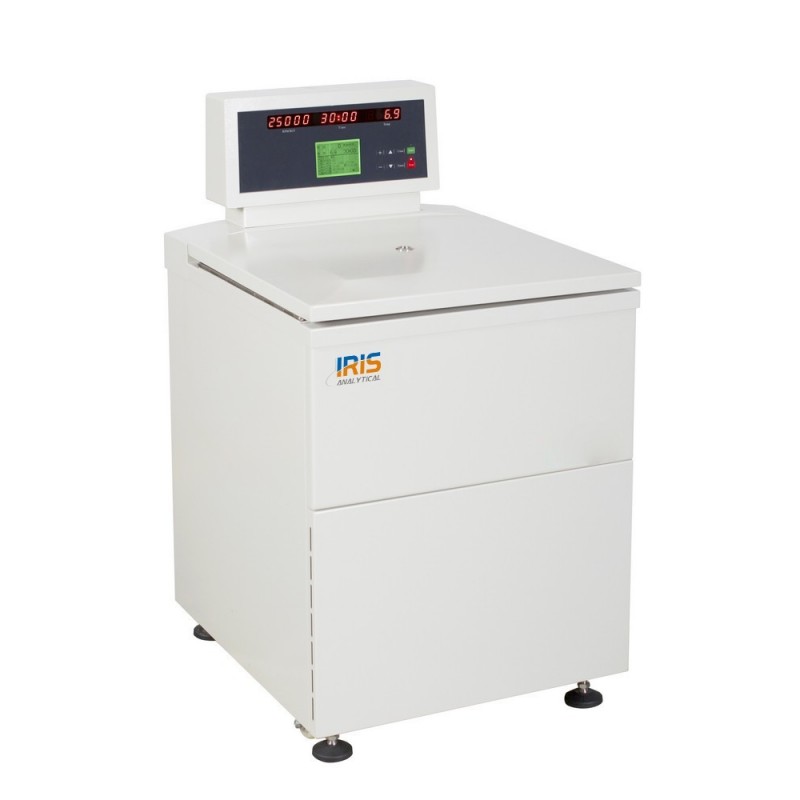

Floor Standing High Speed Refrigerated Centrifuge IFHRC-3025 is CE certify. Designed with parameters, including RCF, variable frequency brushless motor, microcomputer control. Suitable applications are hot products with high speed and high efficiency, any other application requiring up to 64800×g, in a powerful, versatile, highly reliable unit that can improve your productivity. Ideal for collecting microorganisms, cell debris, cells, large organelles, sulphate precipitates, and immune deposits, etc. Maximum capacity up to 3000ml, and an extensive DC brushless rotor. Eco-friendly refrigerator system and operates at −20℃ to 40℃ temperature range, low noise compressor less than <65dB and with protective electronic interlock door function.
Rotors
|
Rotor |
Capacity |
Max Speed |
Max RCF |
Test tube size ( mm ) Dimension of tube |
|
Angle Rotor 1 |
24 × 1.5/2.0 ml |
25000 r/min |
64800 × g |
10 × 42 |
|
Angle Rotor 2 |
18 × 10/1.5ml |
23000 r/min |
60460 × g |
16 × 81 |
|
Angle Rotor 3 |
8 × 50ml |
20000 r/min |
46420 × g |
29 × 105 |
|
Angle Rotor 4 |
6 × 250ml |
14000 r/min |
30074 × g |
62 × 134 |
|
Angle Rotor 5 |
8 × 100ml |
13000 r/min |
19830 × g |
38 × 124 |
|
Angle Rotor 6 |
6 × 500ml |
10000 r/min |
17700 × g |
69 × 160 |
|
Angle Rotor 7 |
1000ml continuous flow |
16000 r/min |
28100 × g |
200-600ml/min |
|
Horizontal rotor Swing Rotor 8 |
4 × 500ml |
5000 r/min |
5470 × g |
80 × 140 |
|
Horizontal rotor Swing Rotor 9 |
4 × 50ml |
5000 r/min |
4390 × g |
28 × 105-115 |
|
Horizontal rotor Swing Rotor 10 |
32 × 15ml |
4000 r/min |
3160 × g |
16 × 114-118 |
|
Microplate rotor Bucket Rotor 11 |
2 × 2 × 96 well |
4000 r/min |
2300 × g |
Microplate rotor |
Data sheet
Display LED/LCD screen and touch panel
Torque brushless frequency conversion motor drive, ultra-high speed bearings imported from Europe , stable operation, maintenance-free
CE, certify and jog function , short centrifugation, suitable for modification and changing parameters
Available with 9 profile for acceleration and 9 for deceleration, high efficiency
Great speed accuracy
Low noise: <65dB(A) and eco-friendly R404a
Constant operation
Easy, convenient and programmable operations
Automatic storage of data
Real time conversation of speed and RCF is suitable for operation
Equipped with self-locking device
Automatic alarm device
Over speed safety device
User friendly interface
Rotors and adaptors are available as an optional accessories
Comes with pre-cooling function, wild cooling; and proprietary SCT speed control technology, fast lifting speed, saving time and high efficiency
| Model | IFHRC-3021 | IFHRC-3025 |
| Capacity | 3000ml | |
| Max RCF | 21000 rpm | 25000 rpm |
| Speed Range | 48900×g | 64800×g |
| Noise | ?65Db | |
| Temperature Range | -20 to +40? | |
| Revolutions/min | ±20 rpm | |
| Temperature Accuracy | ±1? | |
| Timer | 1s to 99h, 59min, 59s | |
| Dimension | 810×710×1220 mm | 810×710×1200 mm |
| Weight | 320 kg | |
| Electrical Requirement | AC 220V 50Hz 35A | |
| Catalogue No. | 1402950502 | 1402951002 |
