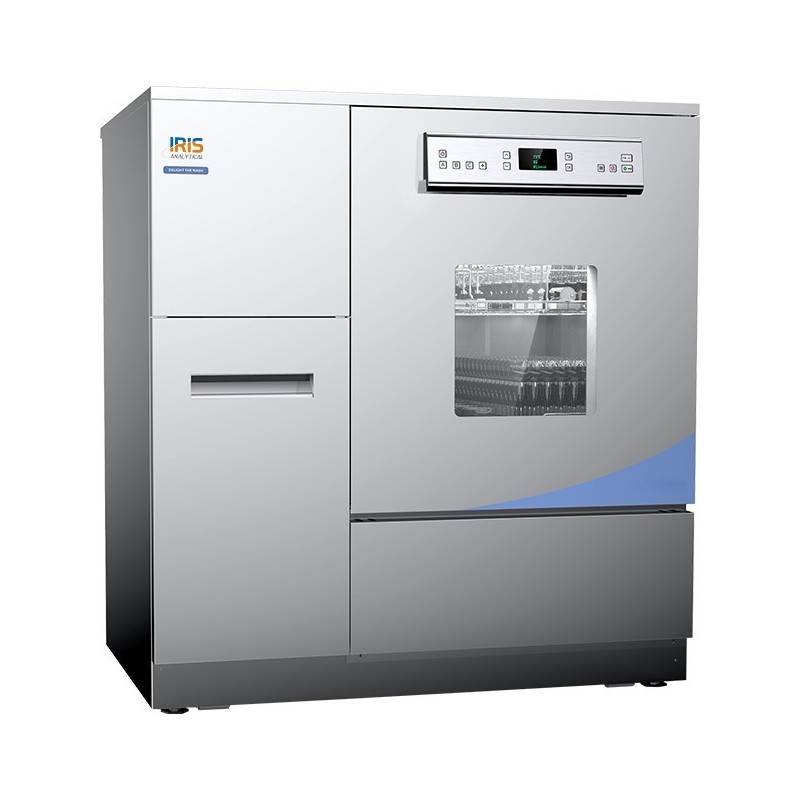

Laboratory Glassware Washers IGW-2400 is the most popular glassware washer that provides washing and drying function with HEPA filter can clean and dry the inner of tubular things especially for laboratory and medical applications.
The IGW-2400 is decontaminating equipment that worked on moist heat to remove contamination and bacteria with a large wash cabinet and short programme cycles. The key features include stainless steel interior, exterior, racks and inserts withstand heavy use and provide protection against corrosion resistance materials and offer internal components peristaltic pumps and seals laboratory-grade for excellent durability of instruments.
Data sheet
With default and standard programs with user defined and custom programming
Washing chamber and internal door are made up to 316L and 304L stainless steel
Provide over temperature and leakage protection
Automatic safety lock
Large capacity due to optimised chamber dimensions
Versatility and reliable
Use peristaltic pump for liquid detergent and neutralizer
Independent air heater, HEPA filter and drying process
Quick and effective drying system
Offer fault diagnosis, electronic lock, automatic power off function
Comes with rotatory knob
Suitable for cleaning laboratory sampling tubes, measuring tubes, pipette in bulk quantity
Comes with automatic sliding glass door
Integrated with PT1000 sensor
Offer interchangeable cleaning frame and baskets
Built-in steam condenser
Accessories
RS 232
Pure booster pump
Model | IGW-2200 | IGW-2400 | ||
Function | Washing | Washing + Drying with HEPA filter | ||
Capacity | 198 L | 198 L | ||
Washing Temperature | ? 93°C | ? 95°C | ||
Materials | Internal Panel: 316L, External Panel: 304L | Internal Panel: 316L, External Panel: 304L | ||
Peristaltic pump | 2 to 4 pcs | 2 to 4 pcs | ||
Sensor | PT1000 | PT1000 | ||
Cleaning Quantity | Sampling Tube: 448 or 476 pcs, Measuring Tube 100 (ml): 84 pcs, Pipette: 238 pcs | Sampling Tube: 448 or 476 pcs, Measuring Tube 100 (ml): 84 pcs, Pipette: 238 pcs | ||
Programs | 36 Default, 100 Custom | 36 Default, 100+Custom | ||
Interface | RS232, pure booster pump | RS232, pure booster pump | ||
Heating Power | 3/9/18 KW | 3/8/18 KW | ||
Total Power | 5/11/20 KW | 5/11/20 KW | ||
Dimension | 1000×617×770 mm | 1000×935×770 mm | ||
Electrical Requirement | 220V/50Hz | 380V/50Hz | 220V/50Hz | 380V/50Hz |
Catalogue No. | 370100502 | 370100503 | 370101002 | 370101003 |
| Model | IGW-2200 | IGW-2400 | ||
| Function | Washing | Washing + Drying with HEPA filter | ||
| Capacity | 198 L | 198 L | ||
| Washing Temperature | ? 93°C | ? 95°C | ||
| Materials | Internal Panel: 316L, External Panel: 304L | Internal Panel: 316L, External Panel: 304L | ||
| Peristaltic pump | 2 to 4 pcs | 2 to 4 pcs | ||
| Sensor | PT1000 | PT1000 | ||
| Cleaning Quantity | Sampling Tube: 448 or 476 pcs, Measuring Tube 100 (ml): 84 pcs, Pipette: 238 pcs | Sampling Tube: 448 or 476 pcs, Measuring Tube 100 (ml): 84 pcs, Pipette: 238 pcs | ||
| Programs | 36 Default, 100 Custom | 36 Default, 100+Custom | ||
| Interface | RS232, pure booster pump | RS232, pure booster pump | ||
| Heating Power | 3/9/18 KW | 3/8/18 KW | ||
| Total Power | 5/11/20 KW | 5/11/20 KW | ||
| Dimension | 1000×617×770 mm | 1000×935×770 mm | ||
| Electrical Requirement | 220V/50Hz | 380V/50Hz | 220V/50Hz | 380V/50Hz |
| Catalogue No. | 370100502 | 370100503 | 370101002 | 370101003 |
