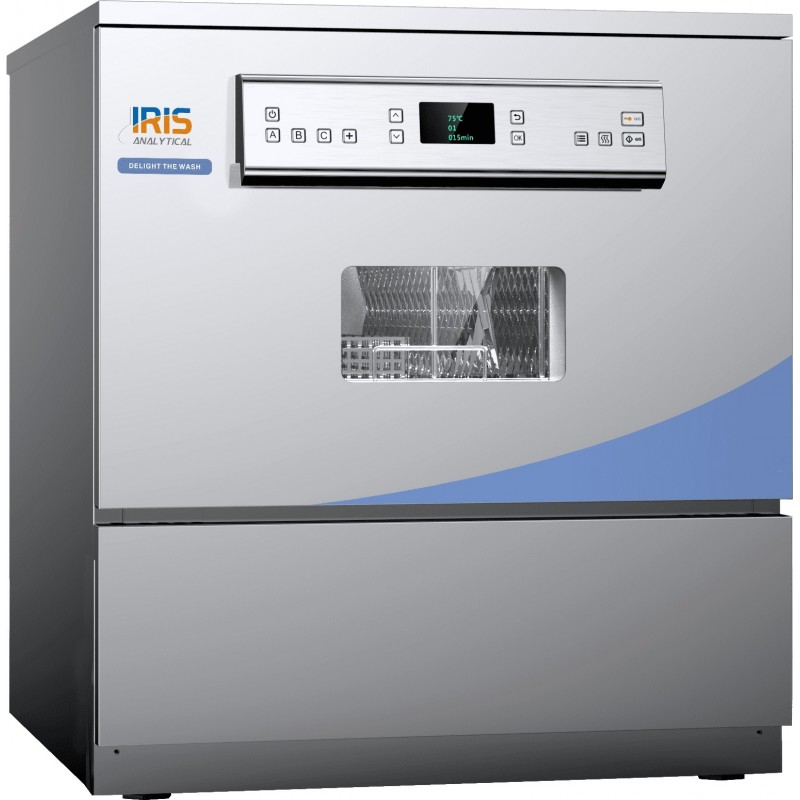

Laboratory Glassware Washers IGW-3400 designed to provide excellent cleaning and drying efficiency with HEPA filter, can clean and dry the inner of tubular things especially for laboratory and medical applications.
The IGW-3400 is decontaminating equipment that worked on moist heat to remove contamination and bacteria with a large wash cabinet and short programme cycles. The key features include stainless steel interior, exterior, racks and inserts withstand heavy use and provide protection against corrosion resistance materials and offer internal components peristaltic pumps and seals laboratory-grade for excellent durability of instruments.
Data sheet
With default and standard programs with user defined and custom programming
Washing chamber and internal door are made up to 316L and 304L stainless steel
Provide over temperature and leakage protection
Automatic safety lock
Large capacity due to optimised chamber dimensions
Versatility and reliable
Use peristaltic pump for liquid detergent and neutralizer
Quick and effective drying system
Suitable for cleaning laboratory sampling tubes, measuring tubes, pipette in bulk quantity
Comes with automatic door function
Integrated with PT1000 sensor
Independent air heater, HEPA filter and drying process
Offer interchangeable cleaning frame and baskets
Comes with countertop and under counter installation
Provide conductivity monitoring system
Model | IGW-3200 | IGW-3400 | ||
Function | Washing | Washing + Drying with HEPA filter | ||
Capacity | 126 L | 160 L | ||
Circulating System | 0 to 400 L/min | 0 to 400 L/min | ||
Washing Temperature | ? 93°C | ? 93°C | ||
Materials | Internal Panel: 316L, External Panel: 304L | Internal Panel: 316L, External Panel: 304L | ||
Peristaltic pump | 2 pcs | 2 to 3 pcs | ||
Sensor | PT1000 | |||
Programs | 36 Default, 50+user defined | 36 Default, 50+user defined | ||
Interface |
| RS232 | ||
Installation | Counter top | Under counter | ||
Heating Power | 2 KW | 3 KW/9 KW | ||
Total Power | 3 KW | 4/10 KW | ||
Dimension | 680×617×765 mm | 835×617×765 mm | ||
Electrical Requirement | 220V/50Hz | 380V/50Hz | 220V/50Hz | 380V/50Hz |
Catalogue No. | 370150502 | 370150503 | 370151002 | 370151003 |
| Model | IGW-3200 | IGW-3400 | ||
| Function | Washing | Washing + Drying with HEPA filter | ||
| Capacity | 126 L | 160 L | ||
| Circulating System | 0 to 400 L/min | 0 to 400 L/min | ||
| Washing Temperature | ? 93°C | ? 93°C | ||
| Materials | Internal Panel: 316L, External Panel: 304L | Internal Panel: 316L, External Panel: 304L | ||
| Peristaltic pump | 2 pcs | 2 to 3 pcs | ||
| Sensor | PT1000 | |||
| Programs | 36 Default, 50+user defined | 36 Default, 50+user defined | ||
| Interface |
| RS232 | ||
| Installation | Counter top | Under counter | ||
| Heating Power | 2 KW | 3 KW/9 KW | ||
| Total Power | 3 KW | 4/10 KW | ||
| Dimension | 680×617×765 mm | 835×617×765 mm | ||
| Electrical Requirement | 220V/50Hz | 380V/50Hz | 220V/50Hz | 380V/50Hz |
| Catalogue No. | 370150502 | 370150503 | 370151002 | 370151003 |
