Digital Biological Microscope IMB-1404
$770.00
Digital Biological Microscope IMB-1404 is a digital microscope, ideal for educational applications in elementary and middle schools.

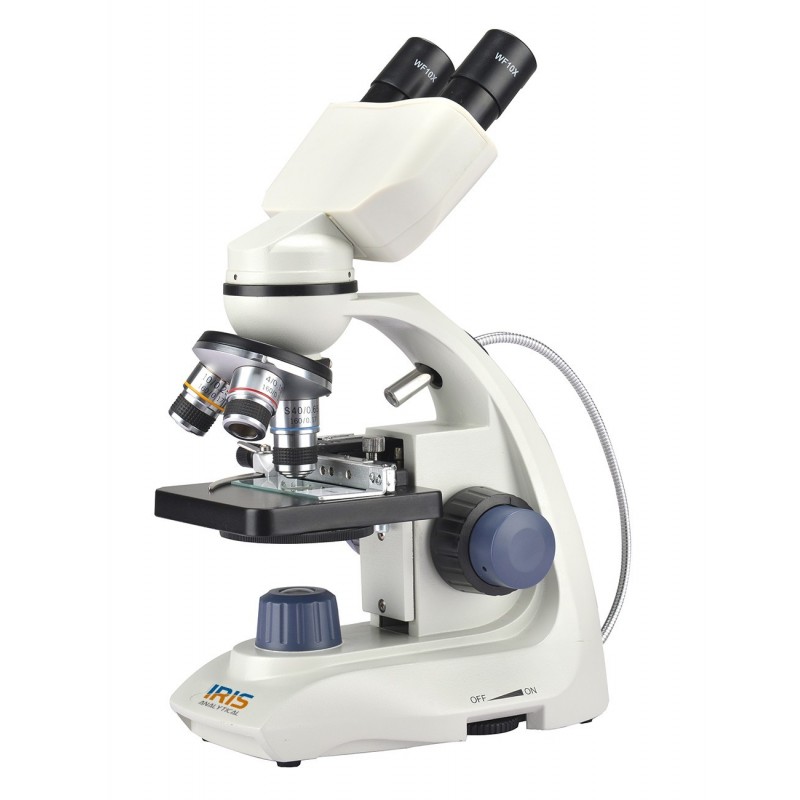

Student Biological Microscope IMB-1204(110V/60Hz)
$497.00
Student Biological Microscope IMB-1204 is ideal for educational applications in elementary and middle schools.
The 0.1W LED Illumination with consistent color temperature, achromatic objective to ensure high image flatness across the field, single lens and ABBE Condenser with iris diaphragm and triple revolving nosepiece.
Student Biological Microscope IMB-1204 is ideal for educational applications in elementary and middle schools.
The 0.1W LED Illumination with consistent color temperature, achromatic objective to ensure high image flatness across the field, single lens and ABBE Condenser with iris diaphragm and triple revolving nosepiece.
This model of microscopes allow handlers to remain relaxed during long periods of routine microscopy observations. The microscope frame adapts the handler’s hands and the location of the control knobs maximizes ergonomics to recover work efficiency. Fast and rapid set a specimen with one hand while adjusting the focus and operating the stage with the other hand with slight movement. The binocular viewing head has excellent 2500X magnification and achromatic 4X, 10X, 40X (185) objective and each eye tube has interpupillary adjustment. Single Lens with Disc/Iris Diaphragm and chromatic condenser ABBE that are concentrates and controls the light that passes through the specimen prior to entering the objective with modern cameras use a type of adjustable diaphragm known as an iris diaphragm which can reduce the amount light that hits a detector by decreasing the aperture and Filter
440051001
Data sheet
- Model
- IMB-1204
- Type
- Biological Microscope
- Viewing Head
- Binocular head, at 45°, 360° Rotatable, ID 54-77 mm
- Eyepiece
- WF10X16 mm,WF25X6.5 mm
- Nosepiece
- Triple
- Objective
- Achromatic 4X, 10X,40X(185)
- Stage
- Plain Stage with Slide Clips 95×95 mm
- Light Source
- 0.1W LED Illumination
- Condenser
- Single Lens NA 0.65 with Disc Diaphragm
- Dimensions
- 280×190×400 mm
- Net Weight
- 3 kg
- Electrical Requirement
- 110V/60Hz
- Catalogue No.
- 440051001
- Achromatic objective to correct for color and has a flat field across the central 65% of the image and usually comes with a pair of lenses
- Coaxial coarse and fine adjustment
- Offer stages that are designed to move small sample slides or entire microscopes including plain stage with sliding clips of length 95×95 mm and also provide attachable mechanical stage to facilitates sample observations of length 95×95 mm or 60×30 mm as an optional accessories
- Plan-concave Mirror and 0.1W LED Illuminator light source
- Excellent wide field technology
- Provide maximum magnification is up to 2500X
- Monocular 45° inclined and a 360° rotatable head and binocular 45° inclined and a 360° rotatable head with interpupilary distance 54 to 77 mm
- Small foot print and light weight
- Easy operating with ergonomic design
- Excellent image quality with infinite and finite optical system
- Accessories power adapter,DC5V, AA batteries
Technical Specifications
Model | IMB-1202 | IMB-1204 | |||
Type | Biological Microscope | ||||
Magnification | 2500X | ||||
Viewing Head | Monocular head, Inclined at 45°, 360° Rotatable | Binocular head, at 45°, 360° Rotatable, ID 54-77 mm | |||
Focusing | Coaxial Coarse and Fine Adjustment | ||||
Eyepiece | WF10X16 mm,WF25X6.5 mm (optional: WF16X11 mm, WF20X9.5 mm) | ||||
Nosepiece | Triple | ||||
Objective | Achromatic 4X, 10X,40X(185)(optional:60X(185) , 100X(185)) | ||||
Stage | Plain Stage with Slide Clips 95×95 mm(optional: Plain Stage with Mechanical ruler 95×95 mm/60×30 mm) | ||||
Light Source | 0.1W LED Illumination | ||||
Condensers | Single Lens NA 0.65 with Disc Diaphragm | ||||
Packing Dimension | 280×190×400 mm | ||||
Packing Weight | 3 kg | ||||
Electrical Requirement | AC100 V power adapter, DC5V, AA batteries | 220V power adapter, DC5V, AA batteries | AC100 V power adapter, DC5V, AA batteries | 220V power adapter, DC5V, AA batteries | |
Catalogue No. | 440050501 | 440050502 | 440051001 | 440051002 | |
| Model | IMB-1202 | IMB-1204 | |||
| Type | Biological Microscope | ||||
| Magnification | 2500X | ||||
| Viewing Head | Monocular head, Inclined at 45°, 360° Rotatable | Binocular head, at 45°, 360° Rotatable, ID 54-77 mm | |||
| Focusing | Coaxial Coarse and Fine Adjustment | ||||
| Eyepiece | WF10X16 mm,WF25X6.5 mm (optional: WF16X11 mm, WF20X9.5 mm) | ||||
| Nosepiece | Triple | ||||
| Objective | Achromatic 4X, 10X,40X(185)(optional:60X(185) , 100X(185)) | ||||
| Stage | Plain Stage with Slide Clips 95×95 mm(optional: Plain Stage with Mechanical ruler 95×95 mm/60×30 mm) | ||||
| Light Source | 0.1W LED Illumination | ||||
| Condensers | Single Lens NA 0.65 with Disc Diaphragm | ||||
| Certification |
|
| |||
| Packing Dimension | 280×190×400 mm | ||||
| Packing Weight | 3 kg | ||||
| Electrical Requirement | AC100 V power adapter,DC5V, AA batteries | 220V power adapter,DC5V, AA batteries | AC100 V power adapter,DC5V, AA batteries | 220V power adapter,DC5V, AA batteries | |
| Catalogue No. | 440050501 | 440050502 | 440051001 | 440051002 | |
Download Catalog
