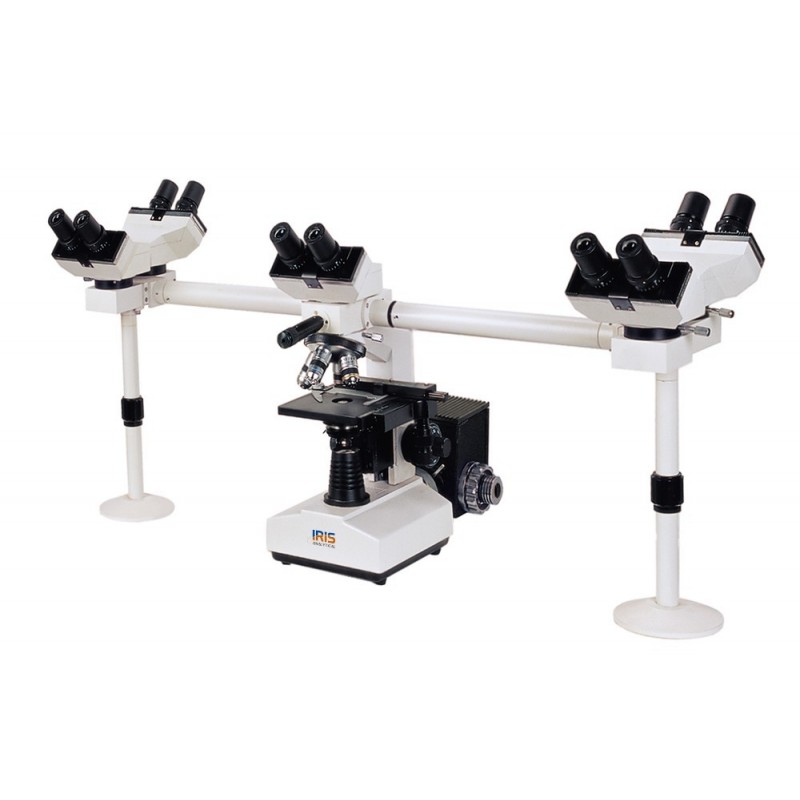

Multi-head Biological Microscope IMB-2130 is cost-effective and laboratory-grade performance, choose quadruple nosepiece achromatic objective Multi-head Biological Microscope. The wild field 10X is absorbed and delivers an 18 mm field of view which allows you to view more of your specimen. Newly designed, modular stand especially for medical teaching and biological teaching, biological analysis, medical and sanitary establishments, laboratories, institutes, colleges, and universities.
The1W S-LED Illumination with consistent color temperature, achromatic objective to ensure high image flatness across the field, and Abbe Condenser NA1.25. This series of microscopes allow handlers to remain relaxed during long periods of routine microscopy observations. Features with backward quadruple revolving nosepiece holds multiple lenses, and found between the eyepiece and the stage allowing the user to turn it to achieve various levels of magnification. Though the exact level of magnification may vary with different models, most microscopes provide a low power lens with about 5X magnification and a high power lens with about 100X magnification. Featured with chromatic condenser Abbe Condenser NA1.25 with Iris Diaphragm condenser that are concentrates and controls the light that passes through the specimen prior to entering the objective with modern cameras use a type of adjustable diaphragm known as an iris diaphragm which can reduce the amount light that hits a detector by decreasing the aperture and Filter.
Data sheet
Technical Specifications
Model | IMB-2110 | IMB-2120 | IMB-2130 |
Type | Multi-head Biological Microscope | ||
Viewing Head | Sliding Binocular, at 45°, ID: | Sliding Binocular, at 45°, ID: | Sliding Binocular, at 45°, ID: |
Focusing | Coaxial Coarse and Fine Focus Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm/Rotation, Fine Stroke 0.2mm/Rotation, Moving Range 28mm | ||
Eyepiece | Wide Field Eyepiece WF10X18 mm- 4 PCS(optional: WF16X11mm) | Wide Field Eyepiece WF10X18 mm- 4 PCS(optional: WF16X11mm) | Wide Field Eyepiece WF10X18 mm- 10 PCS(optional: WF16X11mm) |
Nosepiece | Quadruple | ||
Objective | Achromatic 4X, 10X, 40X, 100X(optional:20X, 60X, Semi- Plan Achromatic Objective 4X, 10X, 20X, 40X, 60X, 100X, Plan Achromatic Objective 4X, 10X, 20X, 40X, 60X, 100X) | ||
Stage | Double Layers Mechanical Stage 140×140 mm/ 75×50 mm | ||
Light Source | 1W S-LED (optional- Halogen Lamp 6V/ 20W) | 1W S-LED (optional- Halogen Lamp 24V/ 100W) | |
Condenser | Abbe Condenser NA1.25 | ||
Accessories |
|
| Green LED Pointer, Brightness Adjustable |
Packing Dimension |
|
|
|
Packing Weight |
|
|
|
Electrical Requirement |
|
|
|
Catalogue No. | 4402505-04 | 4402510-04 | 4402515-04 |
| Model | IMB-2110 | IMB-2120 | IMB-2130 |
| Type | Multi-head Biological Microscope | ||
| Viewing Head | Sliding Binocular, at 45°, ID: 55-75 mm, Anti-mould - 2PCS | Sliding Binocular, at 45°, ID: 55-75 mm, Anti-mould - 1PC, Monocular Head, at 45°, Anti-mould - 2PCS | Sliding Binocular, at 45°, ID: 55-75 mm, Anti-mould - 5PCS |
| Focusing | Coaxial Coarse and Fine Focus Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm/Rotation, Fine Stroke 0.2mm/Rotation, Moving Range 28mm | ||
| Eyepiece | Wide Field Eyepiece WF10X18 mm- 4 PCS(optional: WF16X11mm) | Wide Field Eyepiece WF10X18 mm- 4 PCS(optional: WF16X11mm) | Wide Field Eyepiece WF10X18 mm- 10 PCS(optional: WF16X11mm) |
| Nosepiece | Quadruple | ||
| Objective | Achromatic 4X, 10X, 40X, 100X(optional:20X, 60X, Semi- Plan Achromatic Objective 4X, 10X, 20X, 40X, 60X, 100X, Plan Achromatic Objective 4X, 10X, 20X, 40X, 60X, 100X) | ||
| Stage | Double Layers Mechanical Stage 140×140 mm/ 75×50 mm | ||
| Light Source | 1W S-LED (optional- Halogen Lamp 6V/ 20W) | 1W S-LED (optional- Halogen Lamp 24V/ 100W) | |
| Condenser | Abbe Condenser NA1.25 | ||
| Certification |
|
|
|
| Accessories |
|
| Green LED Pointer, Brightness Adjustable |
| Packing Dimension |
|
|
|
| Packing Weight |
|
|
|
| Electrical Requirement |
|
|
|
| Catalogue No. | 4402505-04 | 4402510-04 | 4402515-04 |
