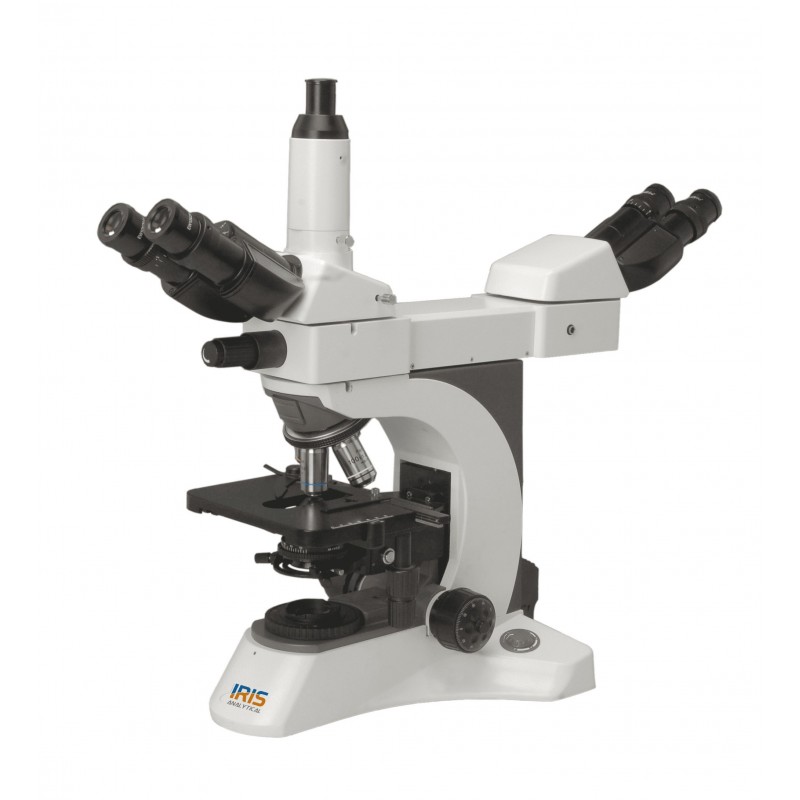

Multi-head Biological Microscope IMB-2210 is cost-effective and laboratory-grade performance, choose quintuple nosepiece infinite plan achromatic objective Multi-head Biological Microscope.
The extra wild field 10X is absorbed and delivers a 22 mm field of view which allows you to view more of your specimen. With the features of an infinite optical system, effective high brightness illumination, LED pointer and images coherence for medical teaching and biological teaching, biological analysis, medical and sanitary establishments, laboratories, institutes, colleges, and universities. 24V/ 100W Halogen Lamp Koehler Illumination with consistent color temperature, achromatic objective to ensure high image flatness across the field, and Swing Condenser N.A.0.9/ 0.25. This model of microscopes allow handlers to remain relaxed during long periods of routine microscopy observations. Features with backward quintuple revolving nosepiece holds multiple lenses, and found between the eyepiece and the stage allowing the user to turn it to achieve various levels of magnification. Though the exact level of magnification may vary with different models, most microscopes provide a low power lens with about 5X magnification and a high power lens with about 100X magnification. Featured with Swing Condenser N.A.0.9/ 0.25 with Iris Diaphragm that are concentrates and controls the light that passes through the specimen prior to entering the objective with modern cameras use a type of adjustable diaphragm known as an iris diaphragm which can reduce the amount light that hits a detector by decreasing the aperture and Filter.
Data sheet
Technical Specifications
Model | IMB-2210 | IMB-2220 | IMB-2230 | IMB-2240 |
Type | Multi-head Biological Microscope | |||
Viewing Head | Trinocular Head, at 30°, 360° Rotatable, | Trinocular Head, at 30°, 360° Rotatable, | Trinocular Head, at 30°, 360° Rotatable, | Trinocular Head, at 30°, 360° Rotatable, |
Optical System | Infinite | |||
Focusing | Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.001mm, Coarse Stroke 37.7mm/Rotation, Fine Stroke 0.1mm/Rotation, Moving Range 24mm | |||
Eyepiece | Extra Wide Field Eyepiece EW10X20 mm- 4 PCS | Extra Wide Field Eyepiece EW10X20 mm- 6 PCS | Extra Wide Field Eyepiece EW10X20 mm- 10 PCS | |
Nosepiece | Backward Quintuple | |||
Objective | Infinite Plan Achromatic Objective 4X, 10X, 40X, 100X(OPTIONAL:20X, 60X) | |||
Stage | Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm | |||
Light Source | Halogen Lamp 24V/ 100W Koehler Illumination(optional: 5W LED) | |||
Condenser | Swing Condenser N.A.0.9/ 0.25 | |||
Optional Accessories | Green LED and Dual Color LED Pointer, Photo Adapter, Video Adapter | |||
Electrical Requirement |
|
|
|
|
Catalogue No. | 4403005-04 | 4403010-04 | 4403015-04 | 4403020-04 |
| Model | IMB-2210 | IMB-2220 | IMB-2230 | IMB-2240 |
| Type | Multi-head Biological Microscope | |||
| Viewing Head | Trinocular Head, at 30°, 360° ID 48-75 mm- 1 PC and Binocular Head, at 30°, 360°, ID 48-75 mm-1 PC | Trinocular Head, at 30°, 360° ID 48-75 mm- 1 PC and Binocular Head, at 30°, 360° ID 48-75 mm-1 PC | Trinocular Head, at 30°, 360° ID 48-75 mm- 1 PC and Binocular Head, at 30°, 360° ID 48-75 mm-2 PCS | Trinocular at 30°, 360° ID 48-75 mm- 1 PC and Binocular Head, at 30°, 360° ID 48-75 mm-4 PCS |
| Optical System | Infinite | |||
| Focusing | Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.001mm, Coarse Stroke 37.7mm/Rotation, Fine Stroke 0.1mm/Rotation, Moving Range 24mm | |||
| Eyepiece | Extra Wide Field Eyepiece EW10X20 mm- 4 PCS | Extra Wide Field Eyepiece EW10X20 mm- 6 PCS | Extra Wide Field Eyepiece EW10X20 mm- 10 PCS | |
| Nosepiece | Backward Quintuple | |||
| Objective | Infinite Plan Achromatic Objective 4X, 10X, 40X, 100X(OPTIONAL:20X, 60X) | |||
| Stage | Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm | |||
| Light Source | Halogen Lamp 24V/ 100W Koehler Illumination(optional: 5W LED) | |||
| Condenser | Swing Condenser N.A.0.9/ 0.25 | |||
| Optional Accessories | Green LED and Dual Color LED Pointer, Photo Adapter, Video Adapter | |||
| Packing Dimension |
|
|
|
|
| Packing Weight |
|
|
|
|
| Electrical Requirement |
|
|
|
|
| Catalogue No. | 4403005-04 | 4403010-04 | 4403015-04 | 4403020-04 |
