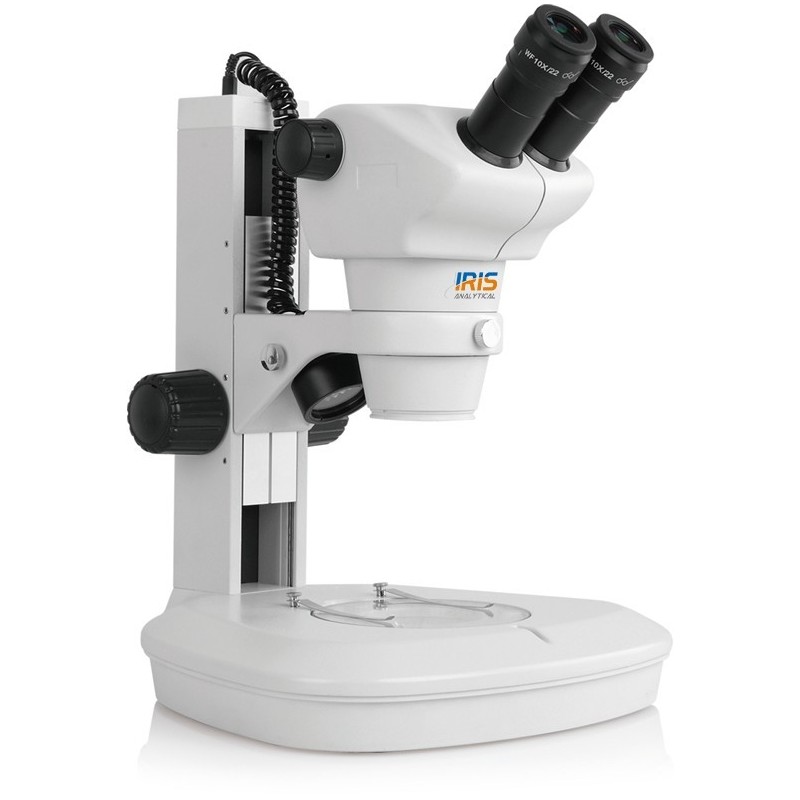

Zoom Stereo Microscope IMS-2425 is thestandard type of microscope where you change magnification using a zoom control knob. The binocular and trinocular viewing head with extra wield field eyepieces and has excellent zoom objective to choose 0.8X-5X and auxiliary objective 2X45 mm, 0.5X210 mm objectives and each eye tube has interpupillary adjustment. IMS-2400 Series is capable of providing strong images with a broad field of view, the multipurpose and perfect for basic studies of samples properties. Come with incident and transmitting LED lights, allowing samples to be illuminated for a more comprehensive field of view. Suitable for education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science and veterinary industries. The microscopes can be used for circuit board repair and inspection, SMT work, electronics inspection, dissection, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts. Known for its dissecting featuring that allow to examine the huge specimen under 0.8X-5X low zoom magnification objective.
Data sheet
| Model | IMS-2425 | IMS-2435 |
| Type | Zoom Stereo Microscope | |
| Viewing Head | Binocular Head, at 45°, ID: 52-75mm(optional:Trinocular Head, at 45°, ID: 52-75mm, 30:70 light distribution) | Trinocular Head, at 45°, ID: 52-75mm, 30:70 light distribution(optional: Binocular Head, at 45°, ID: 52-75mm) |
| Magnification | 0.8X-5X | |
| Zoom Ratio | 6.3:1 WS: 115 mm | |
| Focusing | Coarse Focus Knob with tension adjustable, Moving range 100mm | |
| Eyepiece | EW10X22mm(Optional:WF15X16mm, WF20X12. 5mm) | |
| Objective | optional: Auxiliary objective 2X45 mm, 0.5X210 mm | |
| Stage | Frosted Glass Plate, Diameter 100mm, White and Black round plate, Diameter 100mm | |
| Light Source | 100V-240V/ LED incident and transmitted | |
| Certification |
|
|
| Accessories | - | 0.5X C-mount Adapter(optional:Photo Adapter ) |
| Packing Dimension | 3650x310x520 mm | |
| Packing Weight | 8.5 kg | |
| Electrical Requirement |
|
|
| Catalogue No. | 440175-05-04 | 440175-10-04 |
