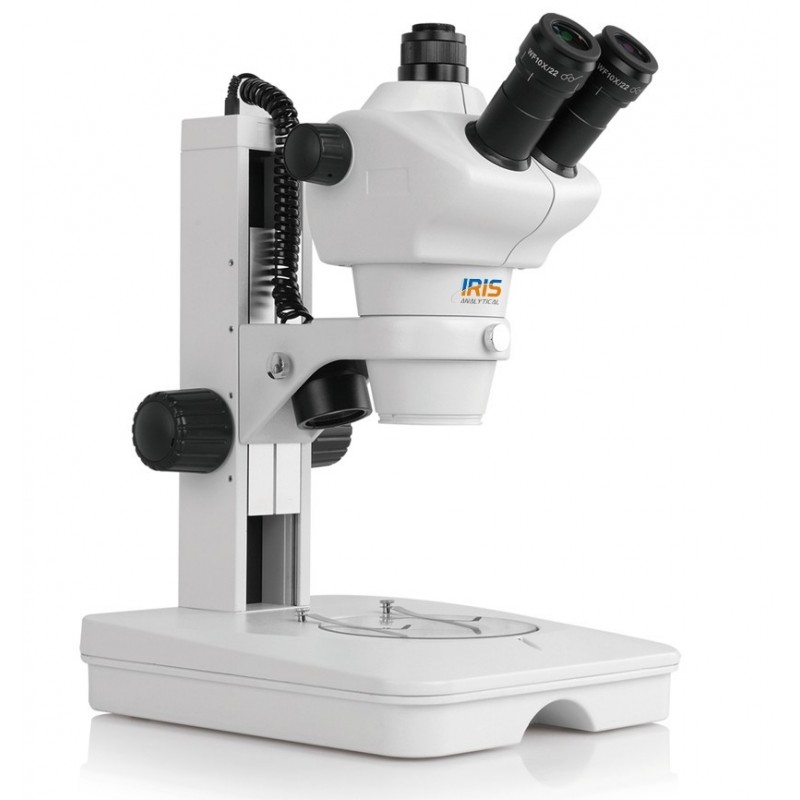

Advanced Zoom Stereo Microscope IMS-3308
$3,200.00
Advanced Zoom Stereo Microscope IMS-3308 is the advanced type of microscope where you change magnification using a zoom control knob.
Zoom Stereo Microscope IMS-2435 is the standard type of microscope where you change magnification using a zoom control knob. The binocular and trinocular viewing head with extra wield field eyepieces and has excellent zoom objective to choose 0.8X-5X and auxiliary objective 2X45 mm, 0.5X210 mm objectives and each eye tube has interpupillary adjustment. IMS-2400 Series is capable of providing strong images with a broad field of view, the multipurpose and perfect for basic studies of samples properties. Come with incident and transmitting LED lights, allowing samples to be illuminated for a more comprehensive field of view. Suitable for education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science and veterinary industries. The microscopes can be used for circuit board repair and inspection, SMT work, electronics inspection, dissection, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts. Known for its dissecting featuring that allow to examine the huge specimen under 0.8X-5X low zoom magnification objective.
440175-10-04
Data sheet
- Model
- IMS-2435
- Type
- Zoom Stereo Microscope
- Viewing Head
- Trinocular Head, at 45°, ID: 52-75mm, 30:70 light distribution
- Eyepiece
- EW10X22mm(Optional:WF15X16mm, WF20X12. 5mm)
- Objective
- optional: Auxiliary objective 2X45 mm, 0.5X210 mm
- Stage
- Frosted Glass Plate, Diameter 100mm, White and Black round plate, Diameter 100mm
- Light Source
- 100V-240V/ LED incident and transmitted
- Standard Accessories
- 0.5X C-mount Adapter(optional:Photo Adapter )
- Shipping Dimensions
- 3650x310x520 mm
- Shipping Weight
- 8.5 kg
- Magnification
- 0.8X-5X
- Zoom Ratio
- 6.3:1 WS: 115 mm
- Catalogue No.
- 440175-10-04
- Auxiliary 2X45 mm, 0.5X210 mm objective
- Extra wild field EW10X/22 mm eyepieces
- Maximum magnification of up to 0.8X-5X
- Frosted glass plate of length 100 mm, white and black round plate of length 100 mm
- Coarse focus knob with tension adjustable, moving range: 106 mm. Focusing arm diameter: 76 mm
- 100V/240W LED light source with incident and transmitted illumination
- Binocular 45° inclined and a 360° rotatable viewing head with Interpupillary adjusting distance 52-75 mm and trinocular 45° inclined and a 360° rotatable viewing head with Interpupillary adjusting distance 52-75 mm
- Small foot print and light weight
- Easy operating with ergonomic design
- Accessories adjustable 0.5× C-mount adapter
- Optional accessories Photo Adapter
| Model | IMS-2425 | IMS-2435 |
| Type | Zoom Stereo Microscope | |
| Viewing Head | Binocular Head, at 45°, ID: 52-75mm(optional:Trinocular Head, at 45°, ID: 52-75mm, 30:70 light distribution) | Trinocular Head, at 45°, ID: 52-75mm, 30:70 light distribution(optional: Binocular Head, at 45°, ID: 52-75mm) |
| Magnification | 0.8X-5X | |
| Zoom Ratio | 6.3:1 WS: 115 mm | |
| Focusing | Coarse Focus Knob with tension adjustable, Moving range 100mm | |
| Eyepiece | EW10X22mm(Optional:WF15X16mm, WF20X12. 5mm) | |
| Objective | optional: Auxiliary objective 2X45 mm, 0.5X210 mm | |
| Stage | Frosted Glass Plate, Diameter 100mm, White and Black round plate, Diameter 100mm | |
| Light Source | 100V-240V/ LED incident and transmitted | |
| Certification |
|
|
| Accessories | - | 0.5X C-mount Adapter(optional:Photo Adapter ) |
| Packing Dimension | 3650x310x520 mm | |
| Packing Weight | 8.5 kg | |
| Electrical Requirement |
|
|
| Catalogue No. | 440175-05-04 | 440175-10-04 |
