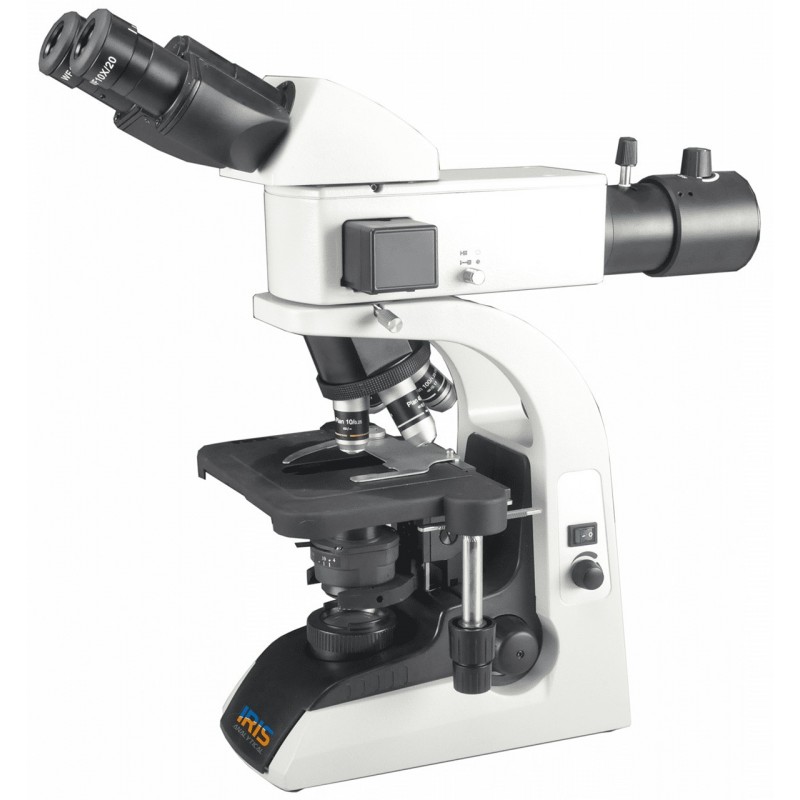

Fluorescent Microscope IMF-1310 is used to study the absorbing, transportation, chemicals distribution and positioning in cells. They can be used in disease examination, immune diagnosis and life science areas and tuberculosis test applications with Ziehl-Neelsen-Staining or fluorescence excitation, e.g. with Auramine O dye. 3W LED Illumination with consistent color temperature, achromatic objective to ensure high image flatness across the field, single lens and ABBE Condenser with iris diaphragm and backward quadruple revolving nosepiece. The binocular, and Trinocular viewing head has excellent Infinite E-Plan Achromatic Objective 4×, 10×, 40×, 100× objectives and each eye tube has interpupillary adjustment. Designed with blue, green filters and Kohler Illumination. Suitable for tuberculosis test applications with Ziehl-Neelsen-Staining or fluorescence excitation, e.g. with Auramine O dye. Provide tremendous fluorescent image with high resolution fluorescent objectives including infinite Plan achromatic objective, and backward Quintuple resolving nosepiece. Designed with LED epi-fluorescent, 3w led fluorescent lamp, mercury lamp epi-fluorescence lamp. Equipped with excitation filter for incoming light and emitted filters for emitted light and dichroic mirror to reflect the excitation light to the sample and instantaneously transmit only the emitted light from the sample back to the detector.
Sample Images
Data sheet
| Model | IMF-1310 | IMF-1320 | IMF-1330 | IMF-1340 | |||
| Type | Fluorescent Microscope | ||||||
| Viewing Head | Binocular Viewing Head, at 30°, 360° Rotatable, ID: 48-75mm | Trinocular Viewing Head, at 30°, 360° Rotatable, ID: 48-75mm | Binocular Head, 30°, Rotatable 360°, ID: 48-76mm | Trinocular Head, 30°, Rotatable 360°, I D: 48-76mm, | |||
| Fluorescent | 3W LED Lamp(465-476nm) 3W LED Lamp(525-530nm), Fluorescent Free Oil | LED Epi-Fluorescent unit (Six-hole disc, Auramine O fluorescent filter (Chroma brand, mainly used for Tuberculosis examination)) 3W LED fluorescent lamp, Rechargeable battery pack (6V DC) ,24 hrs working time(optional: 100W Mercury lamp Epi-Fluorescence unit (Six-hole disc, Auramine O/Uv/V/B/G and other filters)) | |||||
| Reflected Light Source | Blue : 460-490 excitation, 505 dichroic mirror, 515 barrier filter; Green : 510-550 excitation, 570 dichroic mirror, 590 barrier filter | - |
| ||||
| Optical System | Infinite | ||||||
| Focusing | Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 22mm | Coaxial Coarse and Fine Focusing Knob, Coarse Focusing Travel Range: 25mm, Coarse Stroke 42.4mm/rotation, Fine Stroke 0.2mm/Rotation, Fine division: 2µm | |||||
| Eyepiece | WF10X20mm (optional:WF15X16 mm) | WF10X22mm (Diopter adjustable), tube diameter: 30mm (optional:WF15X16mm (Diopter adjustable)) | |||||
| Nosepiece | Backward Quintuple | ||||||
| Objective | Infinite Plan Achromatic Objective 4X 10X, 40X, 100X(optional: Infinite Plan Achromatic Objective 20X, 60X) | Infinite Plan Achromatic without coverslips: 10X/0.25 WD: 4.64mm, 40X/0.65 (S), WD:0.65mm, 60X/0.90(S) WD:0.33mm, 100X/1.25(S, Oil), WD: 0.12mm (optional: 4X/0.10 WD:12.10mm, 20X/0.40(S) WD:2.41mm) | |||||
| Stage | Rectangular 230×150mm, Cross Travel 78×54mm, Using Low-positioned X/ Y Coaxial Control Knob, Can Hold Two Sides | Rackless Double Layers Mechanical stage, Size: 182mm×140mm, Travel Range: 77mm×52mm, Scale: 0.1mm, Two Slide Holder | |||||
| Light Source | 12V/20W Halogen Lamp(optional:1W S-LED illumination, brightness adjustable) | 3W LED Lamp Koehler illumination | |||||
| Condenser | Abbe Condenser NA1.25 with Aperture Diaphragm | Swing out condenser N.A.0.9/1.25, with iris diaphragm | |||||
| Filter |
|
| Blue (optional: Green/ Amber/Grey) | ||||
| Certification |
|
|
|
| |||
| Optional Accessories | Photo attachment, Video attachment, Polarization set, Phase contrast kit, Kohler Illumination | Video Adapter, Photo Adapter | |||||
| Packing Dimension | 380x260x510 mm | 440x380x170 mm | 755×340×440 mm | ||||
| Packing Weight | 9 kg | 3 kg | GW-17 kg NW-15 kg | ||||
| Electrical Requirement |
|
| 100V | 240V | 100V | 240V | |
| Catalogue No. | 440100-05-04 | 440100-10-04 | 440100-15-01 | 440100-15-02 | 440100-20-01 | 440100-20-02 | |
