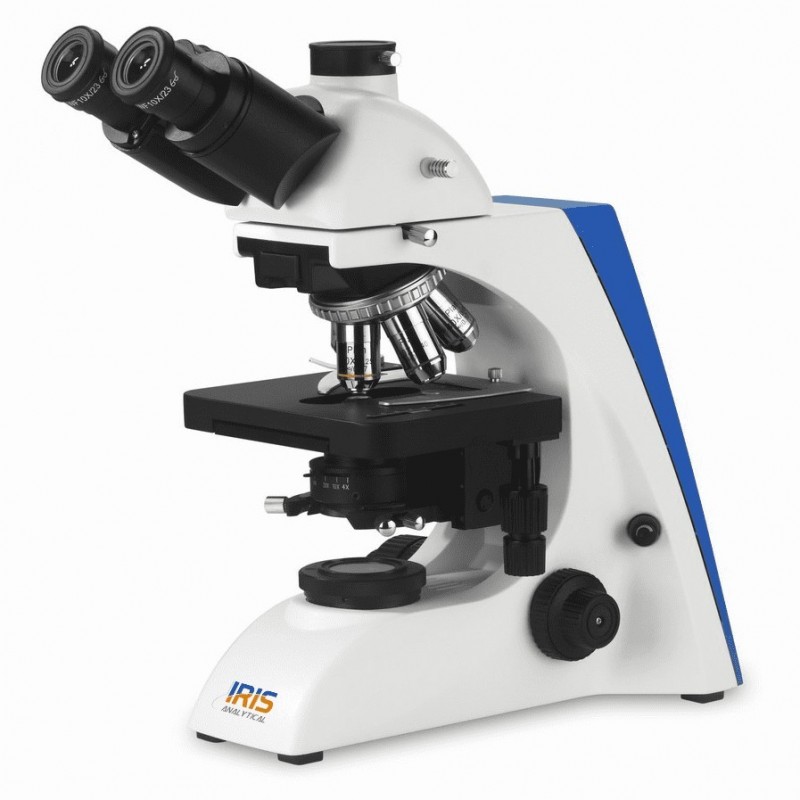

Fluorescent Microscope IMF-1120(240V)
$2,480.00
Fluorescent Microscope IMF-1120 is ideal for biological, histological, pathological, bacteriology, immunizations and pharmacy field and can be widely used in medical and sanitary establishments, clinics, hospitals, laboratories, institutes, academic laboratories, colleges and universities.
Fluorescent Microscope IMF-1120 is ideal for biological, histological, pathological, bacteriology, immunizations and pharmacy field and can be widely used in medical and sanitary establishments, clinics, hospitals, laboratories, institutes, academic laboratories, colleges and universities.
The 5W LED Illumination with consistent color temperature, achromatic objective to ensure high image flatness across the field, single lens and ABBE Condenser with iris diaphragm and backward quadruple revolving nosepiece. The binocular, and Trinocular viewing head has excellent Infinite Plan Achromatic 4×/0.10 of length 12.10mm, 10×/0.25 of length 4.64 mm,20×/0.40(S) of length 2.41mm, 40×/0.65 (S) of 0.65 mm,100×/1.25(S, Oil) of length 0.12 mm objectives and each eye tube has interpupillary adjustment. Designed with blue, green, amber, grey filters as an optional accessory. Provide tremendous fluorescent image with high resolution fluorescent objectives including infinite plan achromatic, achromatic, fluorescent achromatic objective, and backward quintuple resolving nosepiece. Designed with 100W mercury epi-fluorescence, 3W LED epi-fluorescence, and Mercury lamp(HBO) ultra hi-voltage spherical fluorescents lamp. Advantage of HBO mercury lamp: various spectral peaks, incoherent source, reasonable price, and compact light emitting surface. Equipped with excitation filter for incoming light and emitted filters for emitted light and dichroic mirror to reflect the excitation light to the sample and instantaneously transmit only the emitted light from the sample back to the detector.
Sample Images
Accessories
Quintuple turret phase contrast unit with 10X/20X/40X/100X infinite plan phase contrast objective for phase contrast and bright field observation.
N.A.0.9/0.13 Swing-out Condenser observation.
Infinite Plan Objectives
Simple polarizing unit with polarizer and analyzer
4409010-02
Data sheet
- Model
- IMF-1120-240V
- Type
- Fluorescent Microscope
- Viewing Head
- Trinocular Head, 30°, Rotatable 360°, I D: 48-76mm, e)
- Optical System
- Infinite
- Eyepiece
- WF10X22mm (Diopter adjustable), tube diameter: 30 mm(optional: WF15X16mm , WF10X22mm with 0.1mm eyepiece micrometer)
- Nosepiece
- Backward Quintuple
- Objective
- Infinite Plan Achromatic 4X/0.10 WD:12.10mm, 10X/0.25 WD: 4.64 mm,20X/0.40(S) WD: 2.41mm, 40X/0.65 (S) of 0.65 mm,100X/1.25(S, Oil) WD: 0.12 mm
- Stage
- Rackless Double Layers Mechanical stage, Size: 182mm×140mm, Travel Range: 77mm×52mm, Scale: 0.1mm, Two Slide Holder
- Light Source
- 6V/30W Halogen Lamp with Field Diaphragm Koehler(optional: 3W LED Illumination with Field Diaphragm Koehler illumination)
- Condenser
- Swing out condenser N.A.0.9/0.13, with iris diaphragm
- Filter
- Blue filter(optional: Green/ Amber/Grey)
- Optional Accessories
- Dark Field Unit, Polarizing Unit,Phase Contrast Unit, Fluorescent Attachment, Video Adapter, Photo Adapter Filter
- Shipping Dimensions
- 565× 310× 410 mm
- Shipping Weight
- GW-12 kg NW-10 kg
- Fluorescent
- 100W Mercury Epi-Fluorescence and 3W LED Epi-Fluorescence unit(Six-hole disc, Uv/V/B/G and another filters) (optional)
- Electrical Requirement
- 240V
- Catalogue No.
- 440901002-240V
- Advanced lamp housing to protect light leaking
- Wild field WF10X22 mm and WF10X18 mm eyepieces
- Coaxial coarse and fine focusing knob, coarse focusing travel range: 25 mm, coarse stroke 42.4 mm/rotation, fine stroke 0.2 mm/rotation, fine division: 2 µm
- Reckless double layers mechanical stage of length 182×140 mm, travel range of length 77×52 mm, scale: 0.1 mm with 2 slide holder and double layer mechanical stage of length 140×140 mm, cross travel of length 75×50 mm with 2 sides
- Abbe NA 1.25 and swing out condenser N.A.0.9/0.13 with iris diaphragm
- Plan concave mirror and 1W S-LED and 6V/30W halogen lamp light source
- Different filters including blue filter and green, amber, grey filters as an optional accessories
- Binocular 30° inclined and a 360° rotatable head with interpupilary distance 48 to 76 mm, trinocular 30° inclined and a 360° rotatable head with interpupilary distance 48 to 76 mm, and binocular 45° inclined and a 360° rotatable head with interpupilary distance 55 to 75 mm, trinocular 45° inclined and a 360° rotatable head with interpupilary distance 55 to 75 mm
- Small foot print and light weight
- Easy operating with ergonomic design
- Excellent image quality with infinite optical system
- Optional accessories to realize dark field unit, polarizing unit, phase contrast unit, fluorescent attachment, video adapter, photo adapter filter
- 6V/20W Kohler Illumination Halogen lamp as an optional accessories
| Model | IMF-1110 | IMF-1120 | IMF-1130 | IMF-1140 | |||
| Type | Fluorescent Microscope | ||||||
| Viewing Head | Binocular Head, Inclined 30°, Rotatable 360°, I D:: 48-76mm | Trinocular Head, 30°, Rotatable 360°, I D: 48-76mm, e) | Binocular Viewing Head, at 45°, 360° Rotatable, I D: 55-75mm, Anti-mould | Sliding Trinocular Head, at 45°, 360° Rotatable, I D:55-75mm, Anti-mould | |||
| Fluorescent | 100W Mercury Epi-Fluorescence and 3W LED Epi-Fluorescence unit(Six-hole disc, Uv/V/B/G and another filters) (optional) | 100W Mercury lamp(HBO) Ultra Hi-voltage Spherical | |||||
| Reflected Light Source |
|
| Blue : 460-490 excitation, 500 dichroic mirror, 520 barrier filter; Green : 510-550 excitation, 570 dichroic mirror, 590 barrier filter(optional: UV: 330-385 excitation, 400 dichroic mirror, 435 barrier filter and V:400-410 excitation,455 dichroic mirror, 455 barrier filter | ||||
| Optical System | Infinite | - | |||||
| Focusing | Coaxial Coarse and Fine Focusing Knob, Coarse Focusing Travel Range: 25mm, Coarse Stroke 42.4mm/rotation, Fine Stroke 0.2mm/Rotation, Fine division: 2µm | Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 28mm | |||||
| Eyepiece | WF10X22mm (Diopter adjustable), tube diameter: 30 mm(optional: WF15X16mm , WF10X22mm with 0.1mm eyepiece micrometer) | WF10X18mm, Eyepiece Tube Diameter 23.2 mm(optional:WF16X11mm) | |||||
| Nosepiece | Backward Quintuple | Quadruple | |||||
| Objective | Infinite Plan Achromatic 4X/0.10 WD:12.10mm, 10X/0.25 WD: 4.64 mm,20X/0.40(S) WD: 2.41mm, 40X/0.65 (S) of 0.65 mm,100X/1.25(S, Oil) WD: 0.12 mm(optional: 2.5X/0.07 WD: 8.47mm 60X/0.80(S) WD: 0.33 mm, 100X/1.15(S, Water) WD:0.19 mm) | Achromatic Objective 4X, 10X, 40X, 100X Fluorescent Achromatic Objective 4X, 10X, 40X, 100X(optional: Achromatic :20X, 60X) | |||||
| Stage | Rackless Double Layers Mechanical stage, Size: 182mm×140mm, Travel Range: 77mm×52mm, Scale: 0.1mm, Two Slide Holder | Double Layer Mechanical Stage 140×140mm, Cross Travel 75×50mm, Can Hold Two Sides | |||||
| Light Source | 6V/30W Halogen Lamp with Field Diaphragm Koehler(optional: 3W LED Illumination with Field Diaphragm Koehler illumination) | 1W S-LED illumination(optional: 6V/20W Halogen Lamp) | |||||
| Condenser | Swing out condenser N.A.0.9/0.13, with iris diaphragm | Abbe Condenser NA1.25 with Iris Diaphragm & Filter | |||||
| Mirror | - |
| Plan-concave Mirror | ||||
| Filter | Blue filter(optional: Green/ Amber/Grey) | Yes | |||||
| Certification |
|
|
|
| |||
| Optional Accessories | Dark Field Unit, Polarizing Unit,Phase Contrast Unit, Fluorescent Attachment, Video Adapter, Photo Adapter Filter | Photo Attachment, Video Attachment, Polarization Set, Phase Contrast Kit, Dark Field Attachment | |||||
| Packing Dimension | 565× 310× 410 mm | 330x280x440 mm | 380x450x260 mm | ||||
| Packing Weight | GW-12 kg NW-10 kg | 7 kg | 5 kg | ||||
| Electrical Requirement | 100V | 240V | 100V | 240V | - | - | |
| Catalogue No. | 440900501 | 440900502 | 440901001 | 440901002 | 4409015-04 | 4409020-04 | |
Download Catalog
