Clinical Microscope IMB-2106
$860.00
Clinical Microscope IMB-2106 is a digital microscope, ideal for applications in Laboratory, clinical environments.

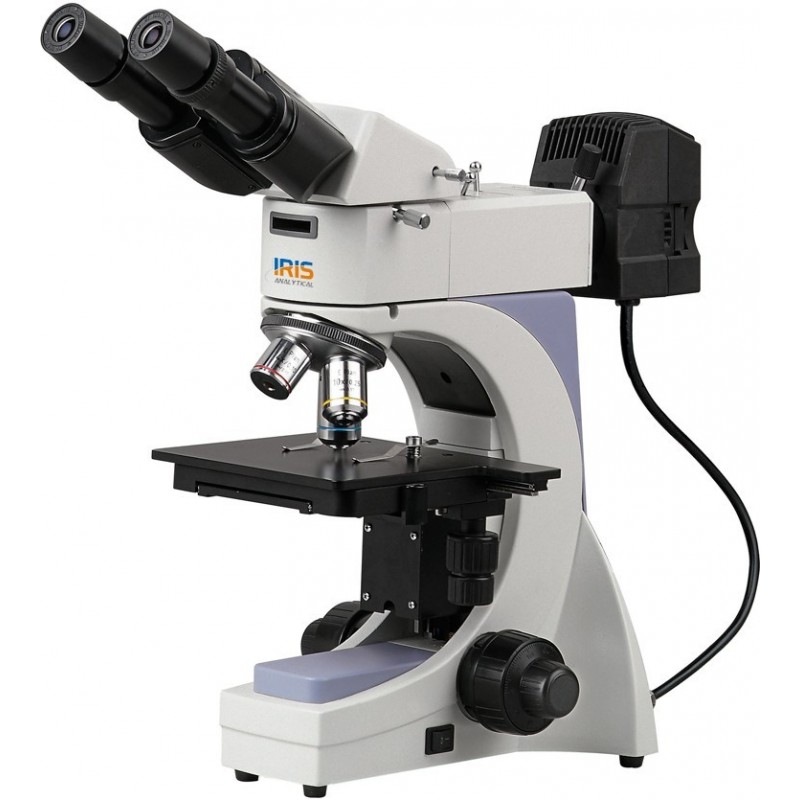

Laboratory Metallurgical Microscope IMM-1144 is a part of the range of laboratory microscope and stands out through its design which is ergonomic, vigorous and constant and stable. This laboratory microscope is used to view samples that will fit on the microscope stage. This range, with its large working distance with infinite plan achromatic: 4X/0.1/∞/-17.3 mm, 10X/0.25/∞/-10.0 mm, 40X/0.60/∞/0-2.9 mm objective. Adjustable 6V/20W halogen lamp Koehler illumination and epi-illuminator ensures the optimum illumination of the materials to be tested. The illuminating system consists of a high-intensity light source, Abbe N.A. 1.25 condenser lenses with Iris Diaphragm. The binocular and trinocular viewing head with wild field WF10X18 mm eyepieces fitted with 48-75mm interpupilary distance as standard. Blue, Green, Yellow and Ground filters are often used to recover detail and polarizing filters, to produce surface glare and to recover grain boundary definition.
Sample Images
440250-05-04
Data sheet
- Model
- IMM-1144
- Type
- Laboratory Metallurgical Microscope
- Viewing Head
- Binocular head, inclined at 30°, 360° rotatable, interpupillary distance 48-75mm
- Optical System
- Infinite
- Focusing
- Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm/ Rotation, Fine Stroke 0.2mm/ Rotation, Range 20mm
- Eyepiece
- WF10X18mm
- Nosepiece
- Quadruple
- Objective
- Infinite Plan Achromatic : 4X/0.1/∞/- 17.3mm, 10X/0.25/∞/- 10.0mm, 40X/0.60/∞/0-2.9mm
- Stage
- Double layer mechanical stage 150×140mm, moving range 75×50mm
- Light Source
- 6V/20W Halogen lamp Kohler Illumination, Epi-illuminator
- Filter
- Blue, Green, Yellow and Ground filters
- Optional Accessories
- Specimen Presser For metallurgical specimen preparation; Polarizer and Analyzer; Photo and Video Adapter
- Catalogue No.
- 440250-05-04
- Infinite plan achromatic objective, and Quadruple nosepiece
- Wild field S WF10X18 mm eyepieces
- Coaxial coarse & fine adjustment fine division of length 0.002 mm, coarse stroke 37.7 mm/rotation, fine stroke 0.2 mm/rotation, range of 20 mm
- Double layer mechanical stage of length 150×140 mm along with moving range 75×50mm
- Strain-free swing out condenser N.A.0.9/0.25
- 6V/20W Halogen lamp reflected and transmitted light source
- Different filters Blue, Green, Yellow and Ground filters
- Binocular 30° inclined and a 360° rotatable head with interpupilary distance 48 to 75 mm and trinocular 30° inclined and a 360° rotatable head with interpupilary distance 48 to 75 mm
- Small foot print and light weight
- Easy operating with ergonomic design
- Excellent image quality with Infinite optical system
- Optional accessories Specimen Presser For metallurgical specimen preparation; Polarizer and Analyzer; Photo and Video Adapter
| Model | IMM-1144 | IMM-1188 |
| Type | Laboratory Metallurgical Microscope | |
| Viewing Head | Binocular head, inclined at 30°, 360° rotatable, interpupillary distance 48-75mm | Trinocular head, inclined at 30°, 360° rotatable, interpupillary distance 48-75mm |
| Optical System | Infinite | |
| Focusing | Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Range 20mm | |
| Eyepiece | WF10X18mm (optional: WF8X18mm, WF10X18mm with 0.1mm micrometer and cross hair WF12.5X15mm) | |
| Nosepiece | Quadruple | |
| Objective | Infinite Plan Achromatic : 4X/0.1/?/- 17.3mm, 10X/0.25/?/- 10.0mm, 40X/0.60/?/0-2.9mm(optional: 5X/0.12/?/-15.5mm, 20X/0.40/?/0 - 5.8mm, 40X/0.65/?/0-0.52mm, 50X/0.75/?/0- 0.32mm, 80X/0.90/?/0- 0.2mm, 100X/0.80/?/0 - 2mm | |
| Stage | Double layer mechanical stage 150×140mm, moving range 75×50mm | |
| Light Source | 6V/20W Halogen lamp Kohler Illumination, Epi-illuminator (OPTIONAL: 3W LEDKohler Illumination, Epi-illuminator) | |
| Polarizing Unit | OPTIONAL | |
| Analyzing Unit | ||
| Filter | Blue, Green, Yellow and Ground filters | |
| Certification |
|
|
| Optional Accessories | Specimen Presser For metallurgical specimen preparation; Polarizer and Analyzer; Photo and Video Adapter | |
| Packing Dimension |
|
|
| Packing Weight |
|
|
| Electrical Requirement |
|
|
| Catalogue No. | 440250-05-04 | 440250-10-04 |
Download Catalog
