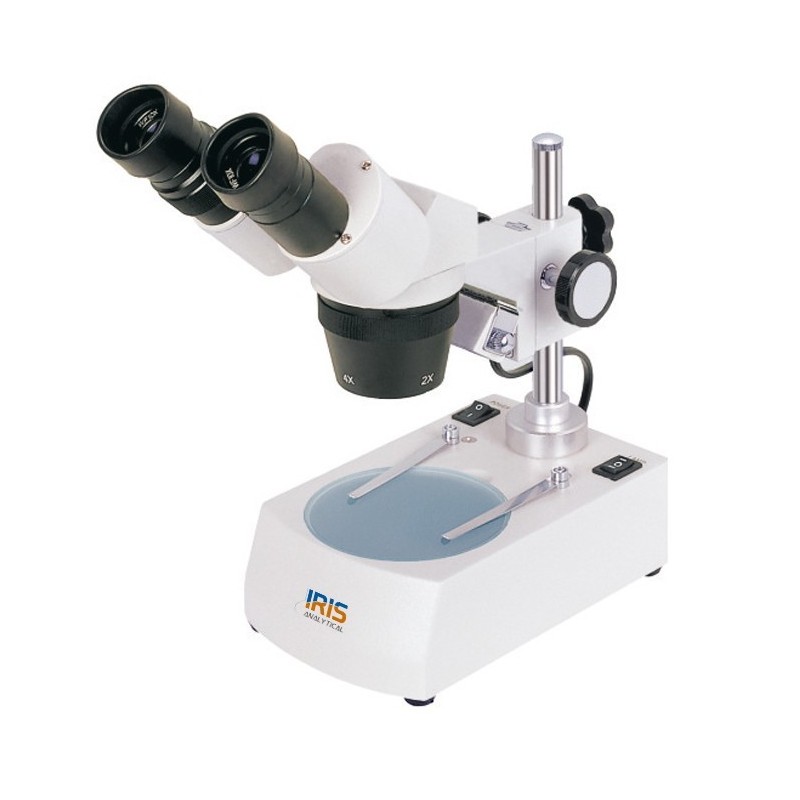

Stereo Microscope IMS-1420 suitable for school education, circuit board inspection, and repair, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, inspection and repair of small parts. The binocular viewing head and V-shaped objective. The stand has the same ergonomic design with both the incident and transmitted lighting systems are rheostat controlled by halogen lamp and Incandescent lamp that allows the illumination to be adjusted to suit the sample type. Provide upright, un-reversed 3D images with high resolution and high quality
Data sheet
| Model | IMS-1410 | IMS-1420 |
| Type | Stereo Microscope | |
| Viewing Head | Binocular Viewing Head, 45° Inclined, Interpupilary Distance 55-75mm, Un-rotatable | Binocular Viewing Head, 45° Inclined, Interpupilary Distance 55-75mm, 360° Rotatable |
| Eyepiece | WF10X20mm(optional: WF5X20mm, WF15X15mm, WF20X10mm | |
| Objective | LWD 2X,4X, 57mm(optional: 1X,2X;1X,3X | LWD: 2X,4X, 76mm(optional: 1X,2X;1X,3X |
| Light Source | 12V/ 10WTransmitted halogen light | 12V/ 10W Incident halogen light |
| Certification |
|
|
| Optional Accessories | Eyepiece | |
| Packing Dimension | 680x310x380 mm | |
| Packing Weight | 16 kg | |
| Electrical Requirement |
|
|
| Catalogue No. | 440145-05-04 | 440145-10-04 |
Fluorescent Microscope IMF-1540 is used to study the absorbing, transportation, chemicals distribution and positioning in cells. It is widely used in disease examination, immune diagnosis and life science areas.
Student Biological Microscope IMB-1204 is ideal for educational applications in elementary and middle schools.
The 0.1W LED Illumination with consistent color temperature, achromatic objective to ensure high image flatness across the field, single lens and ABBE Condenser with iris diaphragm and triple revolving nosepiece.
Clinical Microscope IMB-2228 is ideal for medical analyses area to observe all kinds of slides. They can be widely used in clinics, hospitals, schools, academic labs and scientific research department.
Research Metallurgical Microscope IMM-3490 is a part of the range of research microscope and stands out through its design which is ergonomic, vigorous and constant and stable.
Fluorescent Zoom Stereo Microscope IMS-3245 is the advanced fluorescent type of microscope where you change magnification using a zoom control knob
Laboratory Microscope IMB-3209 is ideal forin biological, histological, pathological field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities. Support multi languages.
Stereo Microscope IMS-1130 is suitable for school education, circuit board inspection, and repair, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, inspection and repair of small parts.
Zoom Stereo Microscope IMS-2325 is thestandard type of microscope where you change magnification using a zoom control knob.
Laboratory Microscope IMB-3360 is ideal for the biology field, bacteriology field, immunology field, pharmacology field and so on. They widely used in academic, medical and clinical areas for biological, pathological, bacterial, histological, immune and genetic applications.
Multi-head Biological Microscope IMB-2110 is cost-effective and laboratory-grade performance, choose quadruple nosepiece achromatic objective Multi-head Biological Microscope.
Educational Biological Microscope IMB-1309 is economical microscope with all basic features for educational use in elementary and middle schools.
Fluorescent Microscope IMF-1110 is ideal for biological, histological, pathological, bacteriology, immunizations and pharmacy field and can be widely used in medical and sanitary establishments, clinics, hospitals, laboratories, institutes, academic laboratories, colleges and universities.
Polarizing Microscope IMP-1302 equipped with a high degree of sensitivity and best suited for anisotropic (mineral) specimens such as geology, minerals, metallurgy, university teaching laboratories, and other sectors.
Zoom Stereo Microscope IMS-2525 is the standard type of microscope where you change magnification using a zoom control knob
Fluorescent Microscope IMF-1480 is ideal for education, pathology investigation, clinical and laboratory usage. Innovative LED as fluorescence illumination source, provide excellent image with easy and comfortable usage experience.
Polarizing Microscope IMP-2201 equipped with a high degree of sensitivity and best suited for anisotropic (mineral) specimens such as geology, minerals, metallurgy, university teaching laboratories, and other sectors.
Stereo Microscope IMS-1420 suitable for school education, circuit board inspection, and repair, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, inspection and repair of small parts.
