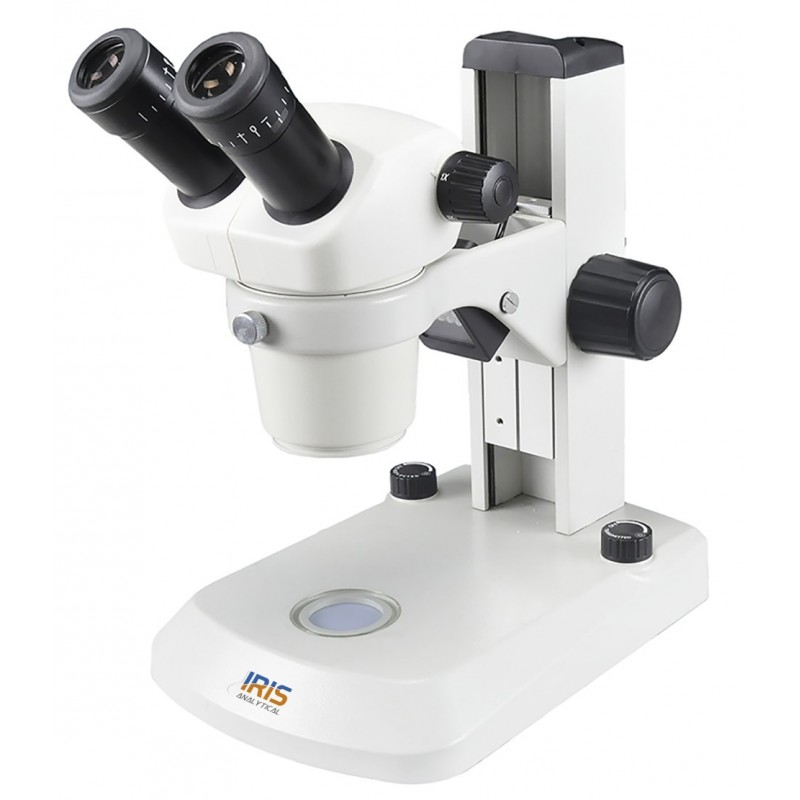

Stereo Microscope IMS-1610 is suitable for school education, circuit board inspection, and repair, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, inspection and repair of small parts. The binocular, and trinocular viewing head and V-shaped objective. The stand has the same ergonomic design with the incident lighting systems are rheostat controlled by LED lamp that allows the illumination that allows the illumination to be adjusted to suit the sample type. Provide upright, un-reversed 3D images with high resolution and high quality.
Sample Images
Data sheet
| Model | IMS-1610 | IMS-1620 |
| Type | Stereo Microscope | |
| Viewing Head | Binocular Viewing Head, at 45°, 360° rotatable, Interpupillary adjusting distance 55-75mm(optional: Binocular Viewing Head, at 60°, 360° rotatable, Interpupillary adjusting distance 55-75mm) | Trinocular Viewing Head, at 45°, 360° rotatable, Interpupillary adjusting distance 55-75mm(optional: Binocular Viewing Head, at 60°, 360° rotatable, Interpupillary adjusting distance 55-75mm) |
| Magnification | 5X-240X | |
| Focusing | Coarse Focus, Focusing Range 100mm | |
| Eyepiece | Diopter Adjustment: WF10×/23mm (optional: WF10X22mm,WF10X20mm,WF15X16m, WF20X12mm, WF30X8mm, WF10X eyepiece with cross hair) | |
| Objective | Changeable objective: 2X, 4X 97 mm and Head Mount-76 mm(optional: Changeable- 2X, 3X; 1X, 2X;1X, 3X;1X, 4X, Auxiliary objective : 2X, 30mm, 0.75X 120mm, 0.63X,137mm, 0.5X ,180 mm | |
| Light Source | Incident Illumination 100V-240V/ LED and Transmitted Illumination 100V-240V/ LED | |
| Certification |
|
|
| Accessories | 0.5× C-mount video adaptor | |
| Optional Accessories | 1× C-mount or 23.2mm video tube, Photo Adapter | |
| Packing Dimension |
|
|
| Packing Weight |
|
|
| Electrical Requirement |
|
|
| Catalogue No. | 440155-05-04 | 440155-10-04 |
Research Microscope IMB-4260 is ideal for biological, histological, pathological, bacteriology, immunizations and pharmacy field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities. Equipped with infinite optical system.
Student Biological Microscope IMB-1202 is ideal for educational applications in elementary and middle schools.
The 0.1W LED Illumination with consistent color temperature, achromatic objective to ensure high image flatness across the field, single lens and ABBE Condenser with iris diaphragm and triple revolving nosepiece.
Fluorescent Zoom Stereo Microscope IMS-3235 is the advanced fluorescent type of microscope where you change magnification using a zoom control knob.
Wide Field Zoom Stereo Microscope IMS-3255 isdesigned forlarge viewing field without eyepiece for sharp and stereoscopic images from the lens in microscope head and has excellent objective to choose 2X, 4X, 6X, with optional choice 8X, 10X, 15X and 6XSL objectives.
Student Biological Microscope IMB-1204 is ideal for educational applications in elementary and middle schools.
The 0.1W LED Illumination with consistent color temperature, achromatic objective to ensure high image flatness across the field, single lens and ABBE Condenser with iris diaphragm and triple revolving nosepiece.
Stereo Microscope IMS-1210 suitable for school education, circuit board inspection, and repair, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, inspection and repair of small parts.
Gemological Microscope IGM-1100 used to examine diamonds, emeralds, rubies and all other types of precious stones.
Research Metallurgical Microscope IMM-3480 is a part of the range of research microscope and stands out through its design which is ergonomic, vigorous and constant and stable.
Multi-head Biological Microscope IMB-2120 is cost-effective and laboratory-grade performance, choose quadruple nosepiece achromatic objective Multi-head Biological Microscope.
Educational Biological Microscope IMB-1303 is economical microscope with all basic features for educational use in elementary and middle schools.
The 1W LED Illumination with consistent color temperature, achromatic objective to ensure high image flatness across the field, single lens and ABBE Condenser with iris diaphragm and triple, quadruple revolving nosepiece.
Multi-head Biological Microscope IMB-2130 is cost-effective and laboratory-grade performance, choose quadruple nosepiece achromatic objective Multi-head Biological Microscope.
Polarizing Microscope IMP-1204 equipped with a high degree of sensitivity and best suited for anisotropic (mineral) specimens such as geology, minerals, metallurgy, university teaching laboratories, and other sectors.
Multi-head Biological Microscope IMB-2230 is cost-effective and laboratory-grade performance, choose quintuple nosepiece infinite plan achromatic objective Multi-head Biological Microscope.
Stereo Microscope IMS-1420 suitable for school education, circuit board inspection, and repair, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, inspection and repair of small parts.
Trinocular Zoom Stereo Microscope IMS-3204 is the advanced type of microscope where you change magnification using a zoom control knob
Zoom Stereo Microscope IMS-2190 is thestandard type of microscope where you change magnification using a zoom control knob.
Stereo Microscope IMS-1610 is suitable for school education, circuit board inspection, and repair, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, inspection and repair of small parts.
