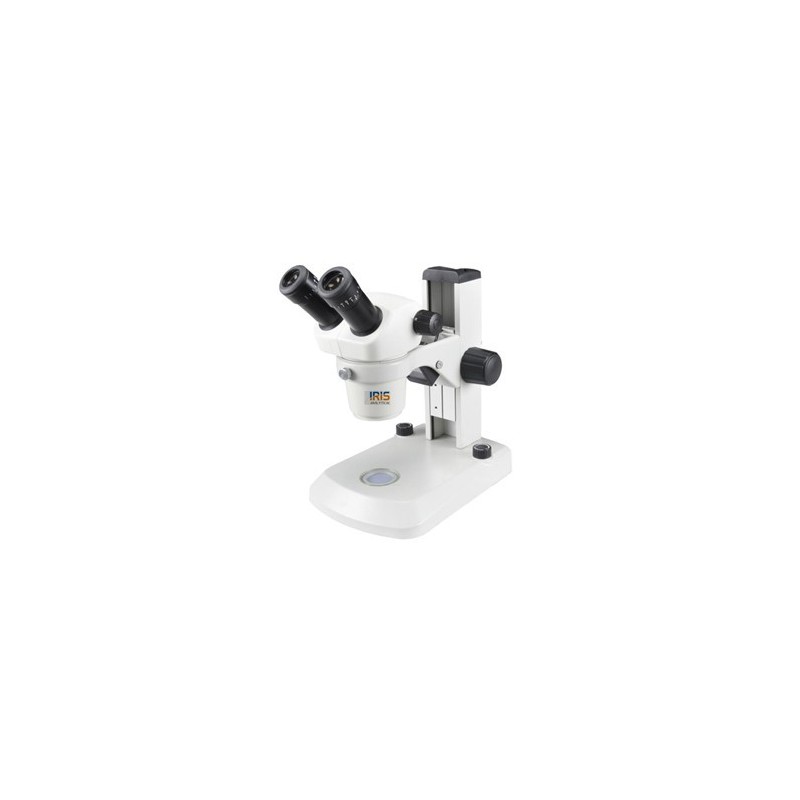

Stereo Microscope IMS-1620 is suitable for school education, circuit board inspection, and repair, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, inspection and repair of small parts. The binocular, and trinocular viewing head and V-shaped objective. The stand has the same ergonomic design with the incident lighting systems are rheostat controlled by LED lamp that allows the illumination that allows the illumination to be adjusted to suit the sample type. Provide upright, un-reversed 3D images with high resolution and high quality.
Sample Images
Data sheet
| Model | IMS-1610 | IMS-1620 |
| Type | Stereo Microscope | |
| Viewing Head | Binocular Viewing Head, at 45°, 360° rotatable, Interpupillary adjusting distance 55-75mm(optional: Binocular Viewing Head, at 60°, 360° rotatable, Interpupillary adjusting distance 55-75mm) | Trinocular Viewing Head, at 45°, 360° rotatable, Interpupillary adjusting distance 55-75mm(optional: Binocular Viewing Head, at 60°, 360° rotatable, Interpupillary adjusting distance 55-75mm) |
| Magnification | 5X-240X | |
| Focusing | Coarse Focus, Focusing Range 100mm | |
| Eyepiece | Diopter Adjustment: WF10×/23mm (optional: WF10X22mm,WF10X20mm,WF15X16m, WF20X12mm, WF30X8mm, WF10X eyepiece with cross hair) | |
| Objective | Changeable objective: 2X, 4X 97 mm and Head Mount-76 mm(optional: Changeable- 2X, 3X; 1X, 2X;1X, 3X;1X, 4X, Auxiliary objective : 2X, 30mm, 0.75X 120mm, 0.63X,137mm, 0.5X ,180 mm | |
| Light Source | Incident Illumination 100V-240V/ LED and Transmitted Illumination 100V-240V/ LED | |
| Certification |
|
|
| Accessories | 0.5× C-mount video adaptor | |
| Optional Accessories | 1× C-mount or 23.2mm video tube, Photo Adapter | |
| Packing Dimension |
|
|
| Packing Weight |
|
|
| Electrical Requirement |
|
|
| Catalogue No. | 440155-05-04 | 440155-10-04 |
