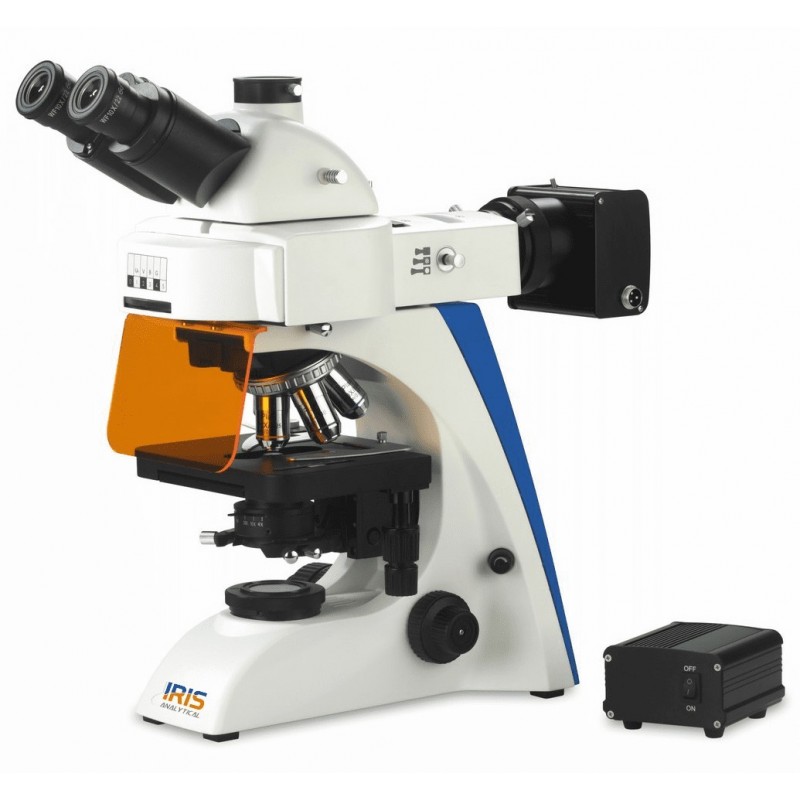

Fluorescent Microscope IMF-1480 is ideal for education, pathology investigation, clinical and laboratory usage. Innovative LED as fluorescence illumination source, provide excellent image with easy and comfortable usage experience. 3W LED Epi-Fluorescence Illumination with consistent color temperature, achromatic objective to ensure high image flatness across the field, single lens and ABBE Condenser with iris diaphragm and backward quadruple revolving nosepiece. The binocular, and Trinocular viewing head has excellent Infinite E-Plan Achromatic Objective 4X/0.10 of length 12.10mm,10X0.25 of length4.64 mm,20X/0.40(S) of length2.41 mm,40X/0.65 (S) of length0.65 mm,100X/1.25(S, Oil) of length 0.12 mm objectives and each eye tube has interpupillary adjustment. Designed with blue, green, amber, grey filters as an optional accessory. Provide tremendous fluorescent image with high resolution fluorescent objectives including infinite Plan achromatic objective, and backward Quintuple resolving nosepiece. Designed with LED epi-fluorescent uni, 3w led fluorescent lamp, mercury lamp epi-fluorescence lamp. Equipped with excitation filter for incoming light and emitted filters for emitted light and dichroic mirror to reflect the excitation light to the sample and instantaneously transmit only the emitted light from the sample back to the detector
Data sheet
| Model | IMF-1470 | IMF-1480 | |||
| Type | Fluorescent Microscope | ||||
| Viewing Head | Binocular Head, 30°, Rotatable 360°, ID: 48-76mm | Trinocular Head, 30°, Rotatable 360°, I D: 48-76mm, | |||
| Fluorescent | 3W LED Epi-Fluorescence unit (Six-hole disc, B &G filters(optional: Auramine O /U/V filters and corresponding fluorescence lamps and 100W Mercury Epi-Fluorescence unit) | ||||
| Optical System | Infinite | ||||
| Focusing | Coaxial Coarse and Fine Focusing Knob, Coarse Focusing Travel Range: 25mm, Coarse Stroke 42.4mm/rotation, Fine Stroke 0.2mm/Rotation, Fine division: 2µm | ||||
| Eyepiece | WF10X22mm (Diopter adjustable), tube diameter:30mm(optional:WF15X16mm , WF10X22mm with 0.1mm) | ||||
| Nosepiece | Backward Quintuple | ||||
| Objective | Infinite Plan Achromatic: 4X/0.10 of length 12.10mm,10X/0.25 of length4.64 mm,20X/0.40(S) of length2.41 mm,40X/0.65 (S) of length0.65 mm,100X/1.25(S, Oil) of length 0.12 mm (optional:2.5X/0.07 of length8.47mm, 60X/0.80(S) of length 0.33 mm) | ||||
| Stage | Rackless Double Layers Mechanical stage, Size: 182mm | ||||
| Light Source | 6V/30W Halogen Lamp with Field Diaphragm(optional:3W LED) | ||||
|
Condenser | Swing out condenser N.A.0.9/0.13, with iris diaphragm | ||||
| Filter | Blue(optional: Green/ Amber/Grey filters) | ||||
| Certification |
|
| |||
| Optional Accessories | Video Adapter, Photo Adapter, Filter, Dark Field Unit, Polarizing Unit, Phase Contrast Unit, Koehler Illumination | ||||
| Packing Dimension | 755x340x440 mm | ||||
| Packing Weight | GW-17 kg NW- 15 kg | ||||
| Electrical Requirement | 100 V | 240 V | 100 V | 240 V | |
| Catalogue No. | 440105-05-01 | 440105-05-02 | 440105-10-01 | 440105-10-02 | |
