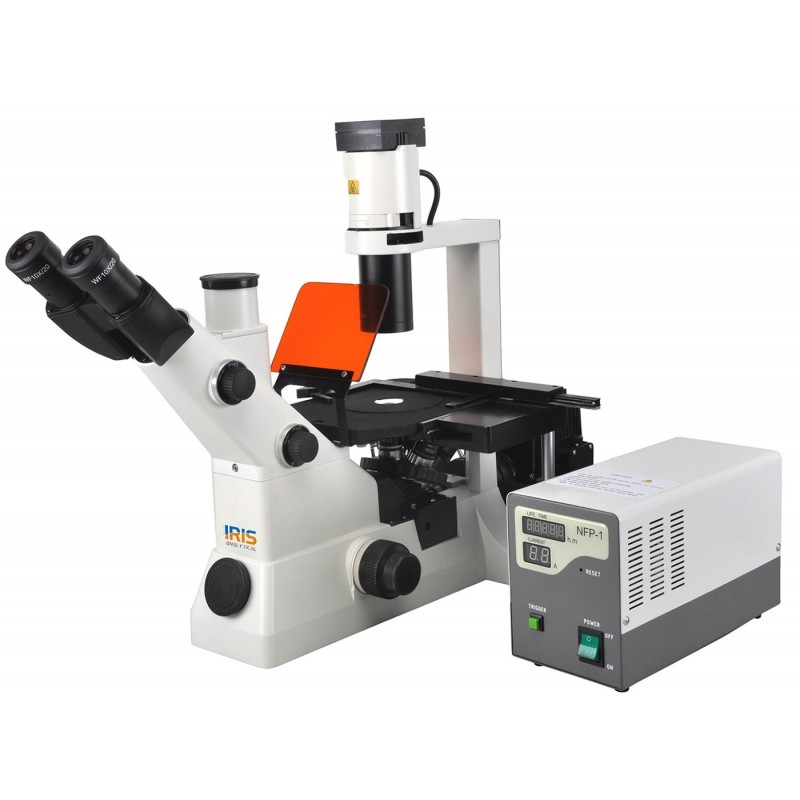

Inverted Fluorescence Microscope IMF-3200 deals with the flexibility and power that user needs to advance their work along with high-resolution cameras, and vivid 6V/30W Halogen lamp illumination and 100W HBO Ultra Hi-voltage Spherical Mercury Lamp as a light source, these inverted systems are highly flexible and fit perfectly for user laboratory needs.
Inverted Fluorescence Microscope IMF-3200 deals with the flexibility and power that user needs to advance their work along with high-resolution cameras, and vivid 6V/30W Halogen lamp illumination and 100W HBO Ultra Hi-voltage Spherical Mercury Lamp as a light source, these inverted systems are highly flexible and fit perfectly for user laboratory needs. Ideal for cell culture used in universities, hospitals and life science labs for disease examination, immune diagnosis and scientific research. Equipped with trinocular viewing head and different filters including Blue, Green and Ground glass filters. It is a significant instrument finished to a high standard. High performance, long working distance Infinite Plan Achromatic objectives are fitted as standard with a reversed quintuple nosepiece and Extra Long Working Distance NA 0.3 of length 72 mm condenser. Features with 10×/ 0.25, 6 mm, 20×/ 0.4, 3.1mm, 40×/ 0.55, 2.2 mm high-level phase contrast objective with a corresponding phase plate and focusing Centering telescope of length 30 mm is included as standard. Provide tremendous fluorescent image with high resolution fluorescent objectives including LWD Infinite Plan Achromatic, High Level Phase Contrast objective, and backward quintuple nosepiece. Designed with 100W HBO Ultra Hi-voltage Spherical Mercury, 6V/30W Halogen Lamp Kohler Illumination fluorescents lamp. Advantage of HBO mercury lamp: various spectral peaks, incoherent source, reasonable price, and compact light emitting surface. Equipped with excitation filter for incoming light and emitted filters for emitted light and dichroic mirror to reflect the excitation light to the sample and instantaneously transmit only the emitted light from the sample back to the detector.
Accessories
Inverted Fluorescent Attachments
Unit Dimension(mm)
Data sheet
| Model | IMF-3200 |
| Type | Inverted Fluorescence Microscope |
| Viewing Head | Trinocular Viewing Head, Inclined at 45°, 360° Rotatable, Interpupillary Distance 48-75mm |
| Phase Annular | 10×, 20×, 40× Phase Annular Plate(Center Adjustable) |
| Reflected Light Source | Blue: 460 to 490 nm excitation,500 Dichroic Mirror, 520 Barrier Filter; Green: 480 to 550 nm excitation,570 Dichroic Mirror, 590 Barrier Filter(optional:UV:330 to385 excitation,400 Dichroic Mirror, 420 Barrier Filter; V: 400 to 410 nm excitation,455 Dichroic Mirror, 455 Barrier Filter; Red: 620 to 650 nm excitation,660 Dichroic Mirror, 670 to 750 Barrier Filter) |
| Optical System | Infinite |
| Focusing | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range up 4.5mm, down 4.5mm |
| Eyepiece | Wide Field Eyepiece WF10×/ 20mm, Eyepiece Tube Diameter 30mm(optional: WF15×/ 16mm, WF20×/ 12mm) |
| Nosepiece | Backward Quintuple |
| Objective | LWD(Long Working Distance): 10×/ 0.25,6mm, 20×/ 0.4,3.1mm, Infinite Plan Achromatic:40×/ 0.55, 2.2 mm(optional: High Level Phase Contrast: 10×/ 0.25, 6mm, 20×/ 0.4, 3.1mm, 40×/ 0.55, 2.2mm |
| Condenser | ELWD(Extra Long Working Distance) Condenser NA 0.3, LWD 72mm (Without Condenser 150mm) |
| Telescope | Centering Telescope(30 mm) |
| Stage | Plain Stage 230×170mm, Glass Insert Plate, Attachable Mechanical Stage, X,Y Coaxial Control, Moving Rang 80mm×120mm, Auxiliary Stages 70mm×180mm, Terasaki Holder, Petri Dish Holder 38mm, Petri Dish Holder 54mm |
| Light Source | 6V/30W Halogen Lamp(optional: LED lamp 5W) |
| Mirror |
|
| Filter | Blue, Green and Ground Glass, Diameter 45mm |
| Certification |
|
| Accessories | 100W HBO Ultra Hi-voltage Spherical Mercury Lamp, Barrier to Resist the Ultraviolet Light, Power Supplier NFP-1, 220V/ 110V interchangeable, Digital Display, Fluorescent Free Oil |
| Optional Accessories | Photo Adapter, 0.5× C-mount, Modulation Contrast |
| Packing Dimension | 369x610x620 mm |
| Packing Weight | 6 kg |
| Electrical Requirement |
|
| Catalogue No. | 440125-05-04 |
