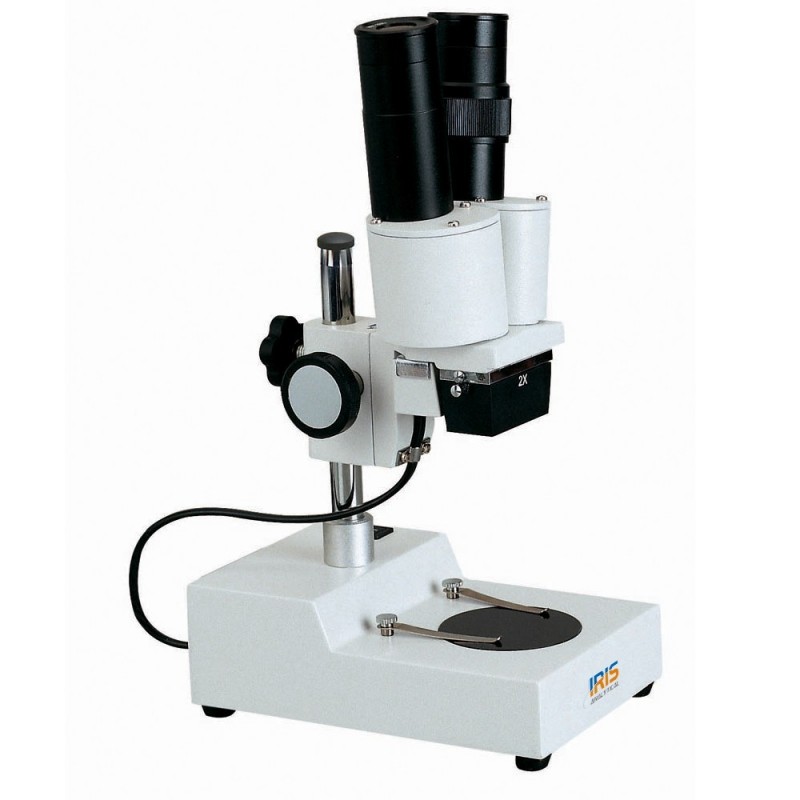

Stereo Microscope IMS-1120 is suitable for school education, circuit board inspection, and repair, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, inspection and repair of small parts. The upright binocular viewing head and V-shaped objective. The stand has the same ergonomic design with both frosted glass of length 95 mm and opaque black/white of length 60 mm stage plates. However, both the incident and transmitted lighting systems are rheostat controlled by natural light and Incandescent lamp that allows the illumination to be adjusted to suit the sample type.
Data sheet
| Model | IMS-1110 | IMS-1120 | IMS-1130 | |||
| Type | Stereo Microscope | |||||
| Viewing Head | Upright Binocular Viewing Head, Interpupillary Distance 55-75mm, diopter adjustment ±5dp on left ocular-tube, Tube diameter 23.2mm | |||||
| Eyepiece | WF10X20mm(optional:WF5X20 mm, WF15X15 mm, WF20X10 mm | |||||
| Objective | LWD 2X, 80 mm(optional: 6X,66mm, 1X, 57mm, 4X, 57mm, 2X, 80mm | |||||
| Stage | White and black Plate: 60 mm | White and black Plate and Frosted glass : 95 mm | ||||
| Light Source | Natural light | 12V/10W Incandescent lamp with Incident illumination | 12V/10W Incandescent lamp with Incident and transmitted illumination | |||
| Certification | CE | |||||
| Optional Accessories | Eyepiece, objective | |||||
| Packing Dimension | 680x310x380 mm | |||||
| Packing Weight | GW- 11kg NW-7 kg | |||||
| Electrical Requirement | 110V/60HZ | 220V/50HZ | 110V/60HZ | 220V/50HZ | 110V/60HZ | 220V/50HZ |
| Catalogue No. | 440130-05-01 | 440130-05-02 | 440130-10-01 | 440130-10-02 | 440130-15-01 | 440130-15-01 |
