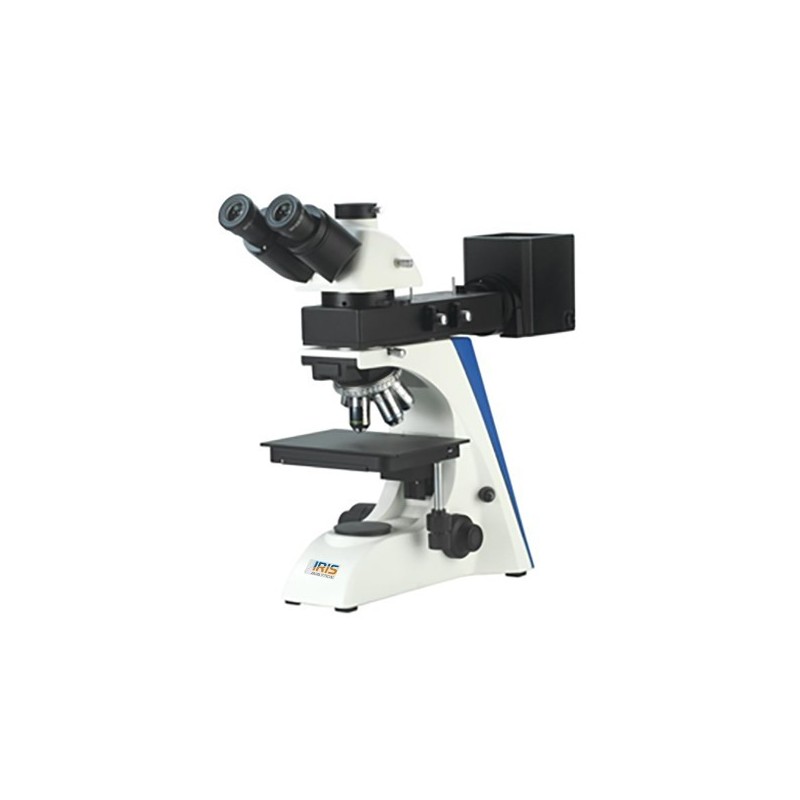

Laboratory Metallurgical Microscope IMM-1244 is a part of the range of laboratory microscope and stands out through its design which is ergonomic, vigorous and constant and stable. This laboratory microscope is used to view samples that will fit on the microscope stage. This range, with its large working distance with infinite plan: 5X/0.10,24-23mm, 10X/0.25-18.48mm, 20X/0.40 (S)-8.35mm, 50X/0.7-1.95mm objective. Adjustable 12V/50W reflected and transmitted halogen lamp to ensure the optimum illumination of the materials to be tested. The illuminating system consists of a high-intensity light source, Abbe N.A. 1.25 condenser lenses with Iris Diaphragm. The binocular viewing head with wild field WF10X22 mm, WF10X22 mm eyepieces fitted with 48-76 mm interpupilary distance as standard. Blue with optional Green, Yellow and Ground filters are often used to recover detail and polarizing filters, to produce surface glare and to recover grain boundary definition.
Data sheet
| Model | IMM-1244 | IMM-1288 |
| Type | Laboratory Metallurgical Microscope | |
| Viewing Head | Binocular Head, Inclined 30°, Rotatable 360°, Interpupilary Distance: 48-76mm, Tube diameter: 30mm(optional: Trinocular Head, Inclined 30°, Rotatable 360°, Interpupilary Distance: 48-76mm, Tube diameter: 30mm) | |
| Optical System | Infinite | |
| Focusing | Coaxial Coarse and Fine Focusing, Fine Division 0.002mm, Fine Stroke 0.2mm per Rotation, Moving Range 25mm. Tightness adjustment, upper distance limiter | |
| Eyepiece | Adjustable WF10X22mm, WF10X22mm | |
| Nosepiece | Backward Quintuple | |
| Objective | Long Working Distance, Infinite Plan: 5X/0.10,24.23mm, 10X/0.25,18.48mm, 20X/0.40 (S)8.35mm, 50X/0.7,1.95mm (optional:40X0.65 (S)3.90mm, 80X/0.80 (S)0.85mm , 100X/0.90 (S)1.00mm) | |
| Stage | Mechanical Stage: 200x150mm, Travel range: 77x52mm. Stage fast lowering unit: | Mechanical Stage: 182x140mm, Travel range: 77x52mm, Two slid holder, Metal plate size: 200x150mm |
| Light Source | 12V/50W Halogen lamp Reflected illumination | 12V/50W Halogen lamp Reflected and 6V/20W Halogen lamp transmitted illumination |
| Polarizing Unit | Yes | |
| Analyzing Unit | ||
| Condenser | - | Abbe N.A. 1.25 with Iris Diaphragm |
| Filter | Blue (optional: amber, green, grey) filters | |
| Certification |
|
|
| Optional Accessories | C-mount Adapter, filters | |
| Packing Dimension | 750×360×450 mm | |
| Packing Weight | GW-16 kg NW-12 kg | |
| Electrical Requirement |
|
|
| Catalogue No. | 440255-05-04 | 440255-10-04 |
