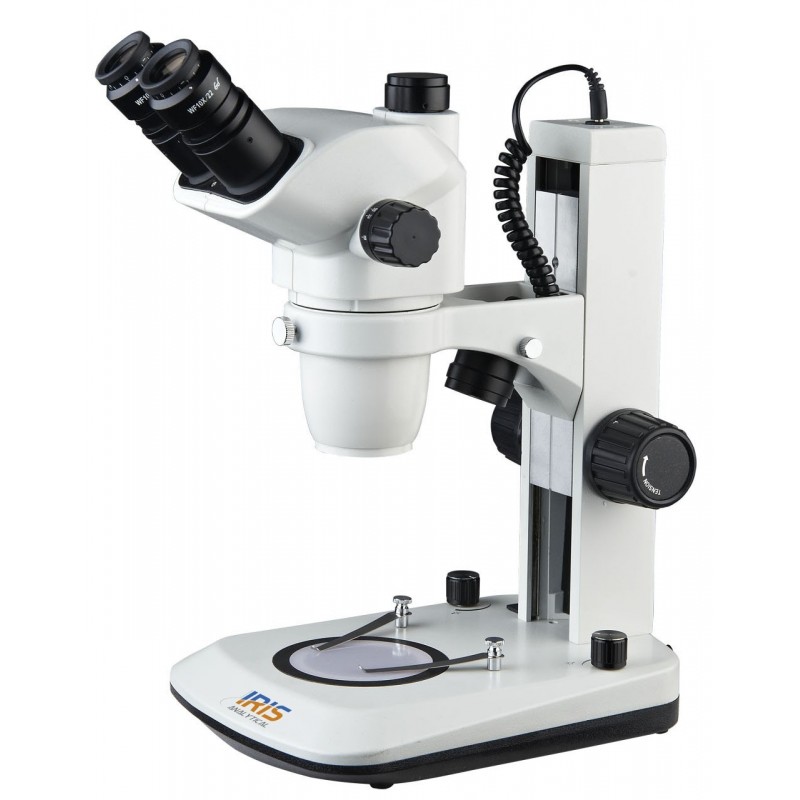

Zoom Stereo Microscope IMS-2545
$2,270.00
Zoom Stereo Microscope IMS-2545 is the standard type of microscope where you change magnification using a zoom control knob.
Zoom Stereo Microscope IMS-2355 is thestandard type of microscope where you change magnification using a zoom control knob. The binocular and trinocular viewing head with wield field eyepieces and has excellent zoom objective to choose 0.67X-4.5X and auxiliary objective 0.3X and 0.5X objectives and each eye tube has interpupillary adjustment. IMS-2300 Series is capable of providing strong images with a broad field of view, the multipurpose and perfect for basic studies of samples properties. Come with incident and transmitting LED lights, allowing samples to be illuminated for a more comprehensive field of view. Suitable for education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science and veterinary industries. The microscopes can be used for circuit board repair and inspection, SMT work, electronics inspection, dissection, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts. Known for its dissecting featuring that allow to examine the huge specimen under 0.67X-4.5X low zoom magnification objective.
440170-20-04
Data sheet
- Model
- IMS-2355
- Type
- Zoom Stereo Microscope
- Viewing Head
- Trinocular head, at 45°, rotatable 360°, ID: 54-75mm, diopter adjustment on both eyepieces
- Optical System
- Greenough
- Focusing
- Coarse focus knob with tension adjustable, moving range: 106mm. Focusing arm diameter: 76mm
- Eyepiece
- WF10X22mm
- Light Source
- 5V 3W LED Reflected
Transmitted illumination - Standard Accessories
- 0.5× C-mount adapter (adjustable)(optional: Photo Adapter, 1× C-mount adapter )
- Shipping Dimensions
- 510x370x310 mm
- Shipping Weight
- GW-6.5 nw-5.5 kg
- Magnification
- 0.67X-4.5X
- Zoom Ratio
- 1:6.7 WD:105 mm
- Pillar Stand
- Column Height:300 mm base size: 205×275×40 mm
- Catalogue No.
- 440170-20-04
- High point wild field WF10X/22 mm eyepieces
- Maximum magnification of up to 0.67X-4.5X
- Coarse focus knob with tension adjustable, moving range: 106 mm. Focusing arm diameter: 76 mm
- 3W LED light source with incident and transmitted illumination
- Binocular 45° inclined and a 360° rotatable viewing head with Interpupillary adjusting distance 54-76 mm and trinocular 45° inclined and a 360° rotatable viewing head with Interpupillary adjusting distance 55-76 mm
- Small foot print and light weight
- Easy operating with ergonomic design
- Greenough optical system
- accessories adjustable 0.5× C-mount adapter
- Optional accessories Photo Adapter, 1× C-mount adapter
| Model | IMS-2325 | IMS-2335 | IMS-2345 | IMS-2355 |
| Type | Zoom Stereo Microscope | |||
| Viewing Head | Binocular head, at 45°, rotatable 360°, I D: 54-75mm, diopter adjustment on both eyepieces | Trinocular head, at 45°, rotatable 360°, I D:54-75mm, diopter adjustment on both eyepieces | Binocular head, at 45°, rotatable 360°, ID: 54-75mm, diopter adjustment on both eyepieces | Trinocular head, at 45°, rotatable 360°, ID: 54-75mm, diopter adjustment on both eyepieces |
| Magnification | 0.67X-4.5X | |||
| Optical System | Greenough | |||
| Zoom Ratio | 1:6.7 WD:105 mm | |||
| Focusing | Coarse focus knob with tension adjustable, moving range: 106mm. Focusing arm diameter: 76mm | |||
| Eyepiece | WF10X22mm (optional: WF15X16 mm, WF20X12 mm, WF25X9 mm, WF30X8 mm, WF10X22mm with cross line) | |||
| Piller Stand | Column Height:300 mm base size: 205×275×22mm(optional:500mm (used with 0.3X and 0.5X auxiliary objective)) | Column Height:300 mm base size: 205×275×40 mm(optional:500mm (used with 0.3X and 0.5X auxiliary objective)) | ||
| Light Source | optional: 5V 3W LED Reflected Transmitted illumination | 5V 3W LED Reflected Transmitted illumination | ||
| Certification |
|
|
|
|
| Accessories | - | 0.5× C-mount adapter (adjustable)(optional: Photo Adapter, 1× C-mount adapter ) | - | 0.5× C-mount adapter (adjustable)(optional: Photo Adapter, 1× C-mount adapter ) |
| Packing Dimension | 510x370x310 mm | |||
| Packing Weight | GW-6.5 nw-5.5 kg | |||
| Electrical Requirement |
|
|
|
|
| Catalogue No. | 440170-05-04 | 440170-10-04 | 440170-15-04 | 440170-20-04 |
Download Catalog
