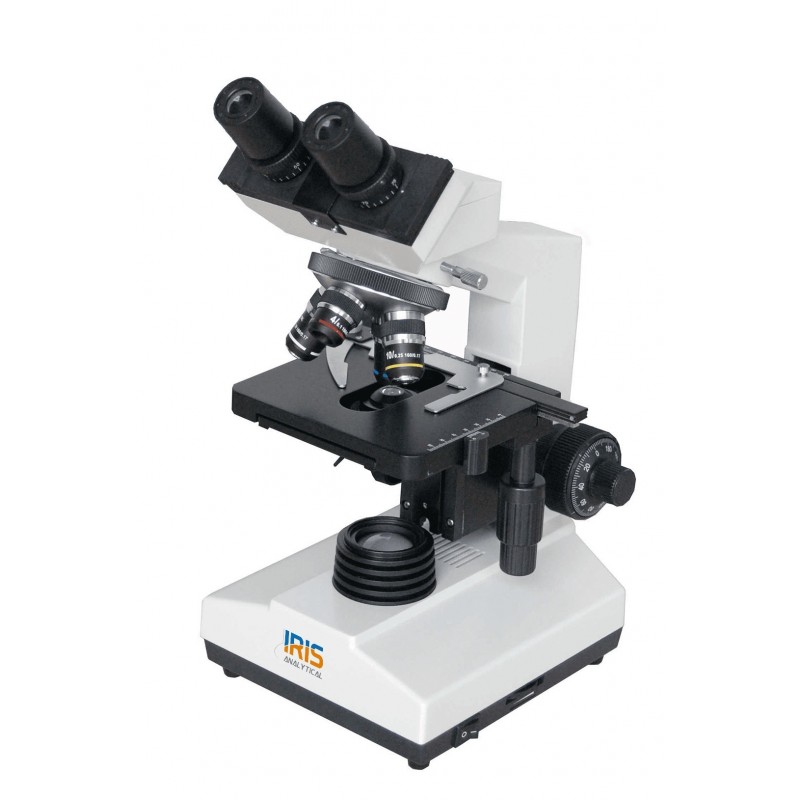

Laboratory Microscope IMB-3218 is ideal forin biological, histological, pathological field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities. Support multi languages.
The 1W S-LED Illumination with consistent color temperature, achromatic objective to ensure high image flatness across the field, single lens and ABBE Condenser with iris diaphragm and quadruple revolving nosepiece. This model of microscopes allow handlers to remain relaxed during long periods of routine microscopy observations. The microscope frame adapts the handler’s hands and the location of the control knobs maximizes ergonomics to recover work efficiency. Fast and rapid set a specimen with one hand while adjusting the focus and operating the stage with the other hand with slight movement. The monocular, sliding binocular, trinocular viewing head has excellent achromatic. 44×, 10×, 40×, 100×(optional:20×, 60×, Semi-Plan Achromatic 4×, 10×, 20×, 40×, 60×, 100×, Plan Achromatic 4×, 10×, 20×, 40×, 60×, 100×) objective and each eye tube has interpupilary adjustment. Features with quadruple revolving nosepiece holds multiple lenses, and found between the eyepiece and the stage allowing the user to turn it to achieve various levels of magnification. Though the exact level of magnification may vary with different models, most microscopes provide a low power lens with about 5X magnification and a high power lens with about 100X magnification. Featured with Single Lens and chromatic condenser Abbe with Iris Diaphragm that are concentrates and controls the light that passes through the specimen prior to entering the objective with modern cameras use a type of adjustable diaphragm known as an iris diaphragm which can reduce the amount light that hits a detector by decreasing the aperture and Filter.
Sample Images
Data sheet
Technical Specifications
Model | IMB-3209 | IMB-3218 | IMB-3227 | IMB-3236 |
Type | Biological Microscope | |||
Viewing Head | Monocular Head at 45°,360° | Sliding Binocular Head at 45°, 360° Interpupillary distance 55-75mm(optional: Interpupillary 48-75mm) | Sliding Trinocular Head, at 45 º and 360 º, Interpupillary distance 55-75mm | Sliding Binocular Head with 1.3MP digital camera, at 45°, 360°; Interpupillary 55-75mm |
Focusing | Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 28mm | |||
Eyepiece | WF10X18 mm(optional:WF16X 11 mm) | |||
Nosepiece | Quadruple Resolving(optional: Quintuple) | |||
Objective | Achromatic 4X, 10X, 40X, 100X(optional:20X, 60X, Semi-Plan Achromatic 4X, 10X, 20X, 40X, 60X, 100X, Plan Achromatic 4X, 10X, 20X, 40X, 60X, 100X) | |||
Stage | Double Layer Mechanical Stage 140×140mm/ 75×50 mm(optional: Left-hand operation Double Layer Mechanical Stage) | |||
Light Source | 1W S-LED(optional:/20W Halogen light) | |||
Condensers | Abbe NA 1.25 with Iris Diaphragm | |||
Mirror | Plan-concave Mirror | |||
Filter | Yes | |||
Optional Accessories | Dust cover, immersion oil, Polarization Set, Phase Contrast Kit, Dark Field Attachment, Fluorescent Attachment | |||
Packing Dimension | 330×280×440 mm | |||
Packing Weight | 7 kg | |||
Electrical Requirement | Rechargeable battery (only for LED illumination) | |||
Catalogue No. | 4405005-04 | 4405010-04 | 4405015-04 | 4405020-04 |
| Model | IMB-3209 | IMB-3218 | IMB-3227 | IMB-3236 |
| Type | Biological Microscope | |||
| Viewing Head | Monocular Head at 45°, 360° Rotatable | Sliding Binocular Head at 45°, 360°; In d: 55-75mm(optional: Id: 48-75mm) | Sliding Trinocular Head, at 45 º and 360 º Rotatable, Id:55-75mm | Sliding Binocular Head with 1.3MP digital camera, at 45°, 360° Id:55-75mm. |
| Focusing | Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 28mm | |||
| Eyepiece | WF10X18 mm(optional:WF16X 11 mm) | |||
| Nosepiece | Quadruple Resolving(optional: Quintuple) | |||
| Objective | Achromatic 4X, 10X, 40X, 100X(optional:20X, 60X, Semi-Plan Achromatic 4X, 10X, 20X, 40X, 60X, 100X, Plan Achromatic 4X, 10X, 20X, 40X, 60X, 100X) | |||
| Stage | Double Layer Mechanical Stage 140×140mm/ 75×50 mm(optional: Left hand operation Double Layer Mechanical Stage) | |||
| Light Source | 1W S-LED(optional:/20W Halogen light) | |||
| Condensers | Abbe NA 1.25 with Iris Diaphragm | |||
| Mirror | Plan-concave Mirror | |||
| Filter | Yes | |||
| Optional Accessories | Dust cover, immersion oil, Polarization Set, Phase Contrast Kit, Dark Field Attachment, Fluorescent Attachment | |||
| Packing Dimension | 330×280×440 mm | |||
| Packing Weight | 7 kg | |||
| Electrical Requirement | Rechargeable battery (only for LED illumination) | |||
| Catalogue No. | 4405005-04 | 4405010-04 | 4405015-04 | 4405020-04 |
