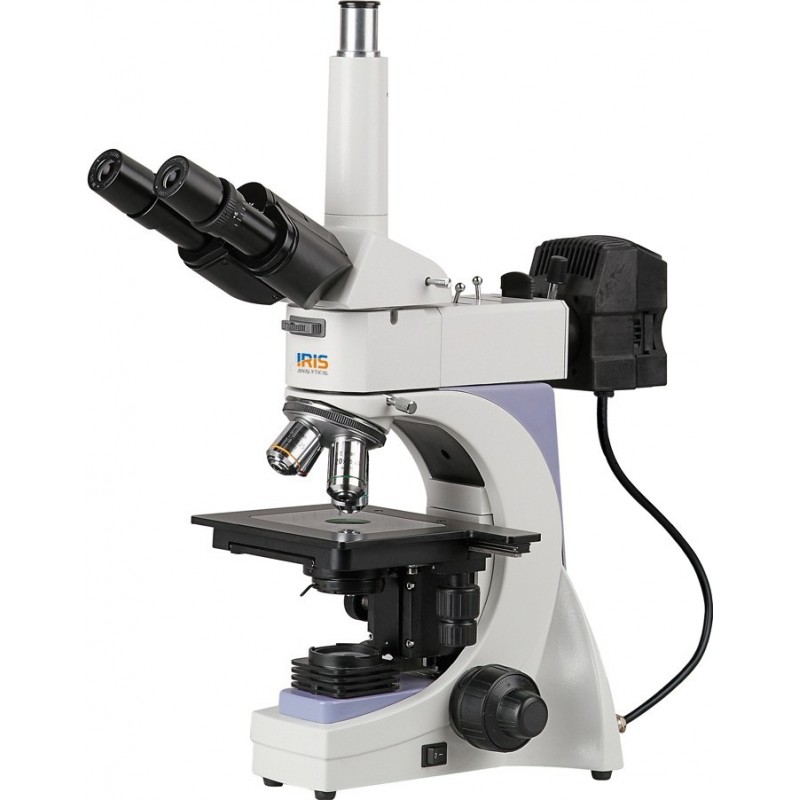

Laboratory Metallurgical Microscope IMM-1188 is a part of the range of laboratory microscope and stands out through its design which is ergonomic, vigorous and constant and stable. This laboratory microscope is used to view samples that will fit on the microscope stage. This range, with its large working distance with infinite plan achromatic: 4X/0.1/∞/-17.3 mm, 10X/0.25/∞/-10.0 mm, 40X/0.60/∞/0-2.9 mm objective. Adjustable 6V/20W halogen lamp Koehler illumination and epi-illuminator ensures the optimum illumination of the materials to be tested. The illuminating system consists of a high-intensity light source, Abbe N.A. 1.25 condenser lenses with Iris Diaphragm. The binocular and trinocular viewing head with wild field WF10X18 mm eyepieces fitted with 48-75mm interpupilary distance as standard. Blue, Green, Yellow and Ground filters are often used to recover detail and polarizing filters, to produce surface glare and to recover grain boundary definition.
Sample Images
Data sheet
| Model | IMM-1144 | IMM-1188 |
| Type | Laboratory Metallurgical Microscope | |
| Viewing Head | Binocular head, inclined at 30°, 360° rotatable, interpupillary distance 48-75mm | Trinocular head, inclined at 30°, 360° rotatable, interpupillary distance 48-75mm |
| Optical System | Infinite | |
| Focusing | Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Range 20mm | |
| Eyepiece | WF10X18mm (optional: WF8X18mm, WF10X18mm with 0.1mm micrometer and cross hair WF12.5X15mm) | |
| Nosepiece | Quadruple | |
| Objective | Infinite Plan Achromatic : 4X/0.1/?/- 17.3mm, 10X/0.25/?/- 10.0mm, 40X/0.60/?/0-2.9mm(optional: 5X/0.12/?/-15.5mm, 20X/0.40/?/0 - 5.8mm, 40X/0.65/?/0-0.52mm, 50X/0.75/?/0- 0.32mm, 80X/0.90/?/0- 0.2mm, 100X/0.80/?/0 - 2mm | |
| Stage | Double layer mechanical stage 150×140mm, moving range 75×50mm | |
| Light Source | 6V/20W Halogen lamp Kohler Illumination, Epi-illuminator (OPTIONAL: 3W LEDKohler Illumination, Epi-illuminator) | |
| Polarizing Unit | OPTIONAL | |
| Analyzing Unit | ||
| Filter | Blue, Green, Yellow and Ground filters | |
| Certification |
|
|
| Optional Accessories | Specimen Presser For metallurgical specimen preparation; Polarizer and Analyzer; Photo and Video Adapter | |
| Packing Dimension |
|
|
| Packing Weight |
|
|
| Electrical Requirement |
|
|
| Catalogue No. | 440250-05-04 | 440250-10-04 |
