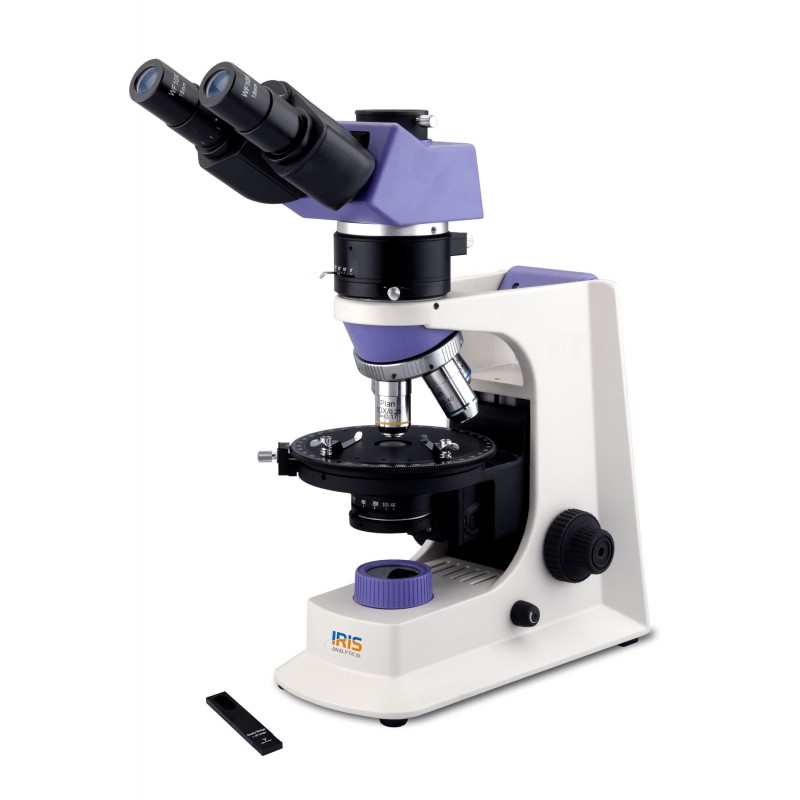

Polarizing Microscope IMP-1102 is equipped with a high degree of sensitivity and best suited for anisotropic (mineral) specimens such as geology, minerals, metallurgy, university teaching laboratories, and other sectors. Built-in bertrand lens, polarizer and analyzer, 360° rotatable round stage, filter, condenser, etc.
The binocular and trinocular viewing head with wild field eyepieces and has excellent strain-free infinite plan: 4X, 10X, 20X(S), 40X(S) with optional choice 60X(S) objectives, and each eye tube has interpupilary adjustment. This series is capable of providing strong images with a broad field of view, the multipurpose and perfect for basic studies of samples properties. Come with 6V/20W halogen lamp lights, allowing samples to be illuminated for a more comprehensive field of view. Accomplished with the help of particular devices known as retardation plates and optical compensators. First order retardation plate is used in optical path differences ranging from a fraction of a wavelength up to several wavelengths. This flexible and multipurpose tool is known by different names, comprising a red plate, red-one plate, lambda (λ) plate, gypsum plate, selenite plate, sensitive violet, or simply a color tint plate and quartz wedge plate is a simple, semi-quantitative optical compensator used to examine optical path differences in a wide range of samples by the quartz wedge. Built in a crystalline block of quartz provide parallel or perpendicular optical axis to the edge of the birefringent crystal.
Sample Images
Data sheet
| Model | IMP-1101 | IMP-1102 |
| Type | Polarizing Microscope | |
| Viewing Head | Binocular Head, Inclined 30°, Rotatable 360°, Interpupilary Distance: 48-75mm. | Trinocular Head, Inclined 30°, Rotatable 360°, Interpupilary Distance: 48-75mm. Light Distribution: 20:80 |
| Optical System | Color Corrected Infinite | |
| Focusing | Coaxial Coarse & Fine Focusing knobs, Travel Range: 26mm, Scale:2um | |
| Eyepiece | WF 10X18 mm, WF 10X18 mm (Reticule 0.1mm) | |
| Nosepiece | Adjustable Quadruple | |
| Objective | Strain-free Infinite Plan: 4X,10X, 20X(S), 40X(S)(optional:60X(S)) | |
| Stage | 360° Rotatable Round Stage, Center Adjustable, Division 1°, Vernier division 6, can be locked, stage diameter 146mm (optional: Polarizing Attached Mechanical Stage) | |
| Light Source | 6V/20W Halogen Lamp(optional: 6V/30W Halogen Lamp) | |
| Polarizing Unit | With Scale Rotatable 360°, Can Be Locked, It can be moved out of the optical path | |
| Analyzing Unit | 0-90°, it can be moved out of the optical path for single polarizing observe | |
| Optical Compensator | gypsum ? Slip, First Class Red, 1/4? Slip, (?-? Class) Quartz Wedge | |
| Lens | Bertrand Lens | |
| Condenser | Abbe N.A. 1.25 Strain-free condenser | |
| Filter | Blue(optional:Amber,Green,Neutral) filters | |
| Certification |
|
|
| Optional Accessories | C-mount, Filter | |
| Packing Dimension | 570x2750x450 mm | |
| Packing Weight | 8.6 kg | |
| Electrical Requirement |
|
|
| Catalogue No. | 440215-05-04 | 440215-10-04 |
