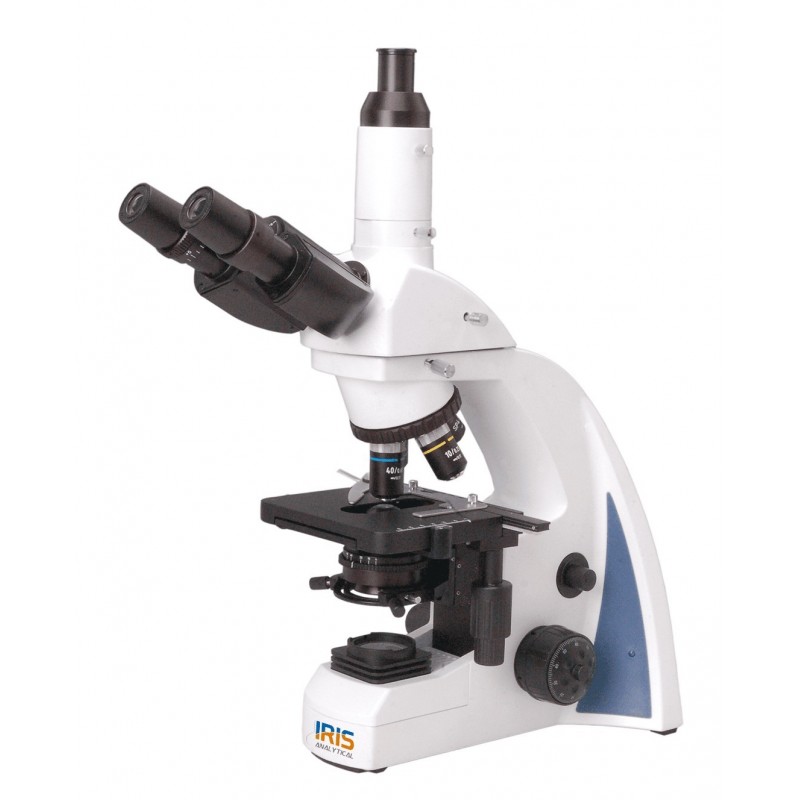

Research Microscope IMB-4360 is ideal for biological, pathological, histological, bacterial, immune, pharmacological and genetic fields. They can be widely used in medical and sanitary establishments, such as hospitals, clinics, laboratories, medical academies, colleges, universities and related research centers.
Research Microscope IMB-4360 is ideal for biological, pathological, histological, bacterial, immune, pharmacological and genetic fields. They can be widely used in medical and sanitary establishments, such as hospitals, clinics, laboratories, medical academies, colleges, universities and related research centers.
The 1W S-LED Illumination with consistent color temperature, achromatic objective to ensure high image flatness across the field, single lens and ABBE Condenser with iris diaphragm and backward quadruple revolving nosepiece. This series of microscopes allow handlers to remain relaxed during long periods of routine microscopy observations. The microscope frame adapts the handler’s hands and the location of the control knobs maximizes ergonomics to recover work efficiency. Fast and rapid set a specimen with one hand while adjusting the focus and operating the stage with the other hand with slight movement. The binocular, trinocular viewing head has Infinite Semi-plan Achromatic 4x, 10x, 40x, 100 x objectives and each eye tube has interpupillary adjustment. Designed with blue, yellow and green filters. Features with backward quadruple revolving nosepiece holds multiple lenses, and found between the eyepiece and the stage allowing the user to turn it to achieve various levels of magnification. Though the exact level of magnification may vary with different models, most microscopes provide a low power lens with about 5X magnification and a high power lens with about 100X magnification. Featured with chromatic condenser Abbe NA 1.25 with sliding-in centerable condensers that are concentrates and controls the light that passes through the specimen prior to entering the objective with modern cameras use a type of adjustable diaphragm known as an iris diaphragm which can reduce the amount light that hits a detector by decreasing the aperture and Filter.
Sample Images
Data sheet
Technical Specifications
Model | IMB-4330 | IMB-4360 | IMB-4390 |
Type | Biological Microscope | ||
Viewing Head | binocular head, 30° inclined, Interpupillary 48-75mm | trinocular head, 30° inclined, Interpupillary 48-75mm | Binocular Head, Inclined at 30°, Interpupillary Distance 48-75mm |
Optical System | Infinite | ||
Digital System | - | 3.0MP digital camera with Image 9.0 Software | |
Focusing | Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm | ||
Eyepiece | WF 10×/18mm (optional: EW10X20 with Diopter Adjustment) | ||
Nosepiece | Backward Quadruple(optional: Backward Quintuple ) | ||
Objective | Infinite Semi-plan Achromatic : 4X, 10X, 40X, 100X(optional: Infinite Plan Achromatic Objectives 2X, 4X, 10X, 20X, 40X, 60X, 100X) | ||
Stage | Double Layers Mechanical Stage 140×140 mm/ 75×50 mm(optional) | ||
Light Source | 1W S-LED Lamp(optional: 6V/20W Halogen Lamp) | ||
Condenser | Sliding-in Centerable Condenser NA1.25 | ||
Optional Accessories | Dark Field Attachment, Phase Contrast Kit, YX-2 Epi-fluorescent Attachment, FL-LED Epi-fluorescent Attachment | ||
Packing Dimension | 350x3550x5550 mm | ||
Packing Weight | GW-12 kg | ||
Electrical Requirement |
|
|
|
Catalogue No. | 4407505-04 | 4407510-04 | 4407515-04 |
| Model | IMB-4330 | IMB-4360 | IMB-4390 |
| Type | Biological Microscope | ||
| Viewing Head | binocular head, 30° inclined, Interpupillary 48-75mm | trinocular head, 30° inclined, Interpupillary 48-75mm | Binocular Head, Inclined at 30°, Interpupillary Distance 48-75mm |
| Optical System | Infinite | ||
| Digital System | - | 3.0MP digital camera with Image 9.0 Software | |
| Focusing | Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm | ||
| Eyepiece | WF 10×/18mm (optional: EW10X20 with Diopter Adjustment) | ||
| Nosepiece | Backward Quadruple(optional: Backward Quintuple ) | ||
| Objective | Infinite Semi-plan Achromatic : 4X, 10X, 40X, 100X(optional: Infinite Plan Achromatic Objectives 2X, 4X, 10X, 20X, 40X, 60X, 100X) | ||
| Stage | Double Layers Mechanical Stage 140×140 mm/ 75×50 mm(optional) | ||
| Light Source | 1W S-LED Lamp(optional: 6V/20W Halogen Lamp) | ||
| Condenser | Sliding-in Centerable Condenser NA1.25 | ||
| Certification |
|
|
|
| Optional Accessories | Dark Field Attachment, Phase Contrast Kit, YX-2 Epi-fluorescent Attachment, FL-LED Epi-fluorescent Attachment | ||
| Packing Dimension | 350x3550x5550 mm | ||
| Packing Weight | GW-12 kg | ||
| Electrical Requirement |
|
|
|
| Catalogue No. | 4407505-04 | 4407510-04 | 4407515-04 |
