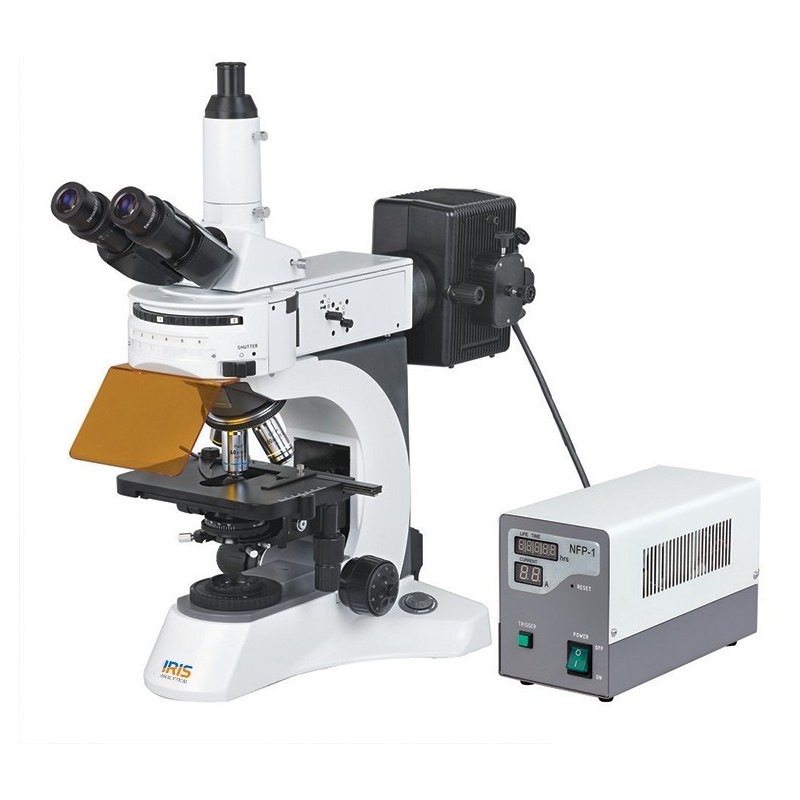

Upright Fluorescence Microscope IMF-2100 is used to study the absorbing, transportation, chemicals distribution and positioning in cells. It is widely used in disease examination, immune diagnosis and life science areas. 6V/30W Halogen Lamp Kohler Illumination with consistent color temperature, achromatic objective to ensure high image flatness across the field, single lens and ABBE Condenser with iris diaphragm and Quintuple along with choice offer reversed sextuple nosepiece. The Trinocular viewing head has excellent Infinite Plan Achromatic:4X/0.10,17.3 mm, 10X/0.25,10 mm, 40X/0.65(S),0.54 mm, 100X/1.25(S,Oil), 0.13 mm and optional:20X/0.40,5.1 mm; Infinite Plan Fluorescent: 4X/0.13, 10X/0.30, 20X/0.50, 40X/0.75(S), 100X/1.3(S,Oil), objectives and each eye tube has interpupillary adjustment. Designed with Neutral ND25/ ND6 filters as optional accessories. Provide tremendous fluorescent image with high resolution fluorescent objectives including infinite Plan Fluorescent, Infinite Plan Achromatic objective, and backward quintuple nosepiece. Designed with 100W HBO Ultra Hi-voltage Spherical Mercury, 6V/30W Halogen Lamp Kohler Illumination fluorescents lamp. Advantage of HBO mercury lamp: various spectral peaks, incoherent source, reasonable price, and compact light emitting surface. Equipped with excitation filter for incoming light and emitted filters for emitted light and dichroic mirror to reflect the excitation light to the sample and instantaneously transmit only the emitted light from the sample back to the detector.
Sample Images
Accessories
Epi-fluorescent Attachment
Data sheet
| Model | IMF-2100 |
| Type | Upright Fluorescence Microscope |
| Viewing Head | Trinocular Head, Inclined at 30°, Interpupillary Distance 48-75mm |
| Fluorescent |
|
| Reflected Light Source | Blue: 460 to 490 nm excitation,500 Dichroic Mirror, 520 Barrier Filter; Green: 480 to 550 nm excitation,570 Dichroic Mirror, 590 Barrier Filter(optional: Blue(B1): 460 to 495 nm excitation,505 Dichroic Mirror, 510 to 550 Barrier Filter;UV:330 to385 excitation,400 Dichroic Mirror, 420 Barrier Filter; V: 400 to 410 nm excitation,455 Dichroic Mirror, 455 Barrier Filter; Red: 620 to 650 nm excitation,660 Dichroic Mirror, 670 to 750 Barrier Filter) |
| Optical System | Infinite |
| Focusing | Coaxial Coarse and Fine Adjustment, Fine Division 0.001mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.1mm per Rotation, Moving Range 24mm |
| Eyepiece | Extra Wide Field Eyepiece EW10×/22mm, Eyepiece tube diameter 30mm |
| Nosepiece | Backward Quintuple(optional: Backward Sextuple) |
| Objective | Infinite Plan Achromatic: 4×/0.10,17.3mm, 10×/0.25,10mm, 40×/0.65(S),0.54mm, 100×/1.25(S, Oil), 0.13mm(optional: 20×/0.40, 5.1mm; Infinite Plan Fluorescent: 4×/0.13, 10×/0.30,20×/0.50,40×/0.75(S),100×/1.3(S, Oil), |
| Stage | Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm |
| Light Source | 6V/30W Halogen Lamp Kohler Illumination(optional:24V/100WHalogen Lamp Kohler; 3W/5WLED) |
| Condenser | Swing Condenser NA 0.9/ 0.25 |
| Filter | Neutral ND25/ ND6 Filter(optional) |
| Certification |
|
| Accessories | 100W HBO Ultra Hi-voltage Spherical Mercury Lamp, Barrier to Resist the Ultraviolet Light, Power Supplier NFP-1, 220V/ 110V Voltage Interchangeable, Digital Display, Fluorescent Free Oil, |
| Optional Accessories | Photo and Video Adapter, filters |
| Packing Dimension |
|
| Packing Weight |
|
| Electrical Requirement |
|
| Catalogue No. | 440115-05-04 |
