Blood Bank Refrigerator IUBR-2208
Blood Bank Refrigerator IUBR-2208 equipped with an advanced automatic defrost sensor to manage the defrost cycle with capacities of 12/132 blood bags with volumes of 450 ml.

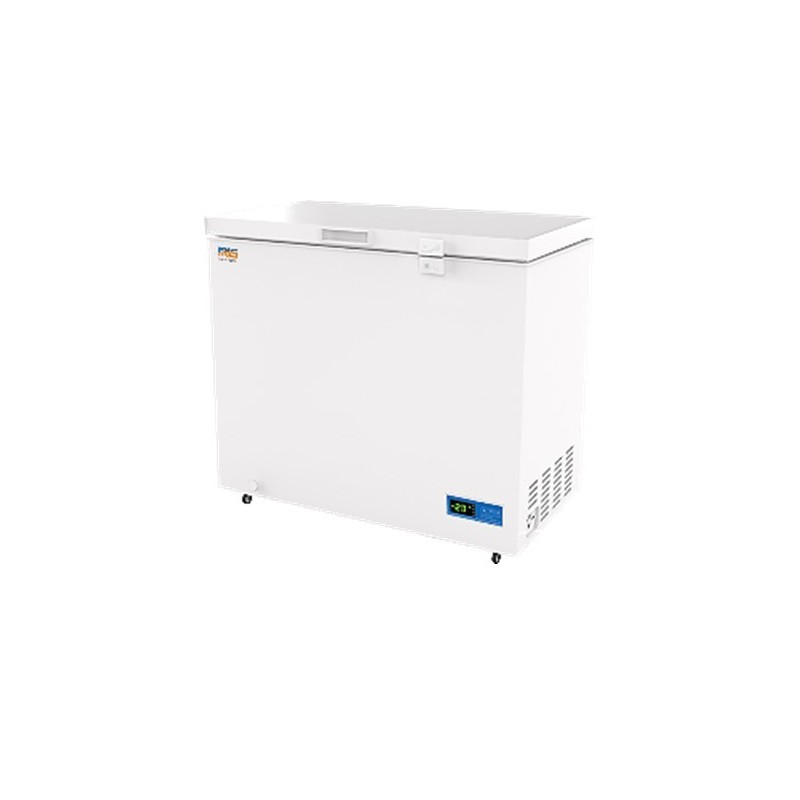

Chest Type Medical Freezers -25℃ ICMF-126 is a horizontal box-shaped freezer with a lid on the top. Compatible with CFC-free polyurethane foam technology and insulating door for better effect of thermal insulation. Available in 3 different mass with maximum capacities about 226 L.
Chest Type Medical Freezers -25℃ ICMF-126 is a horizontal box-shaped freezer with a lid on the top. Compatible with CFC-free polyurethane foam technology and insulating door for better effect of thermal insulation. Available in 3 different mass with maximum capacities about 226 L.
Suitable for laboratory and medical application and best for storage of special materials, blood plasma, and vaccine and biological products. Provide battery-based alarm system for audible and visual alarm signal during electrical failure or short circuit. The alarm has an over and under temperature setting, alarm silencing switch, and battery test switch. The construction chamber is PCM internal and cold rolled steel plate with spraying external finish.
Data sheet
| Model | ICMF-126 | ICMF-158 | ICMF-108 | |||
| Capacity | 226 L | 358 L | 508 L | |||
| Temperature Range | -10 to -25 | |||||
| Materials | Internal: PCM, External: Cold rolled steel plate with spraying | |||||
| Alarms | Visual & Audio;High/low temperature alarm, senor error alarm, | |||||
| Cooling | Direct cooling | |||||
| Class | N | |||||
| Type | Chest | |||||
| Display | Digital display | |||||
| Refrigerant | R290a | |||||
| Evaporator | D-form copper tube | |||||
| Casters | 4 | |||||
| Compressor | 1 pc | |||||
| Motor | Fan Motor: EBM | |||||
| Interface | Standard USB | |||||
| Accuracy | 0.1? | |||||
| Ambient Temperature | 16 to 32°C | |||||
| Certification |
|
|
| |||
| Power Consumption | 150 W | 121 W | 300 W | |||
| Internal Dimension | 954×410×703 mm | 1200×545×673 mm | 1504×545×673 mm | |||
| External Dimension | 1115×610×890 mm | 1350×735×880 mm | 1650×735×880 mm | |||
| Net Weight | 65 kg | 70 kg | 70 kg | |||
| Electrical Requirement | 220V/50Hz | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz | 110V/60Hz |
| Catalogue No. | 500250502 | 500250501 | 500251002 | 500251001 | 500251502 | 500251501 |
Blood Bank Refrigerator IUBR-2208 equipped with an advanced automatic defrost sensor to manage the defrost cycle with capacities of 12/132 blood bags with volumes of 450 ml.
Ultra-Low Upright Freezers -86℃ IUUF-4220D design withdual system: one for breaks down, the other system for continue working to get temperature -80°C. The available capacity 588 L with temperature range of -40°C to -85°C by offering excellent temperature uniformity and stability.
Chest Type Medical Freezers -25℃ ICMF-210 design for a large amount of freezer storage, the available maximum capacities are 105 L with a temperature range of -10°C to -25°C by offering excellent temperature uniformity and stability.
Ultra-Low Chest Freezers -164℃ IUCF-5128 build-in foaming technology, and VIP insulation which greatly improves the insulation effect, VIP vacuum insulation board, tightly locks the cold air to ensure the great insulation effect.
Upright Biomedical Freezers -25℃ IUMF-100 is a single door upright freezer with high energy and temperature precision technology available with maximum capacity up to 270L.
Double Door Blood Bank Refrigerator IUBR-4658 is engineered for precise temperature control with a range including 20 to 24℃ when plugged into the power source with a maximum capacity of 658 L, and defrost automatically and blood
Ultra-Low Upright Freezers -86℃ IUUF-3400 provide benefits to go beyond what you can see and comprise with design essentials that guarantee best performance of our products. The available capacity is 408 L with temperature range of -40°C to -85°C by offering excellent temperature uniformity and stability
Upright Pharmacy Refrigerator 2 to 8℃ IUPR-1416 with transparent door design for easy observation with temperature range 2 to 8℃, and forced air R600a and R134a refrigeration system with air cooler chiller distribution delivers cold air to different levels within each side of the storage chamber, ensuring consistent cabinet wide
Ultra-Low Chest Freezers -86℃ IUCF-2015C design for large amount of freezer storage, the available maximum capacity is 485 L with temperature range of -40°C to -85°C by offering excellent temperature uniformity and stability.
Blood Bank Refrigerator IUBR-3268 is designed with the unique needs of the blood bank environment in mind and safely store types of blood with high-quality large chamber temperature uniformity and quick recovery with a heavy-duty, air-cooled refrigeration system and AT up to 16 to 32°C, ant 5 to 35°C.
Ultra-Low Upright Freezers -86℃ IUUF-3000 suitable for blood stations, hospitals, health and epidemic prevention system, scientific research institutes, biological engineering,
Ultra-Low Upright Freezers -86℃ IUUF-4220 are same as IUUF-3000, the only difference in there temperature work under -60°C to -85°C and -40°C to -85°C. The available capacity is 588 L, with temperature range of -60°C to -85°C by offering excellent temperature uniformity and stability.
Blood Bank Refrigerator IUBR-1005 used to store blood platelet, biological reagent, and chemical products in hospitals, blood banks, R&D applications. Can record the 2 temperature range including 20 to 24°C and 2 to 40°C
Low-Temperature Chest Freezers -60℃ ILCF-1360 available with maximum capacity up to 360 L with a password protection system to prevent unwanted access.
Chest Type Medical Freezers -25℃ ICMF-108 is a horizontal box-shaped freezer with a lid on the top. Compatible with CFC-free polyurethane foam technology and insulating door for better effect of thermal insulation. Available in 3 different mass with maximum capacities about 508 L.
Blood Bank Refrigerator IUBR-3268 is designed with the unique needs of the blood bank environment in mind and safely store types of blood with high-quality large chamber temperature uniformity and quick recovery with a heavy-duty, air-cooled refrigeration system and AT up to 16 to 32°C, ant 5 to 35°C.
