Upright Biomedical Freezers -25℃ IUMF-100(220V/50Hz)
Upright Biomedical Freezers -25℃ IUMF-100 is a single door upright freezer with high energy and temperature precision technology available with maximum capacity up to 270L.
Upright Pharmacy Refrigerator 2 to 8℃ IUPR-1416 with transparent door design for easy observation with temperature range 2 to 8℃, and forced air R600a and R134a refrigeration system with air cooler chiller distribution delivers cold air to different levels within each side of the storage chamber, ensuring consistent cabinet wide

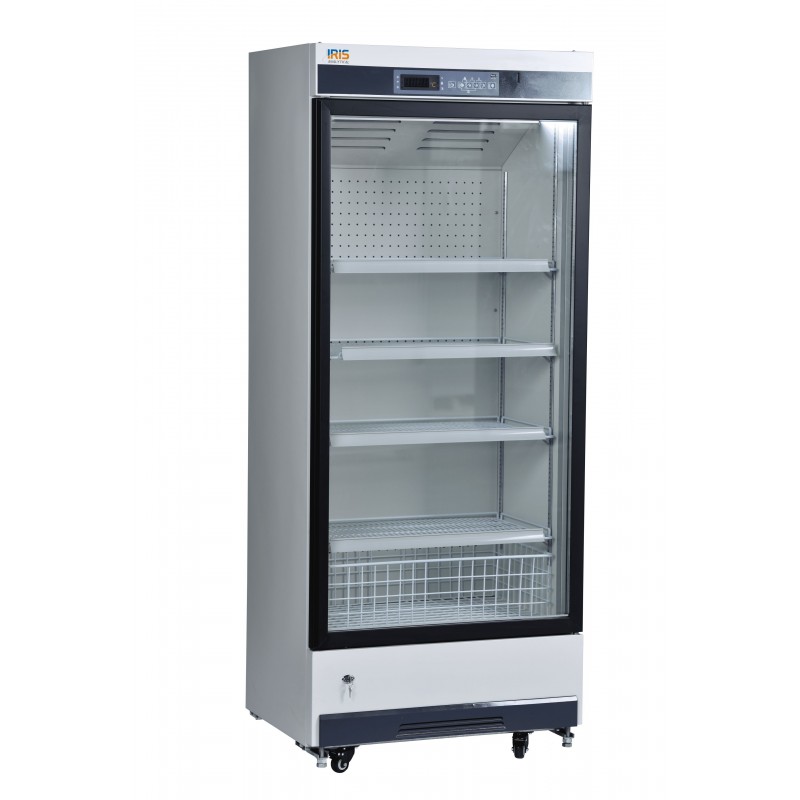

Upright Pharmacy Refrigerator 2 to 8℃ IUPR-1416 with transparent door design for easy observation with temperature range 2 to 8℃, and forced air R600a and R134a refrigeration system with air cooler chiller distribution delivers cold air to different levels within each side of the storage chamber, ensuring consistent cabinet wide cooling with adjustable shelves are adjustable to any height and to fulfill different requests.
Ergonomic design offers a clear view of stored items over large framed openings. The thin shape allows for cool recovery of your products, without the concern for swinging door clearances. Customers can choose from two types of interior shelving to suit their needs, security and safety lock to avoid unwanted access, provide storage space for easy sorting of a variety of blood products, and castes design and LED interior light.
Data sheet
| Model | IUPR-1130 | IUPR-1236 | IUPR-1306 | IUPR-1316 | IUPR-1406 | IUPR-1416 |
| Capacity | 130 L | 236 L | 306 L | 316 L | 406 L | 416 L |
| Type | 2-8? Pharmacy Refrigerator | |||||
| Cabinet Type | Upright | |||||
| Temperature Range | 2 to 8 ? | |||||
| Cooling | 5? | |||||
| Alarms | High and low temperature alarms, Sensor error alarm, Power failure alarm, Door ajar alarm | |||||
| Refrigerant | R600a | R134a | R600a | R134a | R600a | |
| Cooling Type | Forced Air Cooling | |||||
| Defrosting | Auto |
|
|
|
|
|
| Ambient Temp. |
|
| 10 to 32? |
| 10 to 32? |
|
| Humidity | <60? | |||||
| Certification |
|
|
|
|
|
|
| Power Consumption | 150 W | 150 W | 220 W | 220 W | 230 W | 190 W |
| Internal Dimension | 418×390×761 mm | 500×420×1090 mm | 540×425×1380 mm | 540×425×1380 mm | 685×425×1380 mm | 685×429×1380 mm |
| External Dimension | 500×503×1292 mm | 580×560×1785 mm | 640×580×1920 mm | 640×582×1880 mm | 780×580×1920 mm | 780×580×1920 mm |
| Net Weight | 53 kg | 63 kg | 95 kg | 92.5 kg | 115 kg | 120 kg |
| Gross Weight | 57 kg | 65 kg | 110 kg | 100 kg | 128 kg | 133 kg |
| Electrical Requirement | 220V/50Hz | |||||
| Catalogue No. | 500350502 | 500351002 | 500351502 | 500352002 | 500352502 | 500353002 |
