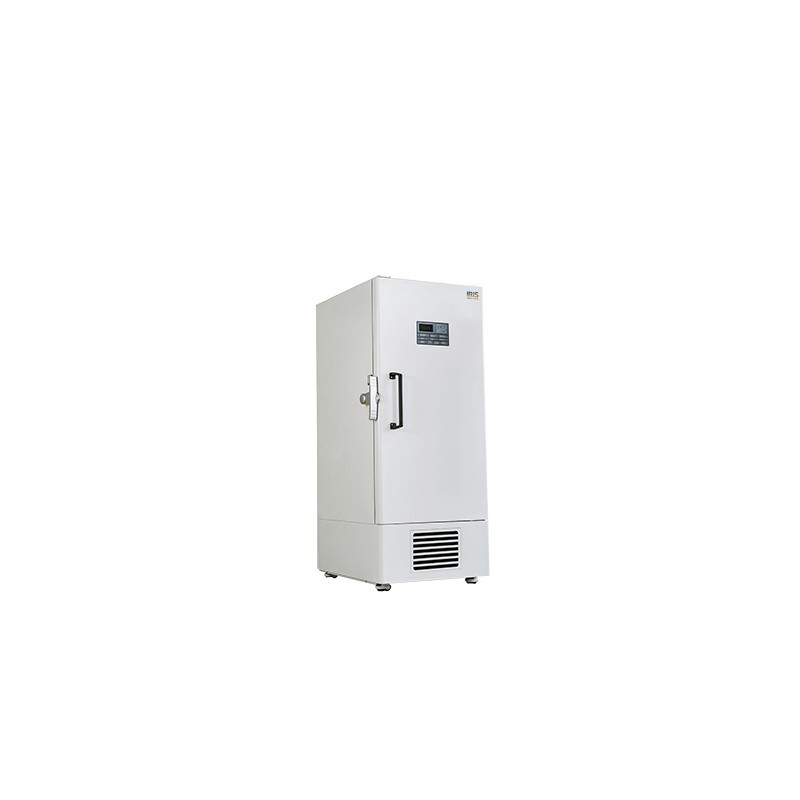

Ultra-Low Upright Freezers -86℃ IUUF-3500 provide benefits to go beyond what you can see and comprise with design essentials that guarantee best performance of our products. The available capacity is 588 L with temperature range of -40°C to -85°C by offering excellent temperature uniformity and stability
Ultra-Low Upright Freezers -86℃ IUUF-3500 provide benefits to go beyond what you can see and comprise with design essentials that guarantee best performance of our products. The available capacity is 588 L with temperature range of -40°C to -85°C by offering excellent temperature uniformity and stability.
Build-in inner door to avoid more cooling leaking out, and provide more stable inside temperature performance and complete temperature alarm system featuring. Used to stores vaccines, blood plasma, and many other biological products. Features with cooling fan for instrument safety, durability and endurance purpose. The range of upright biomedical freezers storage products will permit you to choose the perfect match to meet your requirements through cost and energy saving.
Optional Accessories
Data sheet
| Model | IUUF-3100 | IUUF-3200 | IUUF-3300 | IUUF-3400 | IUUF-3500 | IUUF-3600 |
| Capacity | 50 L | 188 L | 340 L | 408 L | 588 L | 838 L |
| Temperature Range | -40 to -86 | |||||
| Materials | Inner : Stainless steel; Outer: Color sprayed steel | |||||
| Alarms | High and low temperature alarms, Sensor error, Thermostat failure | High and low temperature alarms, power failure, Abnormal voltage,Sensor error, Filter screen check ,Thermostat failure,Low battery,Condenser clean,High ambient temperature, | ||||
| Cooling | Direct Cooling | |||||
| Class | N | |||||
| Type | Upright | |||||
| Condenser | Copper tube and finned | |||||
| Sensor | PTC | |||||
| Refrigerant | Mixed-gas | |||||
| Evaporator | Submerged coil evaporator | |||||
| Defrosting | Manual | |||||
| Shelves | Stainless steel shelf/1 | Stainless steel shelf/2 | Stainless steel shelf/3 | |||
| Casters | 4 | |||||
| Compressor | SECOP/1 | CUBIGEL/1 | SECOP/1 | Secop/1 | Secop/2 | Secop/2 |
| Temperature controller | Microprocessor | |||||
| Ambient Temperature | 10 to 32? | |||||
| Certification | ISO.CE | |||||
| Power Consumption | 450 W | 610W | 668W | 725W | 800W | 840W |
| Internal Dimension | 361x429x406 mm | 465×465×830 mm | 488×600×1140 mm | 606×575×1180 mm | 606×738×1310 mm | 894×718×1310 mm |
| External Dimension | 540x620x1115 mm | 830×810×1607.5 mm | 855×1006×1920 mm | 872×1028×1945.5 mm | 872×1060×1994.5 mm | 1170×1060×1994.5 mm |
| Net Weight | 75 kg | 145 kg | 175 kg | 215 kg | 249 kg | 275 kg |
| Gross Weight | 95 kg | 180 kg | 205 kg | 245 kg | 275 kg | 305 kg |
| Electrical Requirement | 220V/50Hz | |||||
| Catalogue No. | 500700502 | 500701002 | 500701502 | 500702002 | 500702502 | 500703002 |
