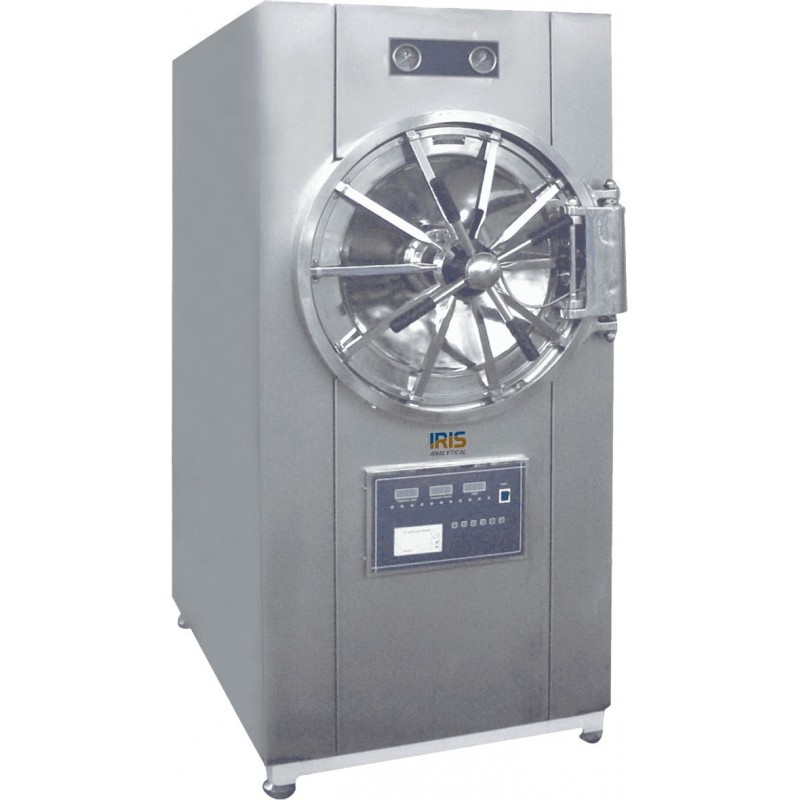

Digital Autoclave/Steam Sterilizer IHA-5300 basic 280L horizontal autoclave suitable for sterilizing heavy load and instruments for medical and laboratory use.
Comes with drying function, suitable dressing drying and features with automatic safety valve with inner pressure over 0.24 MPa and the steam exhausting to the water link. The machine has maximum sterilization pressure of 134°C with overload pressure protection. Built-in efficient steam generator, microcomputer temperature control, especially designed for bulk volume and highest flexibility in processing requirement.
Data sheet
Model | IHA-5100 | IHA-5200 | IHA-5300 |
Capacity | 150L
| 200L
| 280L
|
Chamber Size | 440×1000 mm | 515×1000 mm | 600×1000 mm |
Materials | stainless steel | ||
Working Temperature | 0.22 Mpa | ||
Working Pressure | 134°C | ||
Temperature Adjustment | 40°C - 134°C | ||
Sterilization Time Range | 0-99 min | ||
Drying Time Range | 0-99 min | ||
Heat Average | ? ±1°C | ||
Display | Digital Display | ||
Certification |
|
|
|
Power Consumption | 9KW | 9KW | 12KW |
Dimension | 1400×650×1600 mm | 1400×750×1700 mm | 1520×910×1900 mm |
Packing Dimension | 1560×820×1820 mm | 1560×910×1880 mm | 1680×1080×2100 mm |
Net Weight | 340 kg | 350 kg | 462 kg |
Gross Weight | 430 kg | 436 kg | 570 kg |
Electrical Requirement | 220V 50HZ | 380V 50HZ | |
Catalogue No. | 580900502 | 580901002 | 580901502 |
| Model | IHA-5100 | IHA-5200 | IHA-5300 |
| Capacity | 150L
| 200L
| 280L
|
| Chamber Size | 440×1000 mm | 515×1000 mm | 600×1000 mm |
| Materials | stainless steel | ||
| Working Temperature | 0.22 Mpa | ||
| Working Pressure | 134°C | ||
| Temperature Adjustment | 40°C - 134°C | ||
| Sterilization Time Range | 0-99 min | ||
| Drying Time Range | 0-99 min | ||
| Heat Average | ? ±1°C | ||
| Display | Digital Display | ||
| Certification |
|
|
|
| Power Consumption | 9KW | 9KW | 12KW |
| Dimension | 1400×650×1600 mm | 1400×750×1700 mm | 1520×910×1900 mm |
| Packing Dimension | 1560×820×1820 mm | 1560×910×1880 mm | 1680×1080×2100 mm |
| Net Weight | 340 kg | 350 kg | 462 kg |
| Gross Weight | 430 kg | 436 kg | 570 kg |
| Electrical Requirement | 220V 50HZ | 380V 50HZ | |
| Catalogue No. | 580900502 | 580901002 | 580901503 |
